Fuel Filter: Service and Repair

REMOVAL

Locking Spring Tab:

WARNING: THE FUEL SYSTEM IS UNDER A CONSTANT PRESSURE, EVEN WITH ENGINE OFF. BEFORE SERVICING THE FUEL FILTER/FUEL PRESSURE REGULATOR, THE FUEL SYSTEM PRESSURE MUST BE RELEASED.

1. Refer to Fuel System Pressure Release in the Fuel Delivery System.

The fuel filter/fuel pressure regulator is located on the top of fuel pump module. Fuel pump module removal is not necessary.
2. Raise vehicle on hoist.
3. Disconnect fuel supply line at the Filter/Regulator nipple (refer to Quick Connect Fittings).
4. Depress locking spring tab on side of Fuel/Regulator and rotate 90 ° counter-clockwise and pull out.

NOTE: Make sure that the upper and lower O-rings are on the Filter/Regulator assembly.

INSTALLATION

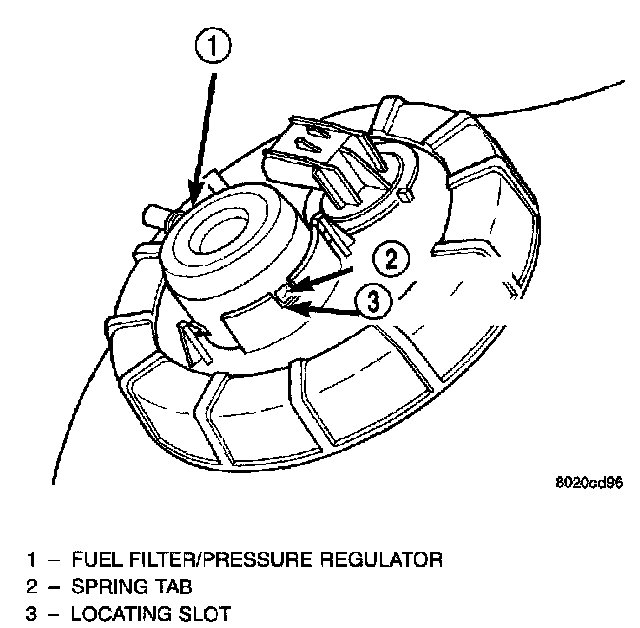

Spring Tab In Locating Slot:

Lightly lubricate the O-rings with engine oil.

1. Insert Filter/Regulator into the opening in the fuel pump module, align the two hold down tabs with the flange.
2. While applying downward pressure, rotate the Filter/Regulator clockwise until the spring tab engages the locating slot.
3. Connect the fuel line to the Filter/Regulator.
4. Lower vehicle from hoist.
