Fuel Filter: Locations

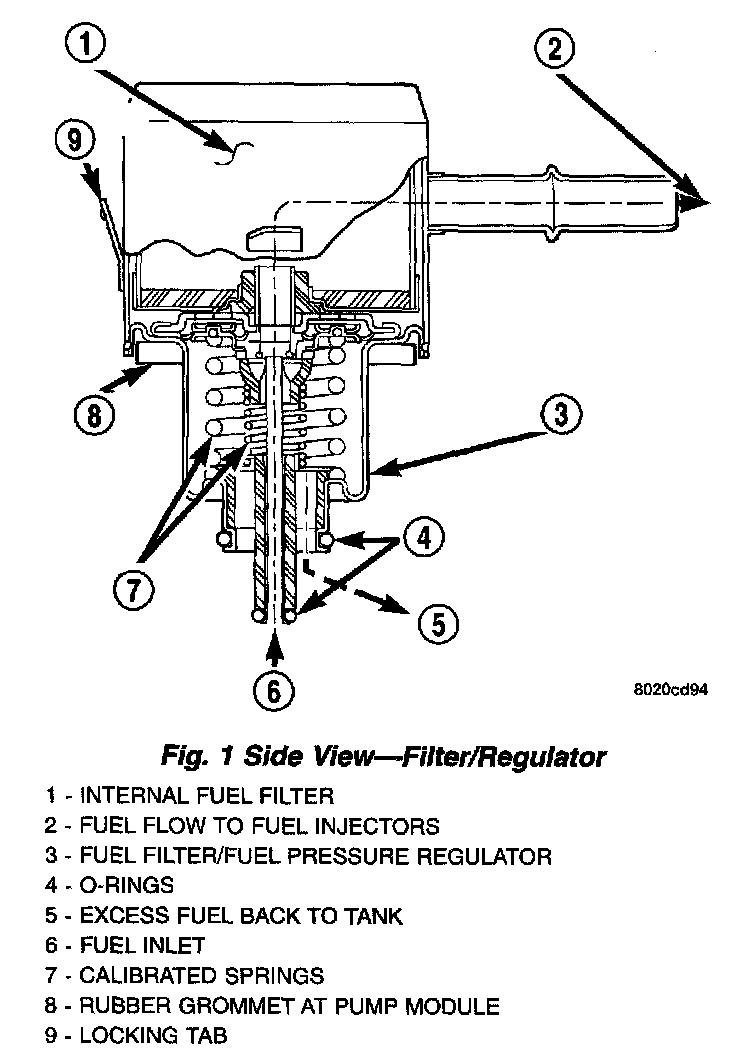

Fig. 1 Side View - Filter/Regulator:




The fuel filter/fuel pressure regulator is located on the top of fuel pump module.
