Fog/Driving Lamp Bulb: Service and Repair

REMOVAL
1. Remove nuts attaching fog lamp to fascia.
2. Disconnect wire connector from fog lamp.

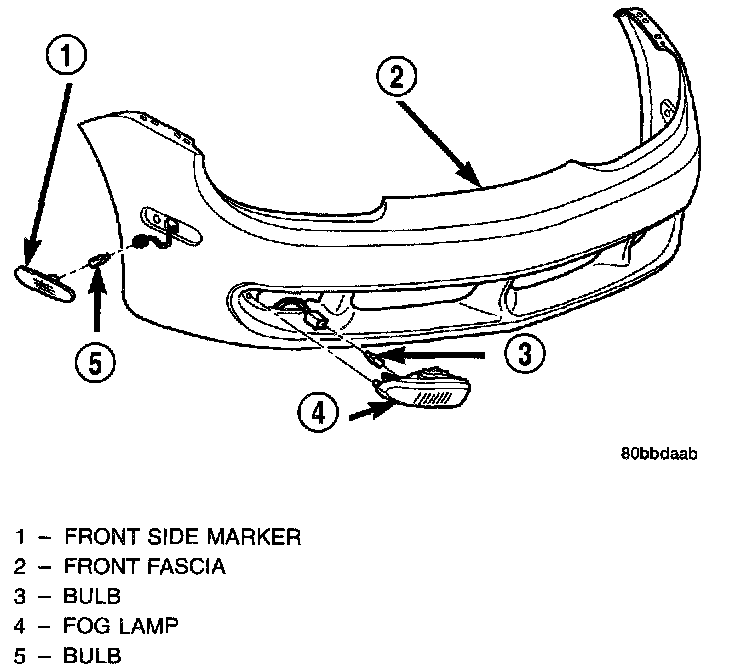

Fog Lamp:

3. Remove bulb from lamp.

INSTALLATION

CAUTION: Do not touch the glass of halogen bulbs with fingers or other possibly oily surface, reduced bulb life will result.

1. Install bulb into lamp.
2. Connect wire connector to the fog lamp.
3. Install nuts attaching fog lamp to fascia.
