Center Mounted Brake Lamp: Service and Repair

REMOVAL
1. Release deck lid latch and open deck lid.
2. Remove socket and bulb from lamp.

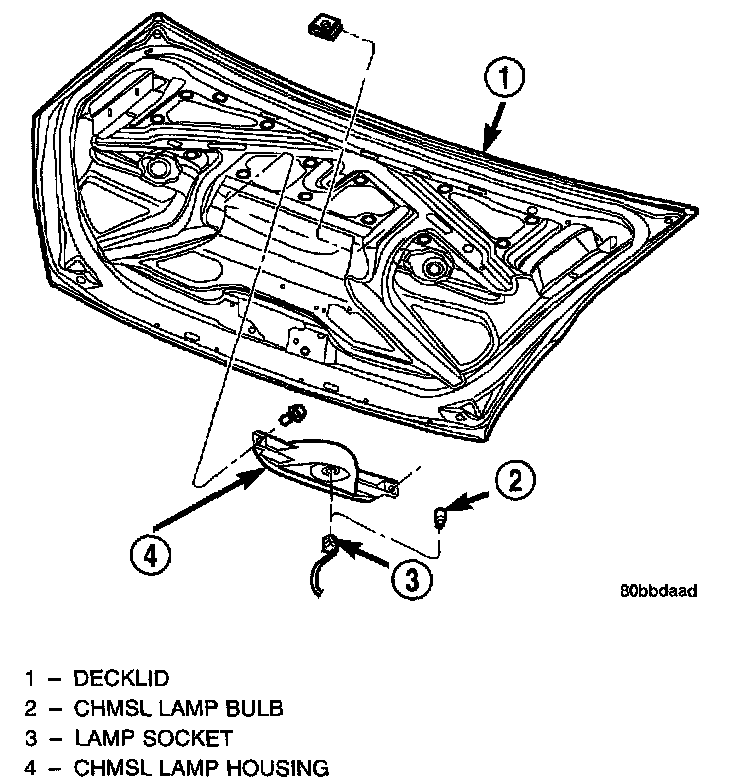

CHMSL Lamp:

3. Remove screws attaching center high mounted stop lamp to deck lid.
4. Remove CHMSL from deck lid.

INSTALLATION
1. Place CHMSL into position on deck lid.
2. Install screws attaching center high mounted stop lamp to deck lid.
3. Install socket and bulb from lamp.
4. Close deck lid.
