Brake Light Bulb: Service and Repair

Tail, Stop, Back-Up and Turn Signal Lamp Bulb Replacement

REMOVAL
1. Release deck lid latch and open deck lid.
2. Move trunk lining as necessary from rear closure panel to gain access to back of tail lamp.

Tail And Stop Lamp Bulb:

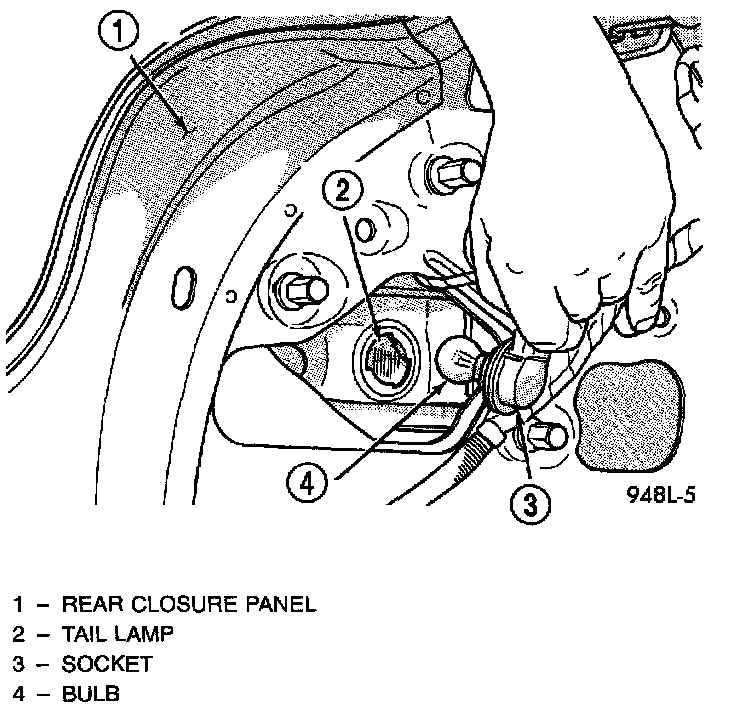

3. Remove bulb socket from tail lamp through openings in rear closure panel.
4. Pull bulb from socket.

INSTALLATION
1. Push bulb into socket.
2. Install bulb socket into tail lamp through openings in rear closure panel.
3. Reposition trunk lining to rear closure panel.
4. Close deck lid.
