Backup Lamp: Service and Repair

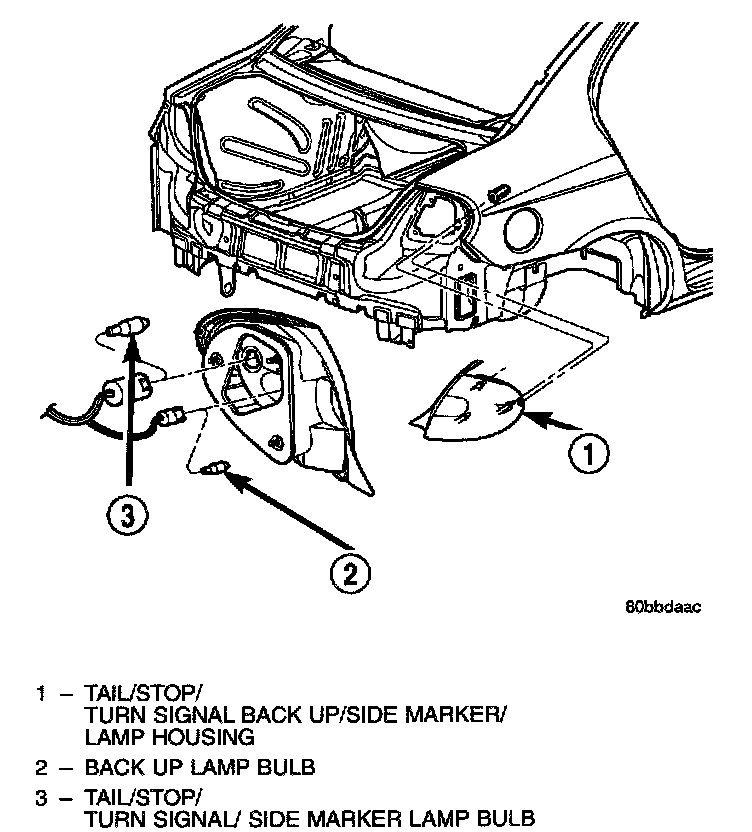

Tail, Stop and Turn Signal Lamp Replacement

REMOVAL
1. Release deck lid latch and open deck lid.
2. Move trunk lining as necessary from rear closure panel to gain access to back of tail lamp.

Tail And Stop Lamp:

3. Remove nuts attaching tail lamp to the rear closure panel.
4. Remove lamp housing from vehicle.

INSTALLATION
1. Place lamp housing into position.
2. Install nuts attaching tail lamp to the rear closure panel.
3. Reposition trunk lining to rear closure panel.
4. Close deck lid.
