Cabin Ventilation Grille: Service and Repair

AIR EXHAUSTER

REMOVAL

1. Hoist rear end of vehicle and support on safety stands.
2. From behind rear bumper fascia below quarter panel, disengage clips attaching body vent to trunk well.

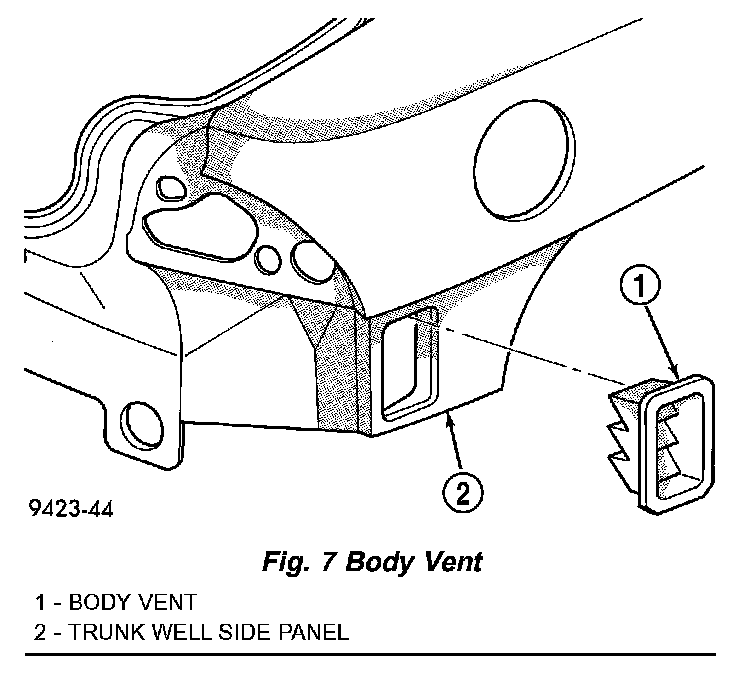

Fig. 7:

3. Remove body vent from vehicle (Fig. 7).

INSTALLATION

1. Place body vent in vehicle.
2. From behind rear bumper fascia below quarter panel, engage clips attaching body vent to trunk well.
3. Lower vehicle.
