Temperature Door Cable Replacement

The Control Cable can be removed and installed without having to remove the instrument panel from the vehicle.

REMOVAL

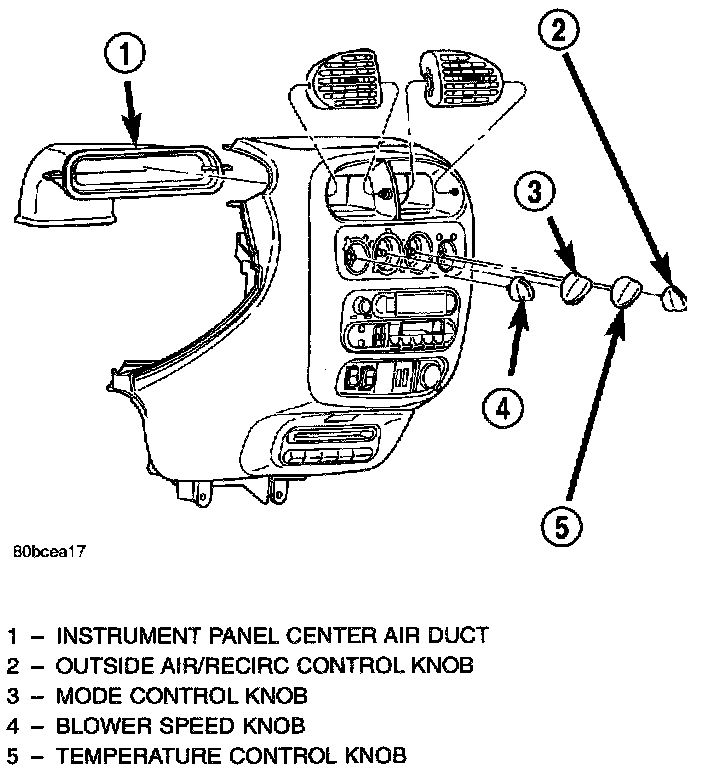

Instrument Panel Center Bezel & Knobs:

1. Remove instrument panel center stack bezel.

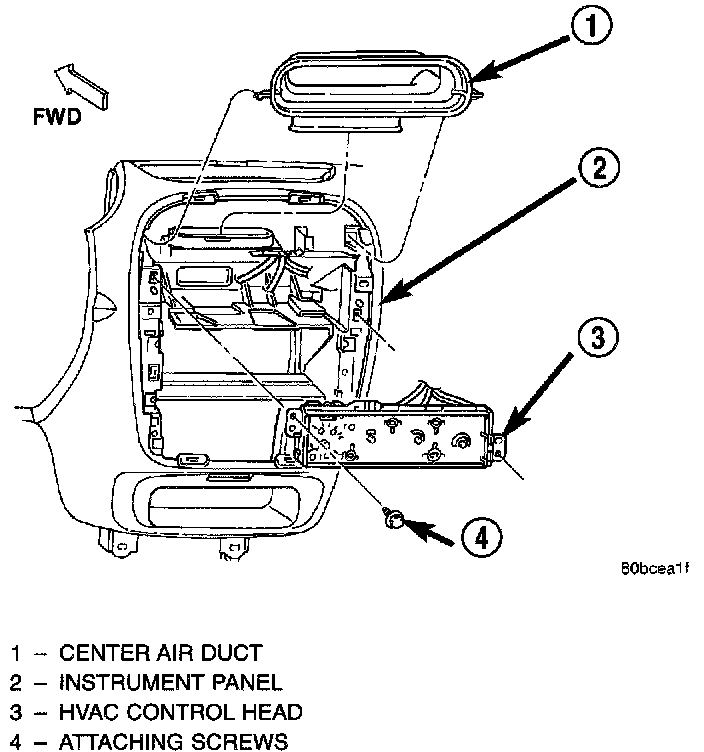

HVAC Center Air Duct & Control Head:

2. Remove heater-A/C control head.
3. Remove center air duct.
4. Disconnect cable at control panel. Remove control from instrument panel.

HVAC Housing Cables:

5. Disconnect cable at heater unit.
6. Remove cable from vehicle.

INSTALLATION
For installation, reverse the above procedures, adjust cable and test. See Temperature Control Cable Adjustment.
