Mode Control Cable Adjustment

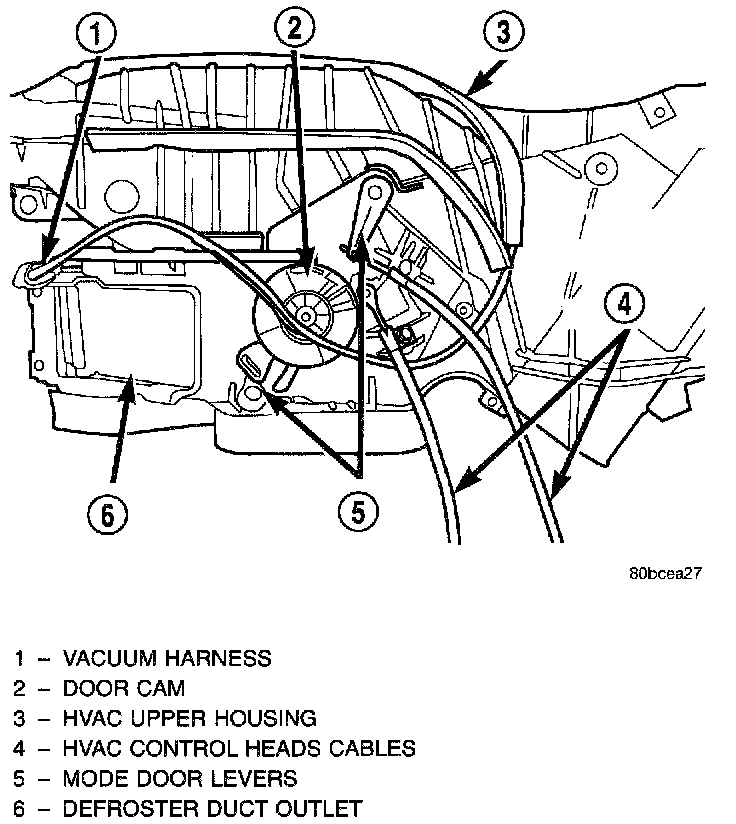

HVAC Housing Cables:

1. Engage cable to actuator arm lever on mode door and attach to housing.

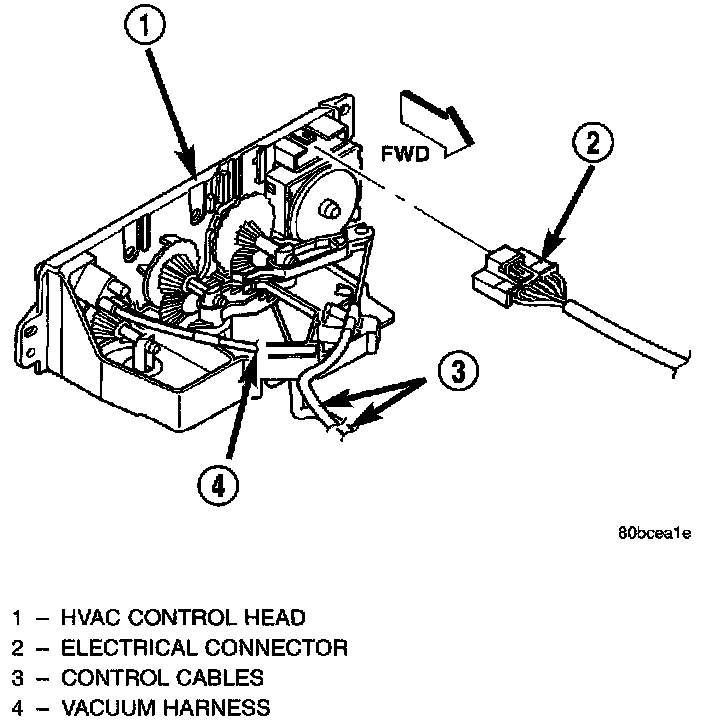

HVAC Control Head Cables:

2. Attach other end of cable to instrument panel control.
3. Turn the mode knob completely counterclockwise.
4. While holding the knob in the counterclockwise position, pull on the gray casing of the mode cable. This will take up any free play in the cable and index the mode door to the mode knob.
5. Then snap the cable hold down clip into position.
