Air Door Actuator / Motor: Service and Repair

The recirculation door actuator is a vacuum controlled actuator used to control movement of the recirculation door in air conditioned equipped vehicles.

The instrument panel must be removed from the vehicle to gain access to the recirculation door actuator.

REMOVAL
1. Remove instrument panel from vehicle.
2. Disconnect vacuum line from actuator.

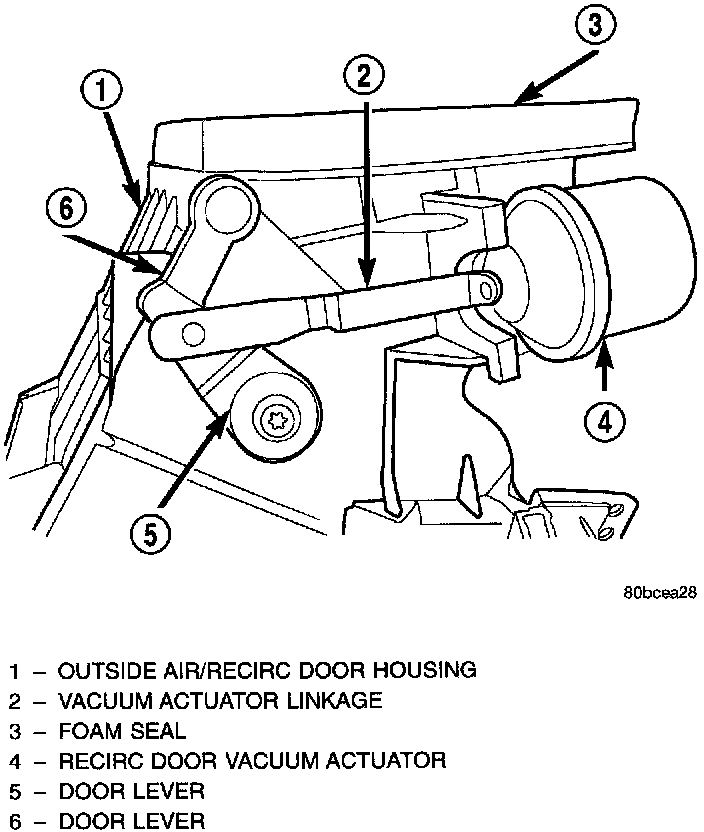

Recirculation Door Actuator And Linkage:

3. Disconnect actuator from recirculation door link.
4. Release tension on latch, and slide recirculation door actuator off housing.

INSTALLATION
For installation, reverse the above procedures.
