Right Mount
REMOVAL1. Remove accessory drive belts.
2. Remove crankshaft damper.
3. Remove upper and lower engine torque struts.
4. Support engine with a suitable jack.

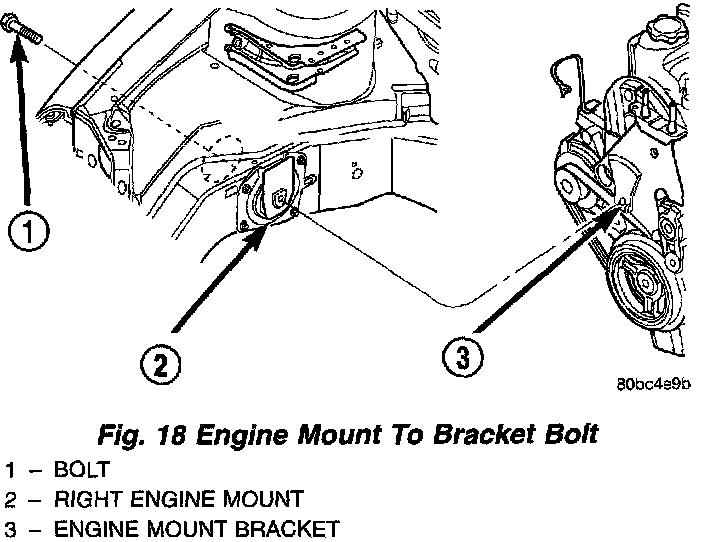

Fig. 18
5. Remove bolt access cover and bolt attaching the right engine mount to mount bracket (Fig. 18).
6. Remove engine mount bracket.
NOTE: The right engine mount attaching holes are slightly oversize to compensate for manufacturing tolerances. The mount has been set at the manufacturing plant for proper powertrain alignment. Therefore, it is necessary to mark the position of the mount before the attaching bolts are loosened.
7. Using a permanent ink marker or equivalent, mark the position of engine mount to the body frame rail.

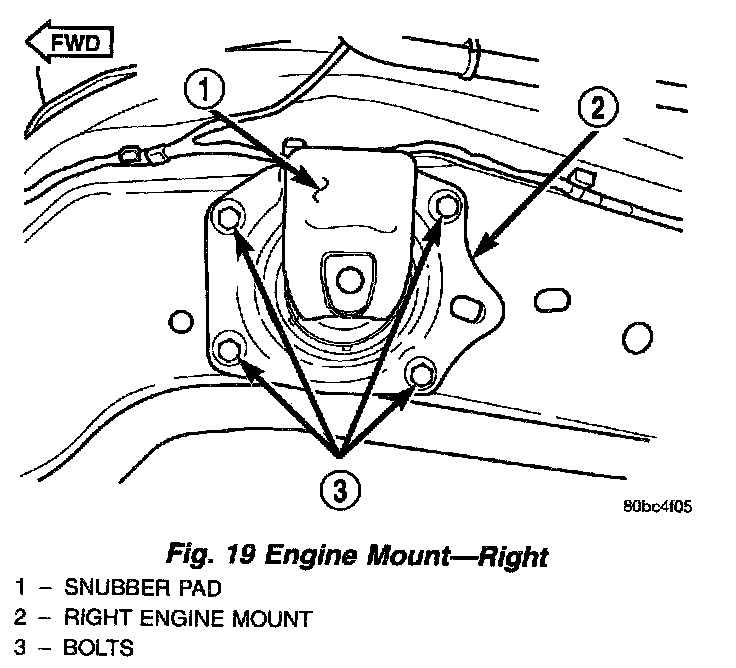

Fig. 19
8. Remove bolts attaching mount to body (Fig. 19).
9. Remove mount between engine and body frame rail. Mount removal may require engine position to be raised or lowered to allow mount removal clearance.
INSTALLATION
1. Position mount into the original position on body frame rail (Fig. 19).
NOTE: Engine mount must be installed in the original position on body frame rail. If mount was not marked or frame rail was replaced, perform the following procedure.
2. Perform the following procedure if mount position was not previously marked or the frame rail was replaced:
a. Insert new mount loosely in frame rail.
b. Align the four holes in the mount with the mating holes in the rail such that the holes are concentric (frame rail holes centered in the mount holes).
c. Using a permanent ink marker or equivalent, mark the position of engine mount to the body frame rail while maintaining mounting hole concentricity.
3. Ensure the mount maintains originally marked position and install mount bolts. Tighten bolts to 28 Nm (250 in. lbs.) (Fig. 19).
4. Install engine mount bracket.
5. Install bolt attaching right engine mount to bracket and tighten to 118 Nm (87 ft. lbs.) (Fig. 18).
6. Remove support from under engine.
7. Install upper and lower engine torque struts.
8. Install crankshaft damper.
9. Install accessory drive belts.
