Engine Mount Bracket
REMOVAL1. Remove upper and lower torque struts.
2. Remove power steering/air conditioning belt.
3. Support engine with a suitable jack.
Fig. 20
4. Remove engine mount through bolt access plug (Fig. 20)

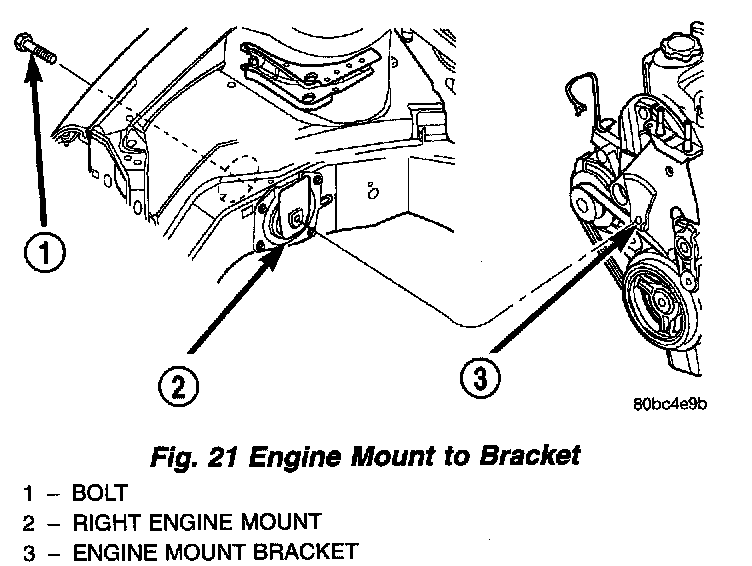

Fig. 21
5. Remove right engine mount to bracket through bolt (Fig. 21).
Fig. 22
6. Remove engine mount bracket attaching bolts (Fig. 22).
7. Bracket removal requires engine to be raised slightly to obtain engine-to-body clearance.
INSTALLATION
1. Install engine mount bracket and tighten bolts to 61 Nm (45 ft. lbs.) (Fig. 22).
2. Install bolt attaching engine mount to bracket (Fig. 21). Tighten bolt to 118 Nm (87 ft. lbs.).
3. Install mount bolt access plug (Fig. 20).
4. Remove support from under engine.
5. Install power steering/air conditioning belt.
6. Install upper and lower torque struts.
