Engine Mount: Adjustments

The upper and lower torque struts need to be adjusted together to assure proper engine positioning and engine mount loading. Whenever a torque strut bolt(s) is loosened, this procedure must be performed.





Fig. 135

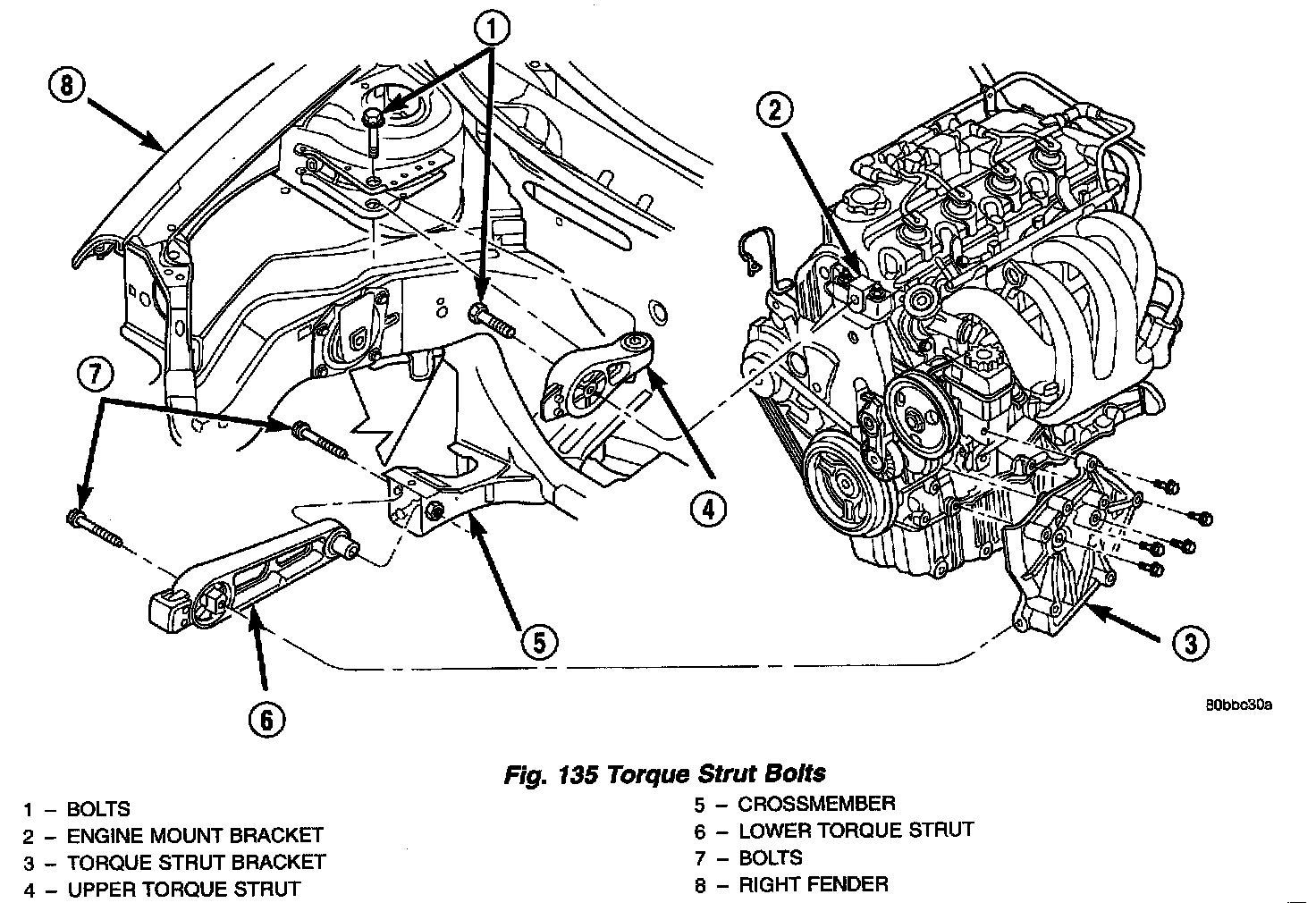

1. Loosen the upper and lower torque strut attaching bolt at the suspension crossmember and shock tower bracket (Fig. 135).





Fig. 136

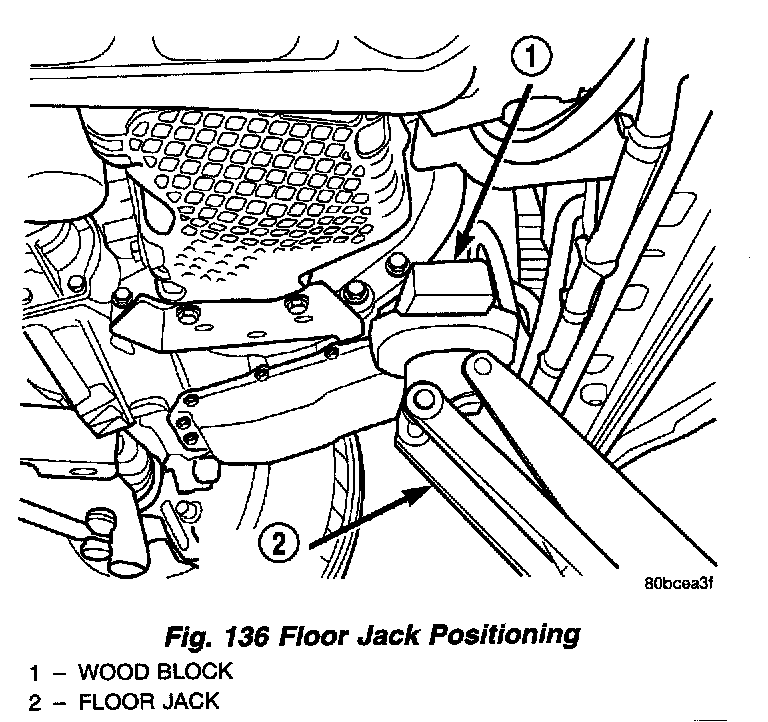

2. The engine position may now be adjusted by positioning a suitable floor jack on the forward edge of the transmission bell housing (Fig. 136).
NOTE: The floor jack must be positioned as shown in (Fig. 136) to prevent minimal upward lifting of the engine.





Fig. 137

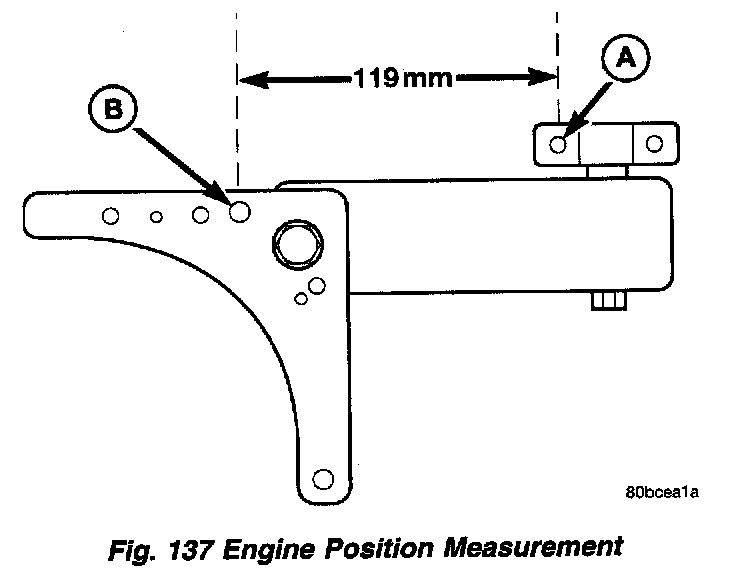

3. Carefully apply upward force, allowing the upper engine to rotate rearward until the distance between the center of the rearmost attaching stud on the engine mount bracket (point "A") and the center of the hole for the washer hose clip on the shock tower bracket (point "B") is 119 mm (4.70 inch) (Fig. 137).
4. With the engine held at the proper position, tighten both the upper and lower torque strut bolts to 118 Nm (87 ft. lbs.) (Fig. 136).
6. Remove the floor jack.
