Harmonic Balancer - Crankshaft Pulley: Service and Repair

REMOVAL
1. Remove accessory drive belts.
2. Raise vehicle on a hoist and remove right inner splash shield.

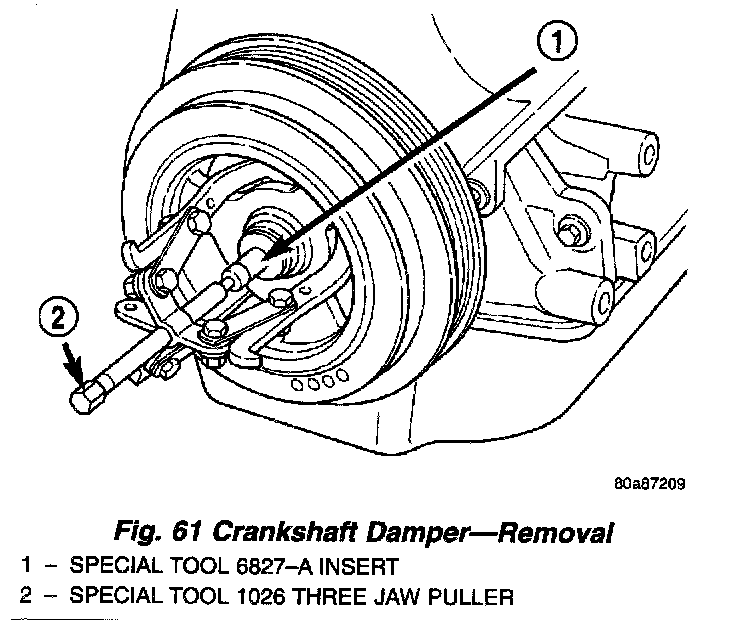

Fig. 61

3. Remove crankshaft damper bolt. Remove damper using the large side of Special Tool 1026 and insert 6827-A (Fig. 61).

INSTALLATION

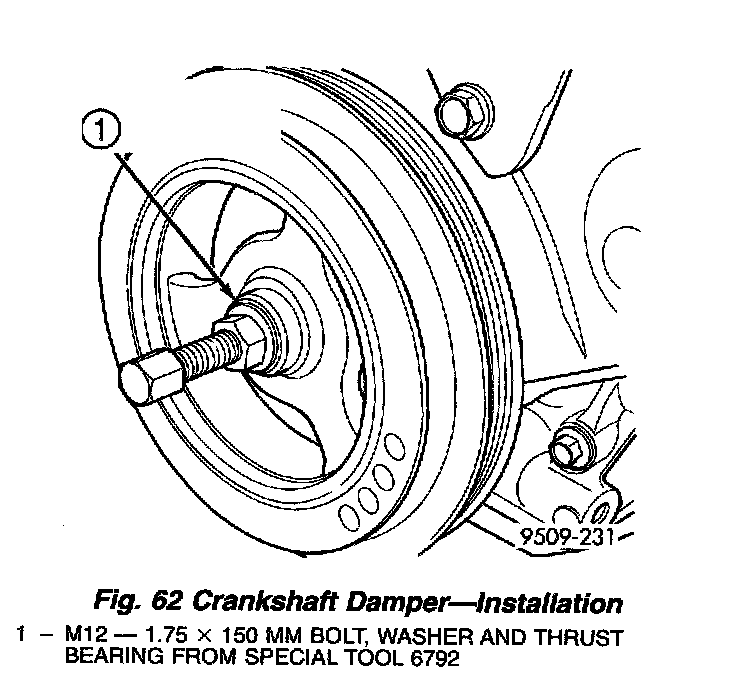

Fig. 62

1. Install crankshaft damper using M12-1.75 x 150 mm bolt, washer, thrust bearing and nut from Special Tool 6792 (Fig. 62).

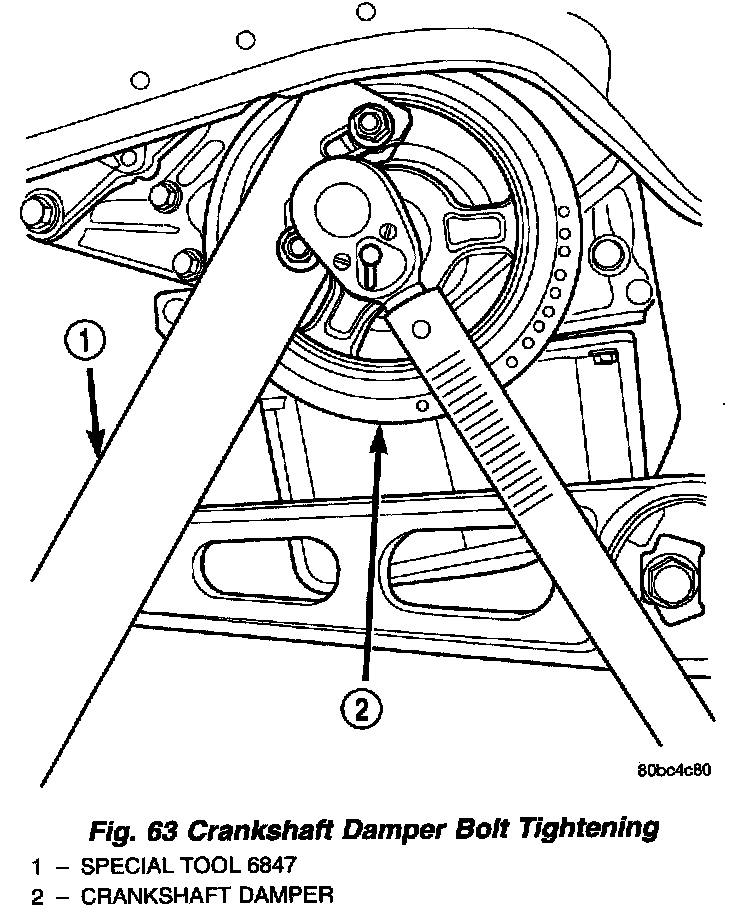

Fig. 63

2. Install crankshaft damper bolt. Using Special Tool 6847 and a torque wrench, tighten bolt to 136 Nm (100 ft. lbs.) (Fig. 63).
3. Install accessory drive belts.
4. Raise vehicle on hoist and install right inner splash shield.
