Coolant Reservoir: Service and Repair

REMOVAL

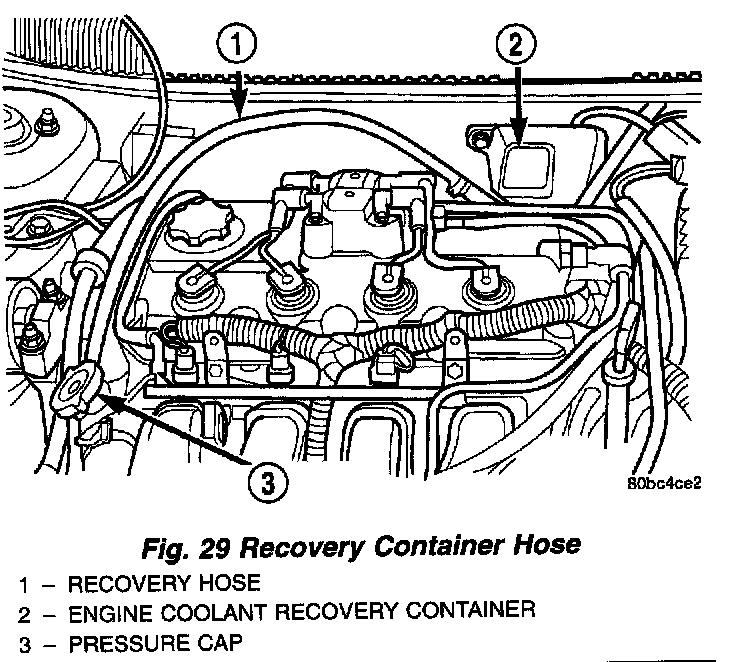

1. Disconnect recovery hose from water outlet connector/thermostat housing .

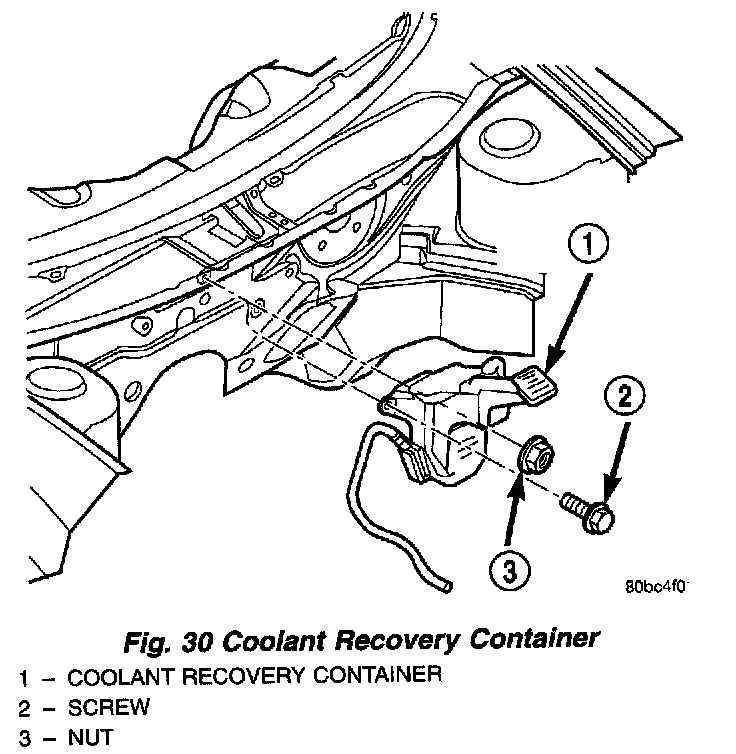

2. Remove container attaching fasteners.
3. Remove coolant recovery container.

INSTALLATION
1. Install coolant recovery container and tighten fasteners to 4 Nm (35 inch lbs.) .
2. Connect recovery hose to water outlet connector/thermostat housing .
3. Fill container to proper level. Refer to Cooling System Refilling. Cooling System Filling
