System Diagrams

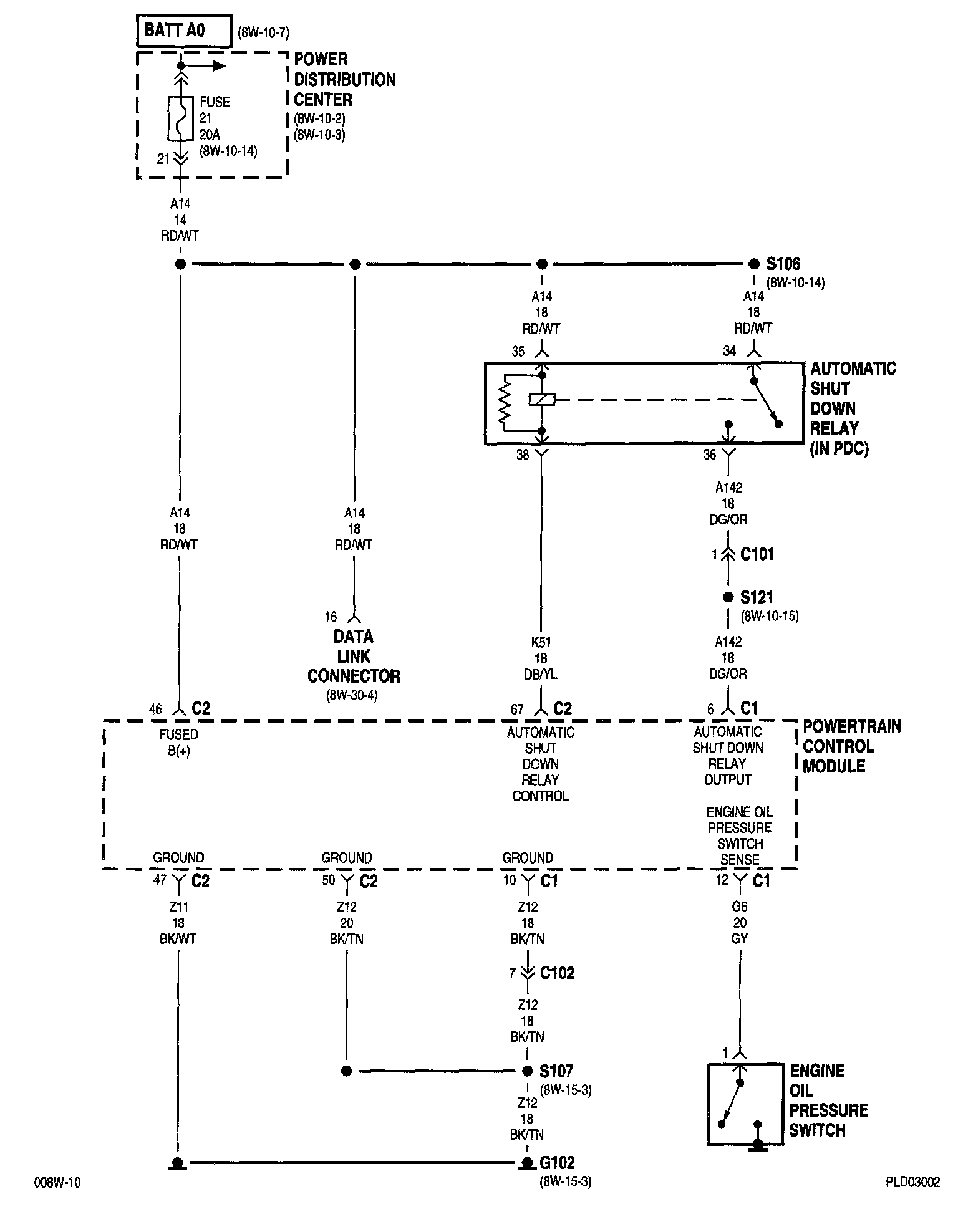

Fuel/Ignition System 8w-30-2:

Automatic Shut Down Relay
Data Link Connector
Engine Oil Pressure Switch
Fuse 21 (PDC)
G102
Powertrain Control Module

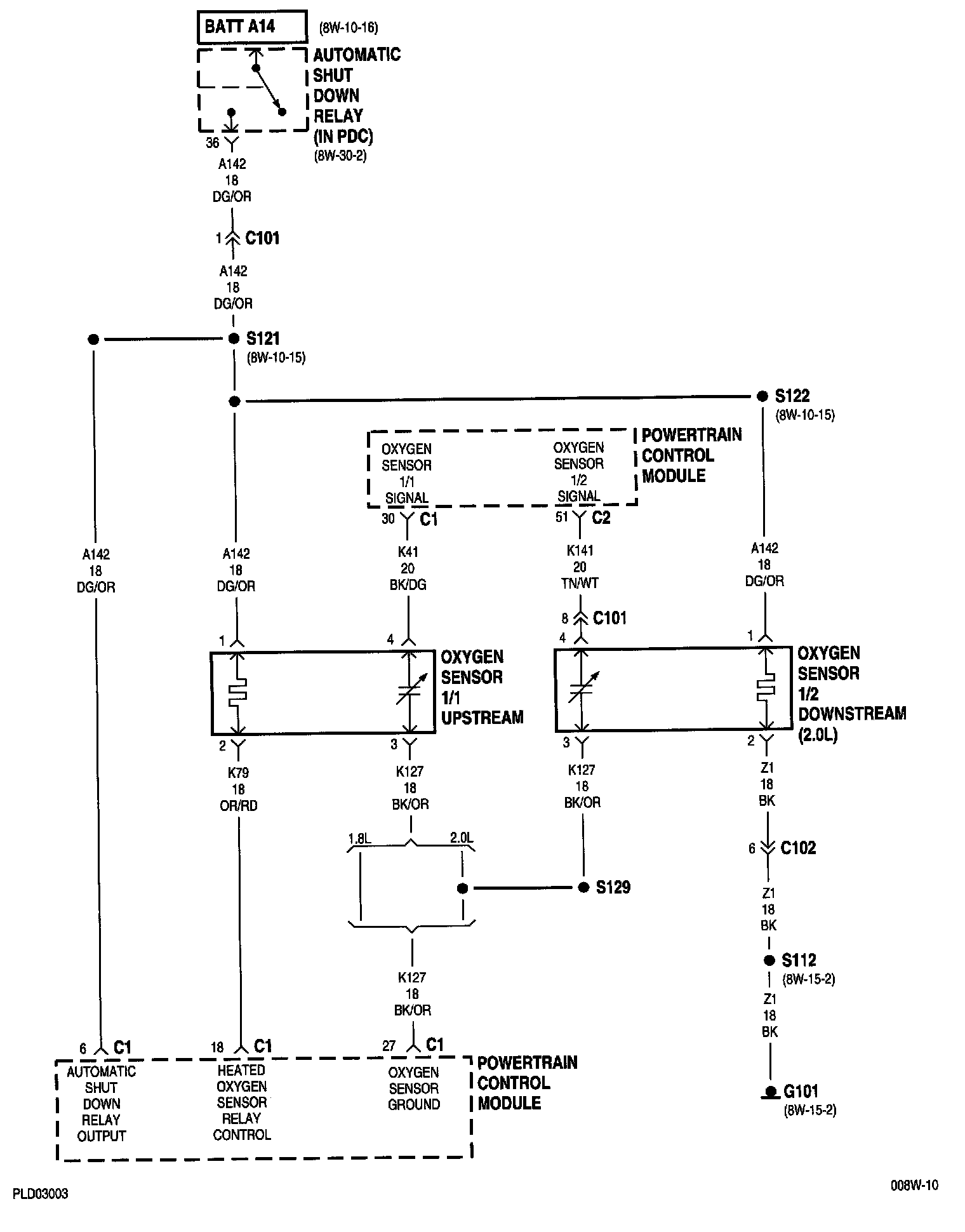

Fuel/Ignition System 8w-30-3:

Automatic Shut Down Relay
G101
Oxygen Sensor 1/1 Upstream
Oxygen Sensor 1/2 Downstream
Powertrain Control Module

Fuel/Ignition System 8w-30-4:

Airbag Control Module
Controller Anti-Lock Brake
Data Link Connector
Fuse 21 (PDC)
G102
Instrument Cluster
Powertrain Control Module
Remote Keyless Entry Module
Sentry Key Immobilizer Module

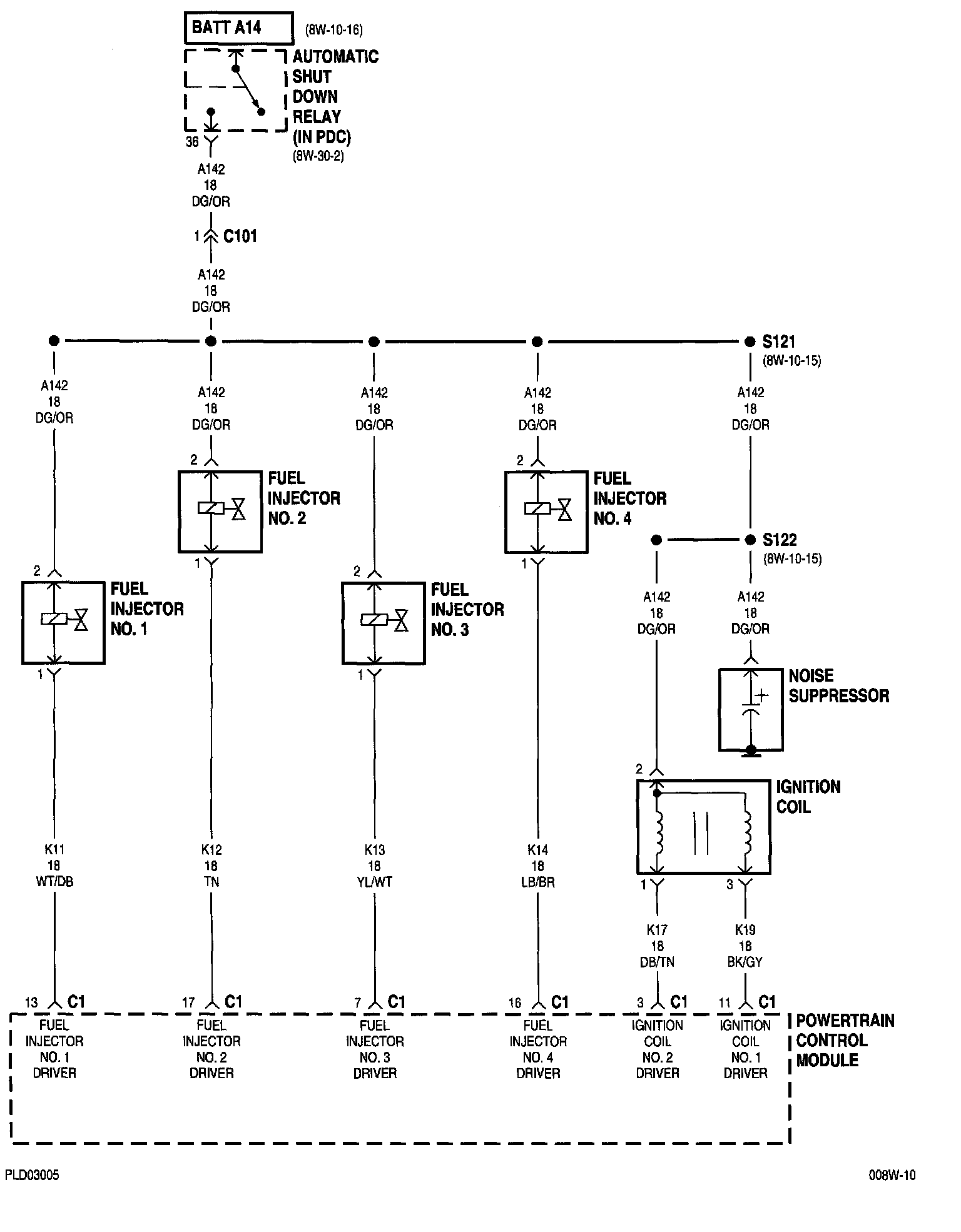

Fuel/Ignition System 8w-30-5:

Automatic Shut Down Relay
Fuel Injector No.1
Fuel Injector No.2
Fuel Injector No.3
Fuel Injector No.4
Ignition Coil
Noise Suppressor
Powertrain Control Module

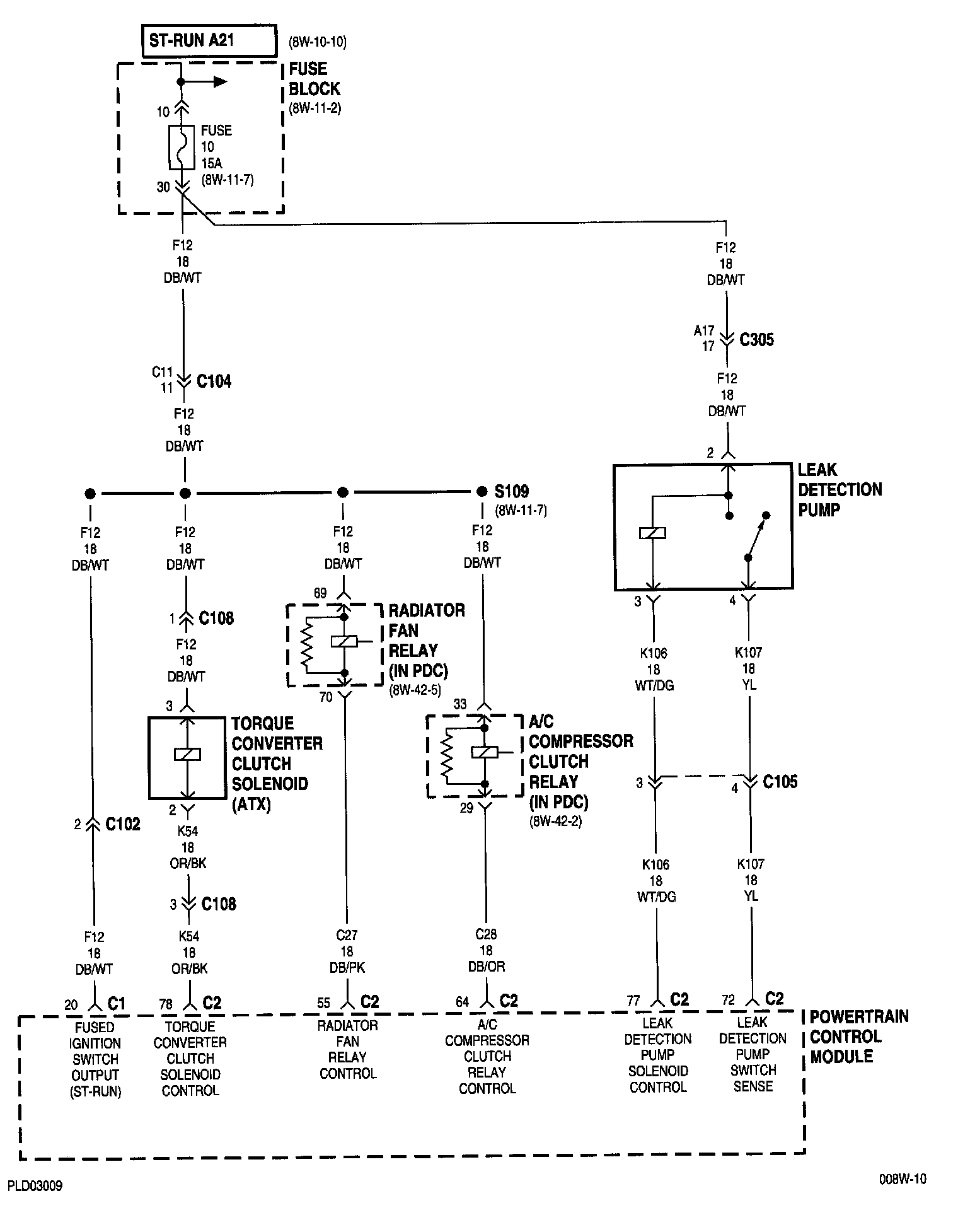

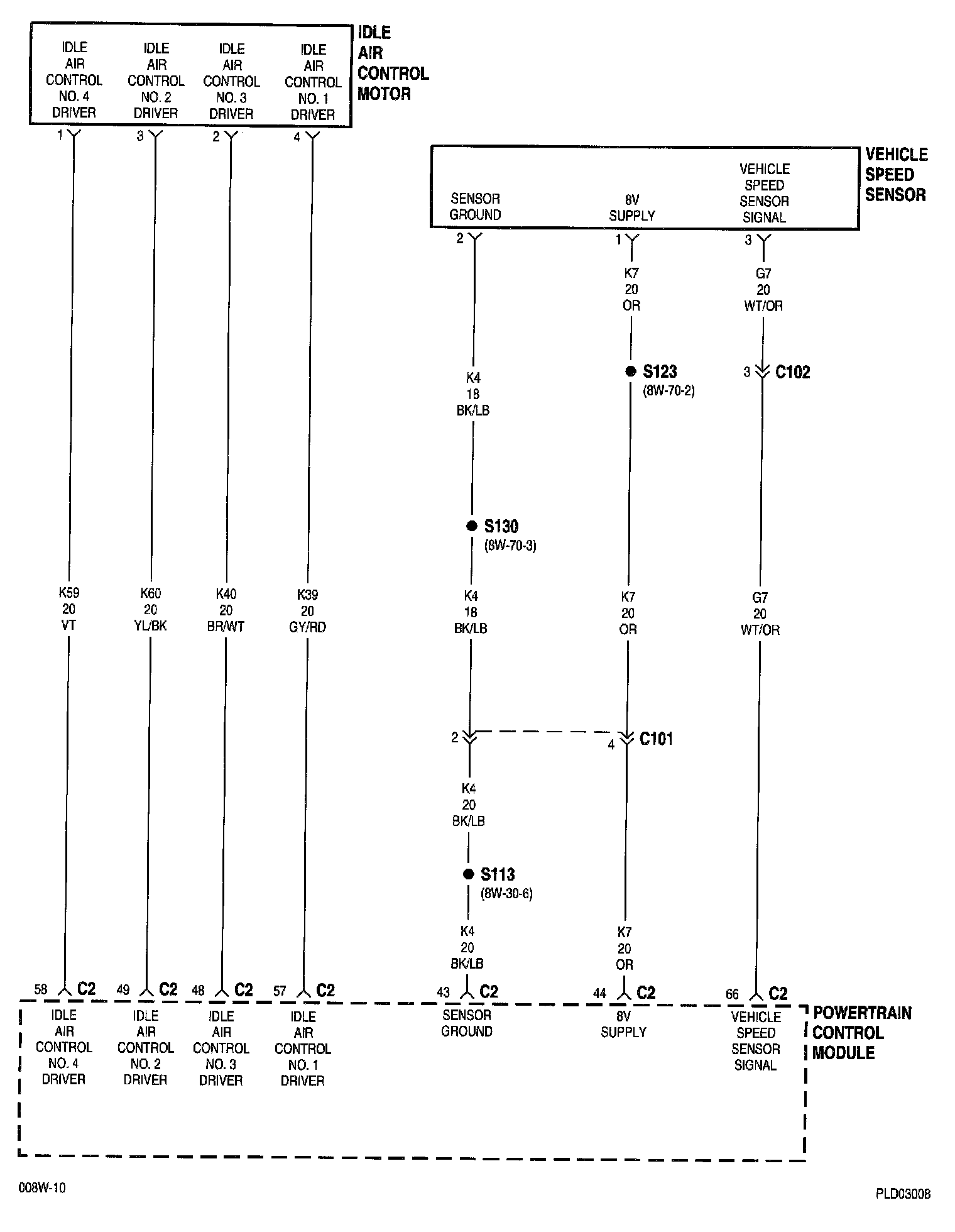

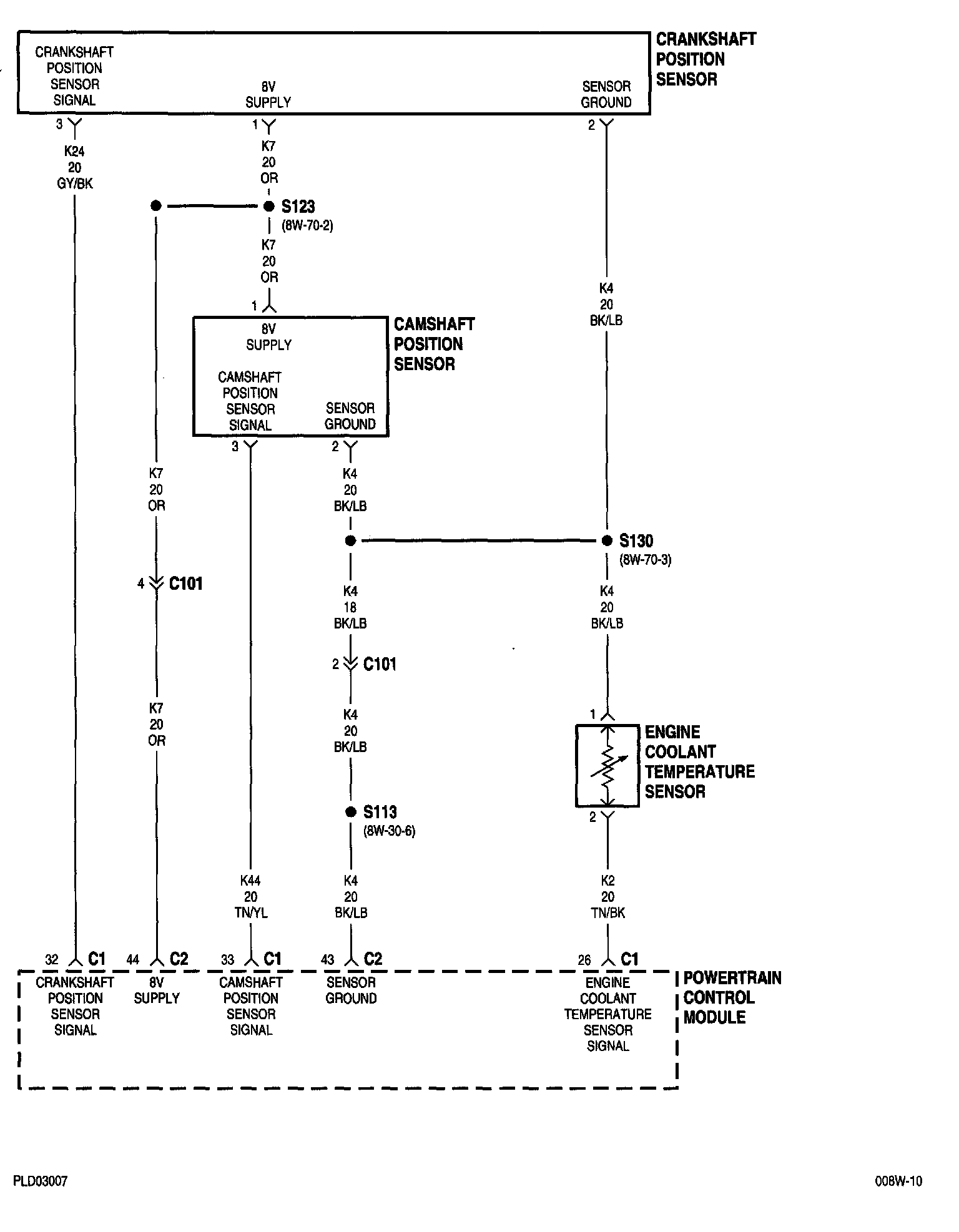

Fuel/Ignition System 8w-30-9:

A/C Compressor Clutch Relay
Fuse 10 (FB)
Fuse Block
Leak Detection Pump
Powertrain Control Module
Radiator Fan Relay
Torque Converter Clutch Solenoid

Fuel/Ignition System 8w-30-10:

Fuel Pump Module
Fuel Tank
Fuse 10 (FB)
Fuse 21 (PDC)
Fuse Block
G303
Instrument Cluster
Powertrain Control Module

Fuel/Ignition System 8w-30-11:

A/C High Pressure Switch
Generator
Powertrain Control Module

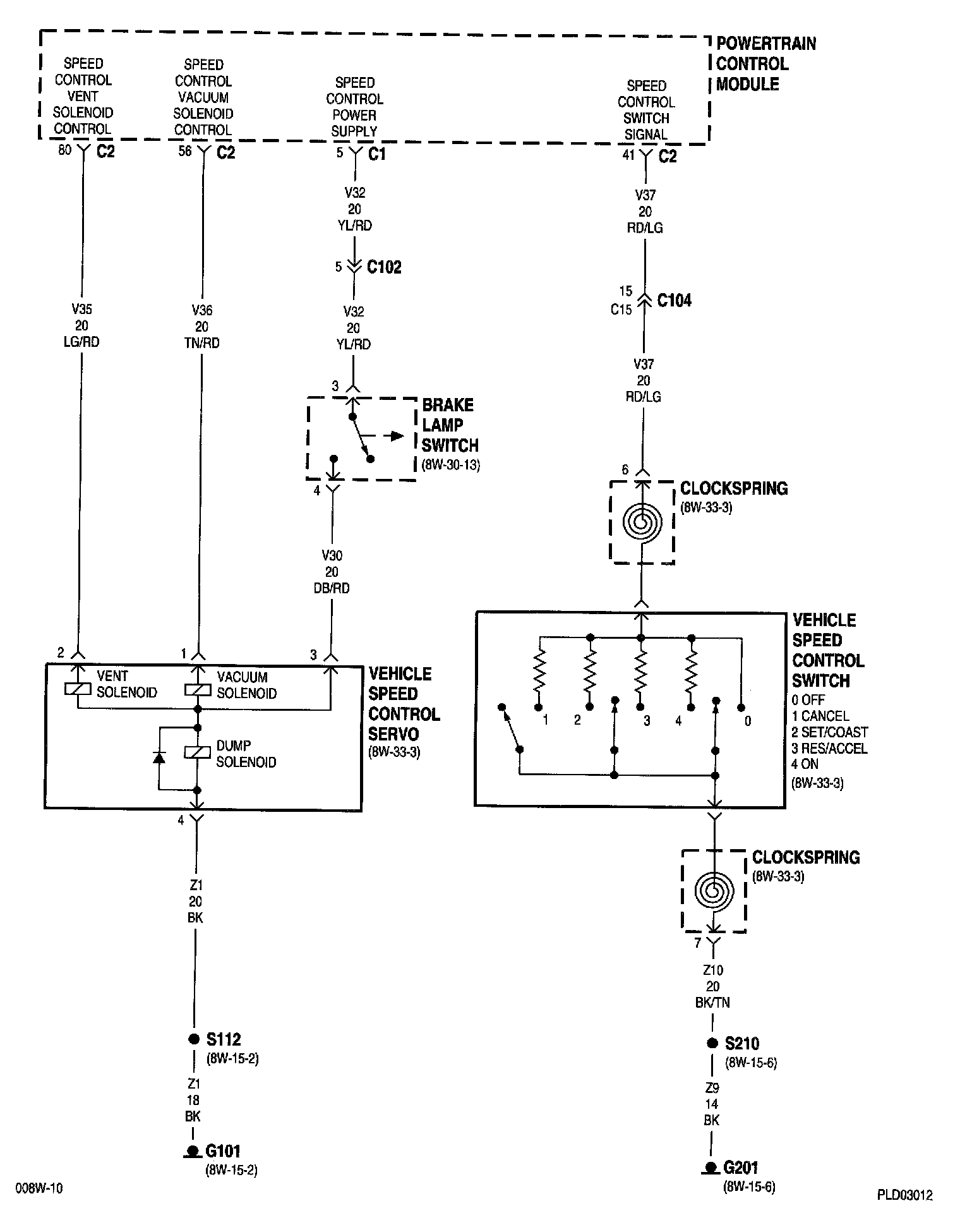

Fuel/Ignition System 8w-30-12:

Brake Lamp Switch
Clockspring
G101
G201
Powertrain Control Module
Vehicle Speed Control Servo
Vehicle Speed Control Switch

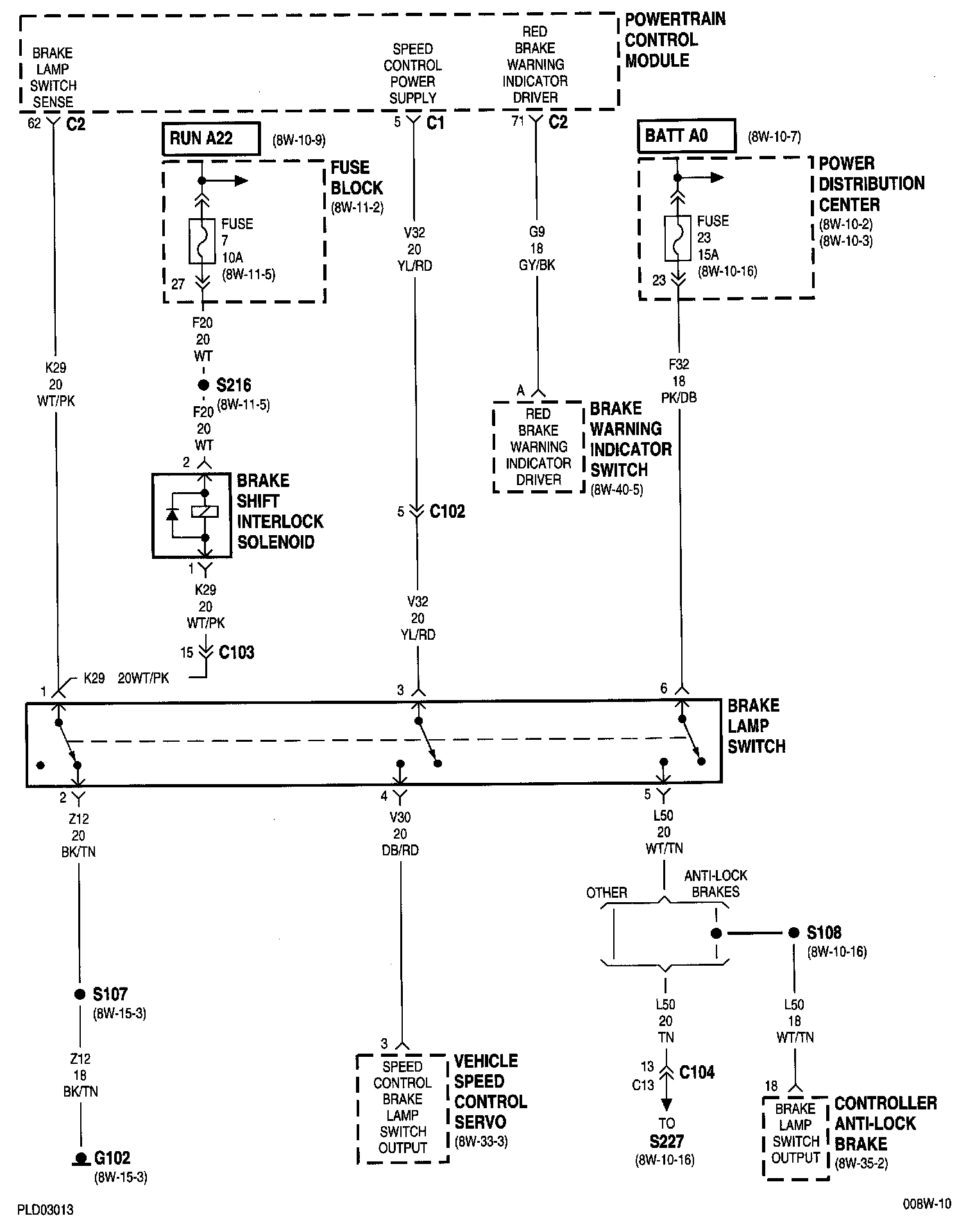

Fuel/Ignition System 8w-30-13:

Brake Lamp Switch
Brake Shift Interlock Solenoid
Brake Warning Indicator Switch
Controller Anti-Lock Brake
Fuse 7 (FB)
Fuse 23 (PDC)
Fuse Block
G102
Powertrain Control Module
Vehicle Speed Control Servo

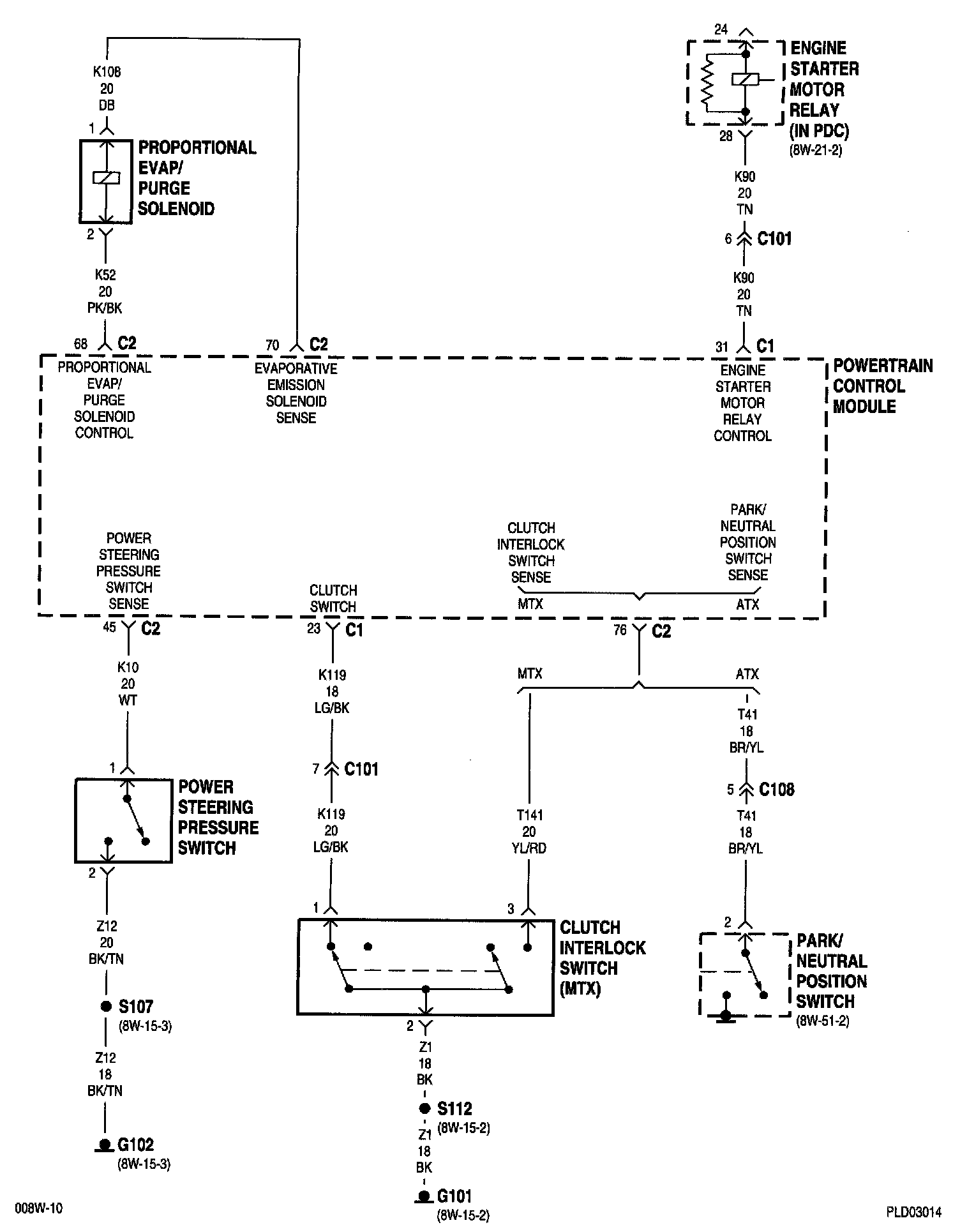

Fuel/Ignition System 8w-30-14:

Clutch Interlock Switch
Engine Starter Motor Relay
G101
G102
Park/Neutral Position Switch
Power Steering Pressure Switch
Powertrain Control Module
Proportional Evap/Purge Solenoid

NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
