Ground Distribution

Ground Distribution 8w-15-2:

Brake Warning Indicator Switch
Clutch Interlock Switch
G101
Left Front Side Marker Lamp
Left Headlamp
Left Park/Turn Signal Lamp
Oxygen Sensor 1/2 Downstream
Underhood Lamp
Vehicle Speed Control Servo

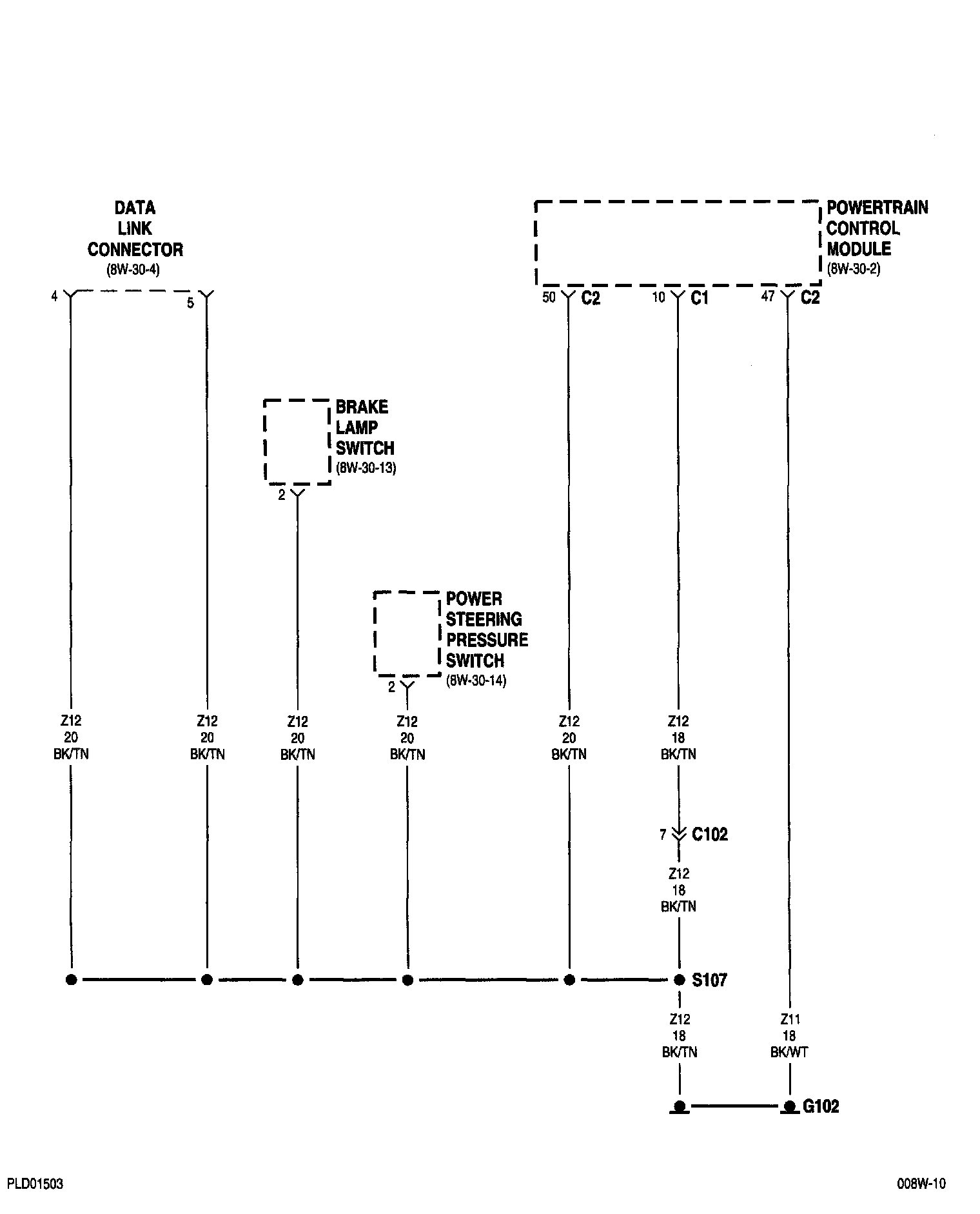

Ground Distribution 8w-15-3:

Brake Lamp Switch
Data Link Connector
G102
Power Steering Pressure Switch
Powertrain Control Module

Ground Distribution 8w-15-4:

A/C Compressor Clutch
A/C Compressor Clutch Relay
Controller Anti-Lock Brake
Diode No.1
G103
Low Note Horn
Radiator Fan Motor
Windshield Washer Pump

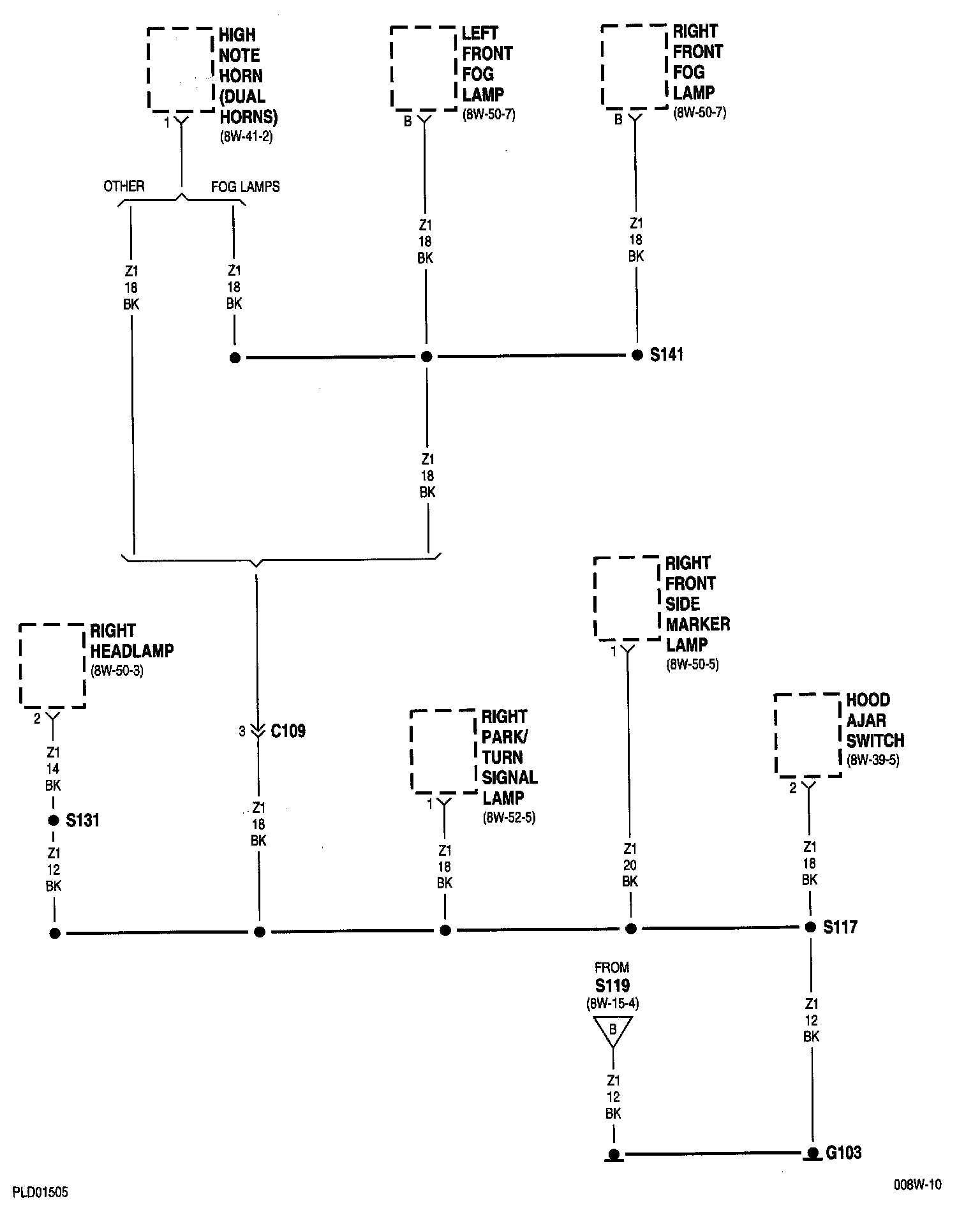

Ground Distribution 8w-15-5:

G103
High Note Horn
Hood Ajar Switch
Left Front Fog Lamp
Right Front Fog Lamp
Right Front Side Marker Lamp
Right Headlamp
Right Park/Turn Signal Lamp

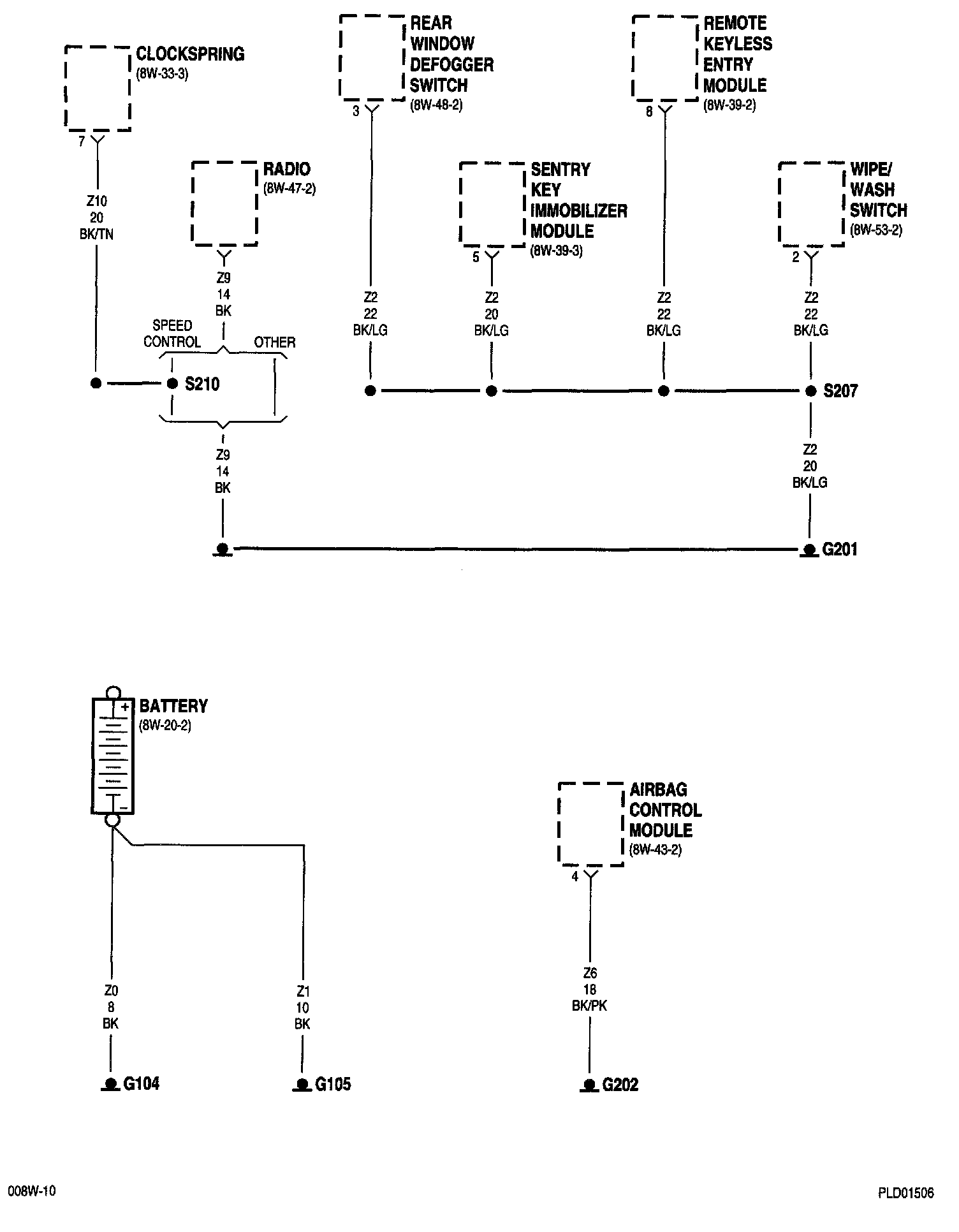

Ground Distribution 8w-15-6:

Airbag Control Module
Battery
Clockspring
G104
G105
G201
G202
Radio
Rear Window Defogger Switch
Remote Keyless Entry Module
Sentry Key Immobilizer Module
Wipe/Wash Switch

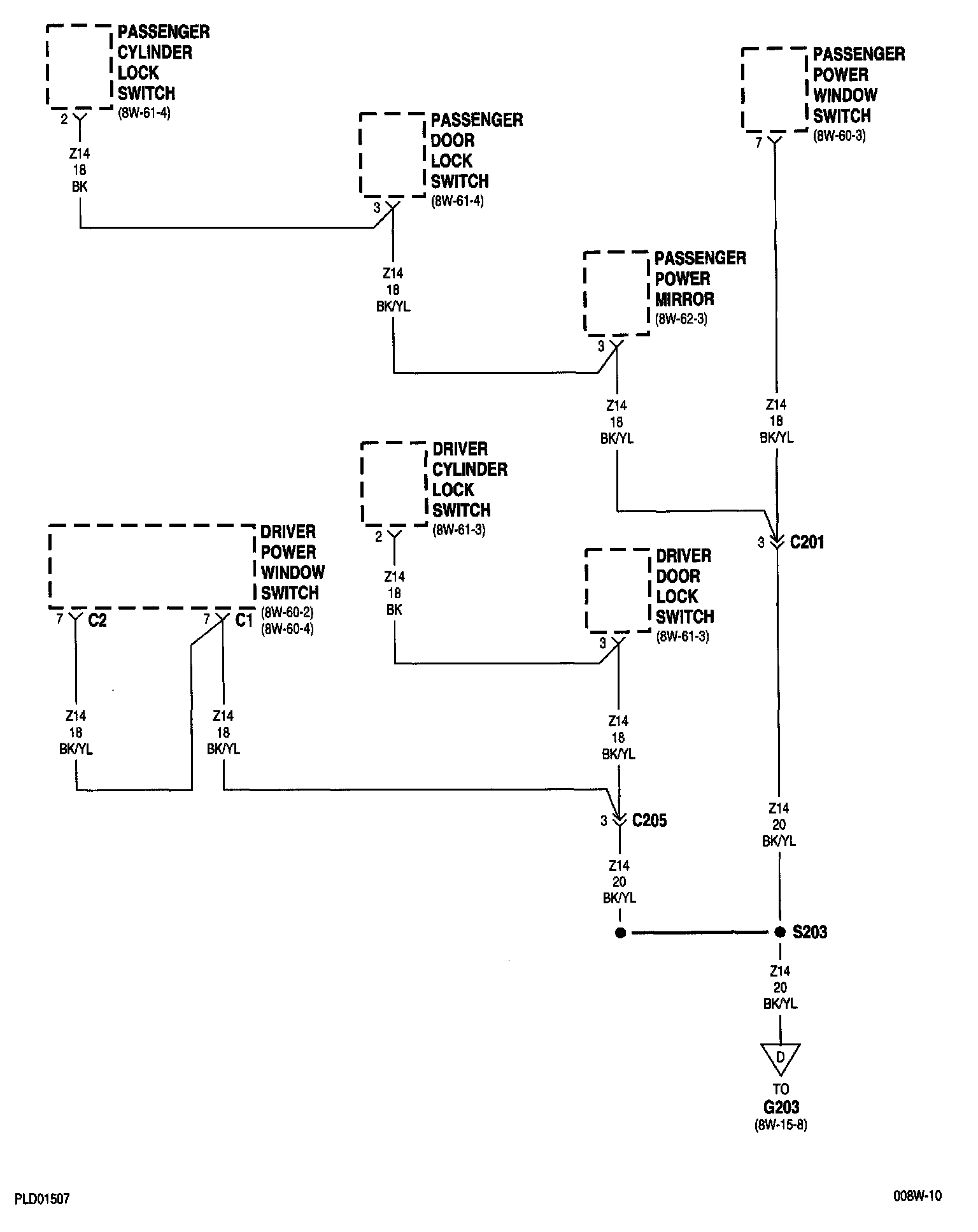

Ground Distribution 8w-15-7:

Driver Cylinder Lock Switch
Driver Door Lock Switch
Driver Power Window Switch
G203
Passenger Cylinder Lock Switch
Passenger Door Lock Switch
Passenger Power Mirror
Passenger Power Window Switch

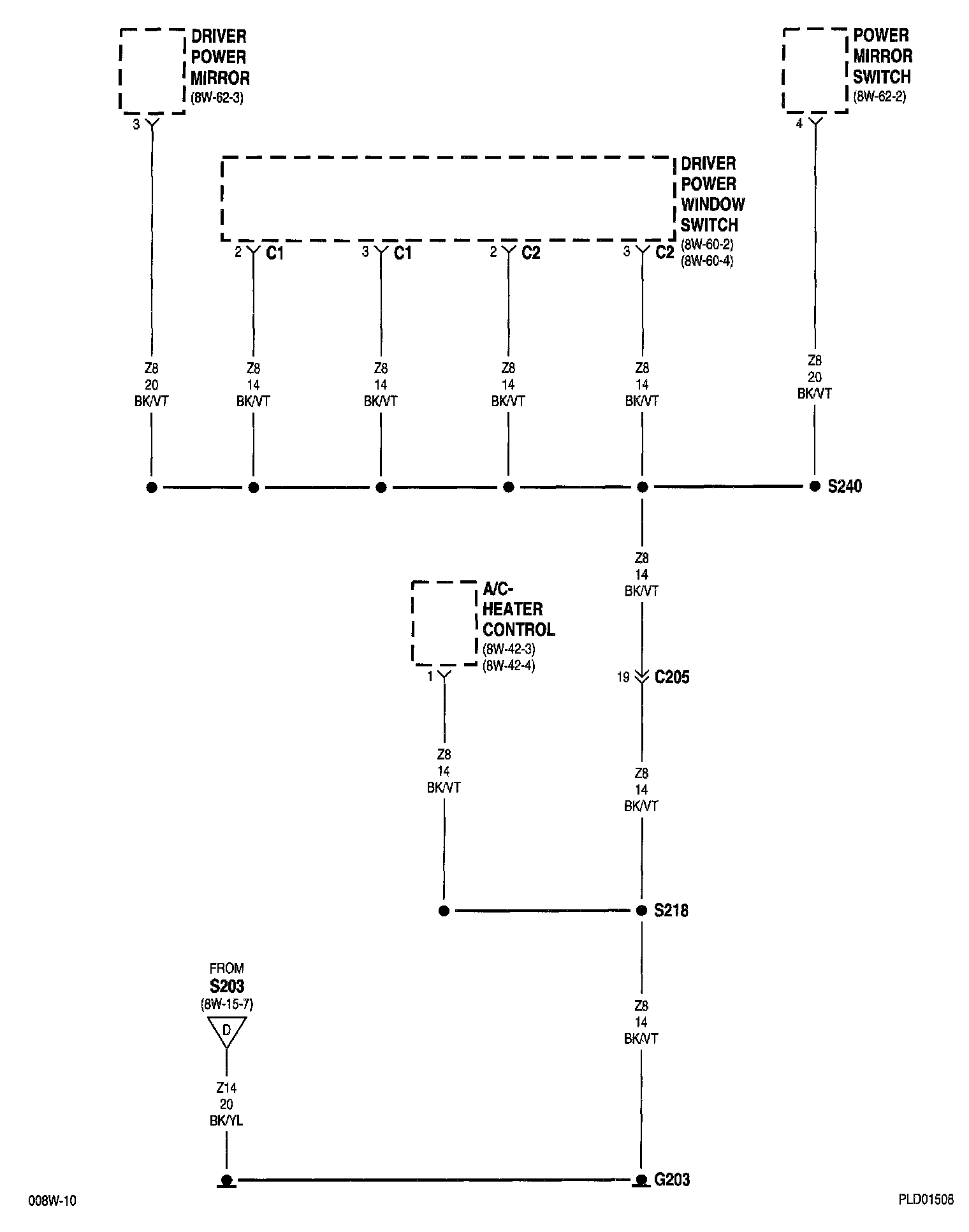

Ground Distribution 8w-15-8:

A/C-Heater Control
Driver Power Mirror
Driver Power Window Switch
G203
Power Mirror Switch

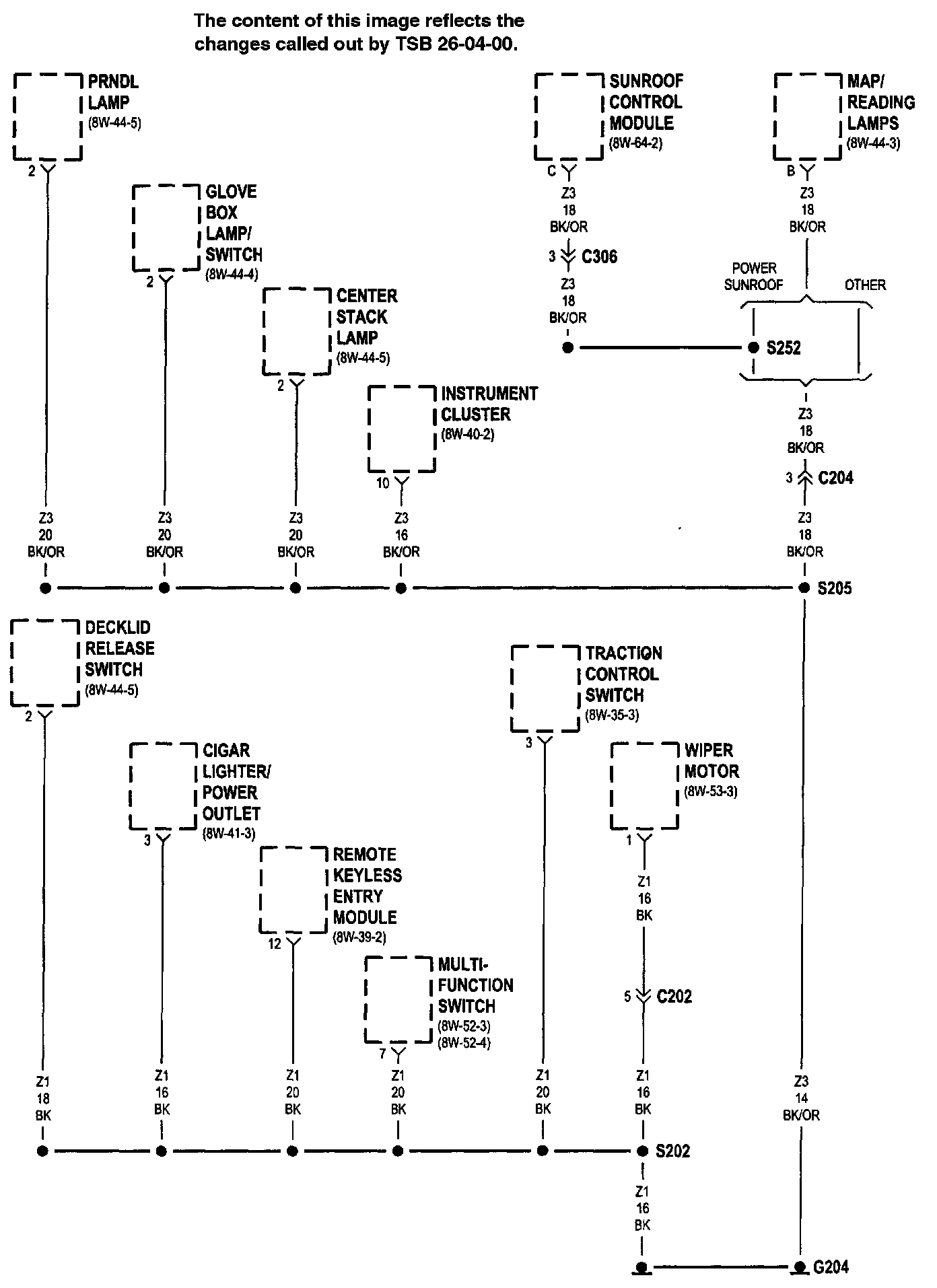

Ground Distribution 8w-15-9:

Center Stack Lamp
Cigar Lighter/Power Outlet
G204
Glove Box Lamp/Switch
Instrument Cluster
Map/Reading Lamps
Multi-Function Switch
PRNDL Lamp
Remote Keyless Entry Module
Sunroof Control Module
Traction Control Switch
Wiper Motor

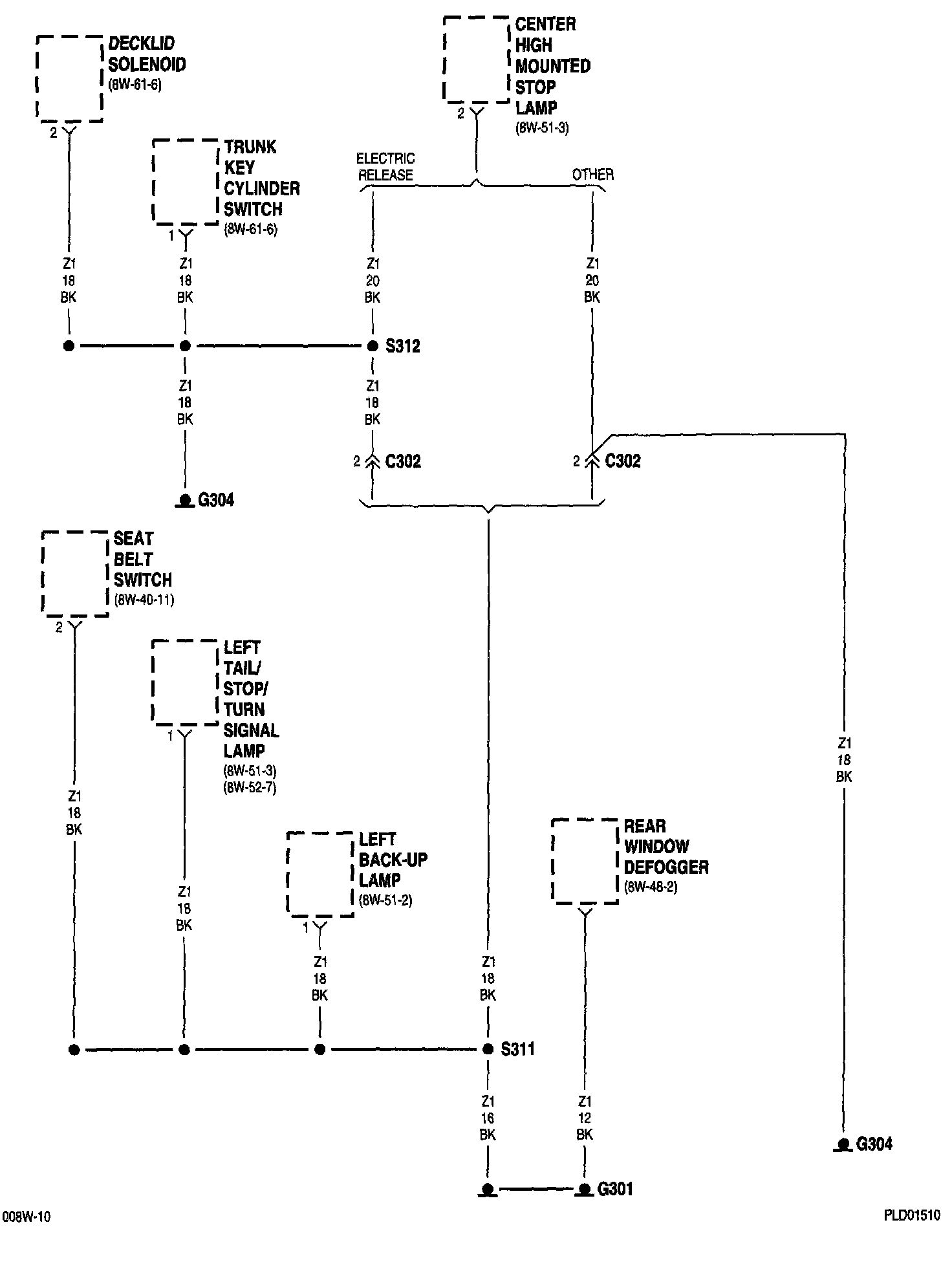

Ground Distribution 8w-15-10:

Center High Mounted Stop Lamp
Decklid Solenoid
G301
G304
Left Back-Up Lamp
Left Tail/Stop/Turn Signal Lamp
Rear Window Defogger
Seat Belt Switch
Trunk Key Cylinder Switch

Ground Distribution 8w-15-11:

Fuel Pump Module
Fuel Tank
G302
G303
License Lamp
Right Back-Up Lamp
Right Tail/Stop/Turn Signal Lamp


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
