Wiring Diagrams
Fuse Block 8w-11-4:
Combination Flasher
Fuse 1 (FB)
Fuse 2 (FB)
Fuse 3 (FB)
Fuse 4 (FB)
Fuse Block
Multi-Function Switch
Power Mirror Switch
Radio
Sunroof Control Module
Sunroof Switch
Wipe/Wash Switch
Wiper Motor
Fuse Block 8w-11-5:
A/C Cycling Switch
A/C Heater Blower Motor
Airbag Control Module
Back-Up Lamp Switch
Brake Shift Interlock Solenoid
Fuse 5 (FB)
Fuse 6 (FB)
Fuse 7 (FB)
Fuse Block
Park/Neutral Position Switch
Rear Window Defogger Switch

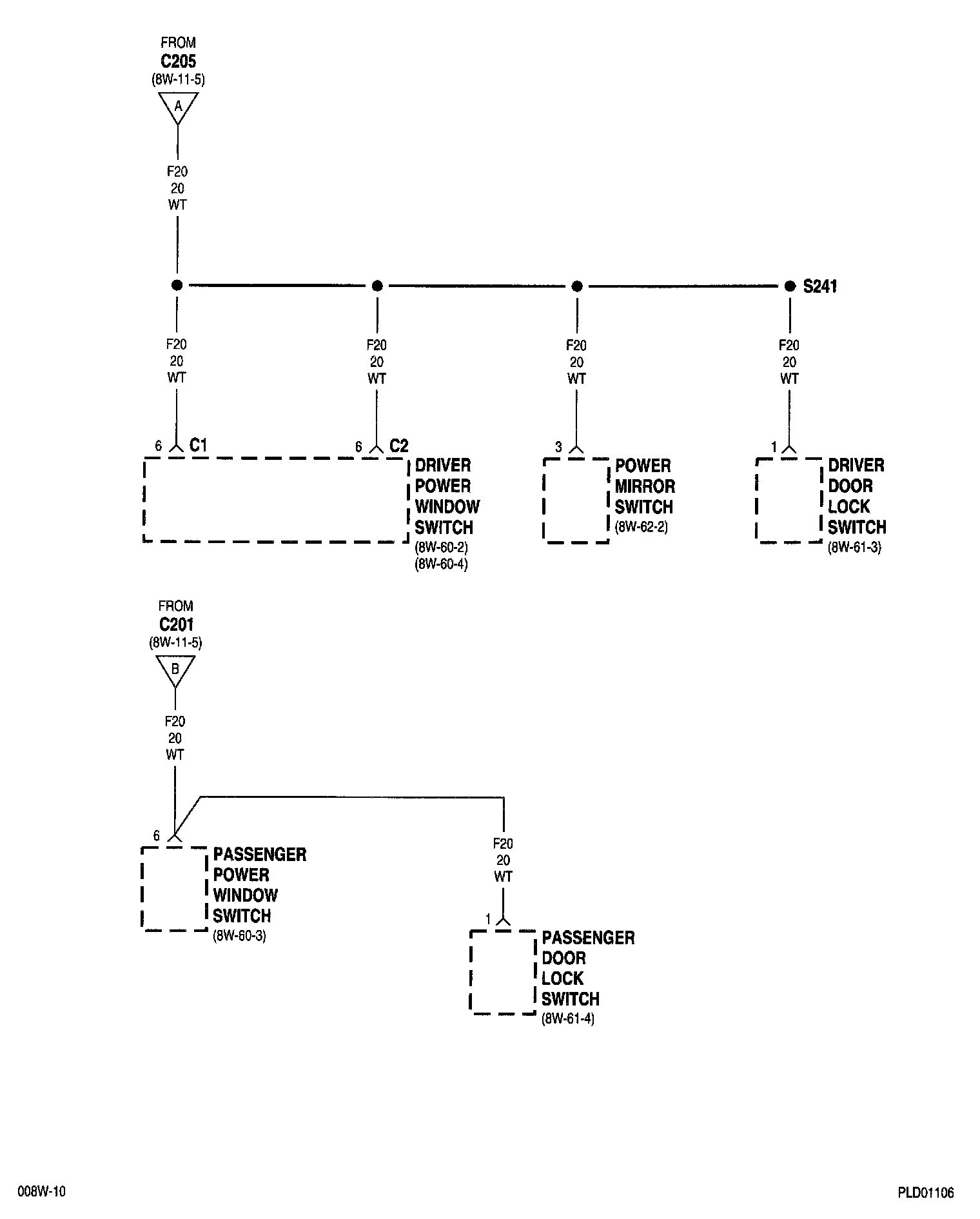

Fuse Block 8w-11-6:
Driver Door Lock Switch
Driver Power Window Switch
Passenger Door Lock Switch
Passenger Power Window Switch
Power Mirror Switch
Fuse Block 8w-11-7:
A/C Compressor Clutch Relay
Airbag Control Module
Controller Anti-Lock Brake
Fuel Pump Relay
Fuse 9 (FB)
Fuse 10 (FB)
Fuse Block
Leak Detection Pump
Powertrain Control Module
Radiator Fan Relay
Torque Converter Clutch Solenoid
Fuse Block 8w-11-8:
Fuse 11 (FB)
Fuse Block
Instrument Cluster
Remote Keyless Entry Module
Sentry Key Immobilizer Module
Fuse Block 8w-11-9:
Fuse 14 (FB)
Fuse 15 (FB)
Fuse 16 (FB)
Fuse Block
Headlamp Switch
Instrument Cluster
Left Tail/Stop/Turn Signal Lamp
License Lamp
Multi-Function Switch
Radio
Remote Keyless Entry Module
Right Tail/Stop/Turn Signal Lamp
Fuse Block 8w-11-10:
Left Front Side Marker Lamp
Left Park/Turn Signal Lamp
Right Front Side Marker Lamp
Right Park/Turn Signal Lamp
Fuse Block 8w-11-11:
Driver Power Mirror
Fuse 10 (PDC)
Fuse 20 (FB)
Fuse Block
Passenger Power Mirror
Power Distribution Center
Rear Window Defogger
Rear Window Defogger Switch
Fuse Block 8w-11-12:
Circuit Breaker No.1 (FB)
Driver Power Window Switch
Fuse Block
Passenger Power Window Switch
Fuse Block 8w-11-13:
Circuit Breaker No.2 (FB)
Fuse Block
Instrument Cluster
Multi-Function Switch
Remote Keyless Entry Module
Fuse Block 8w-11-14:
Fuse 17 (FB)
Fuse 18 (FB)
Fuse 19 (FB)
Fuse Block
Instrument Cluster
Left Front Fog Lamp
Left Headlamp
Multi-Function Switch
Right Front Fog Lamp
Right Headlamp

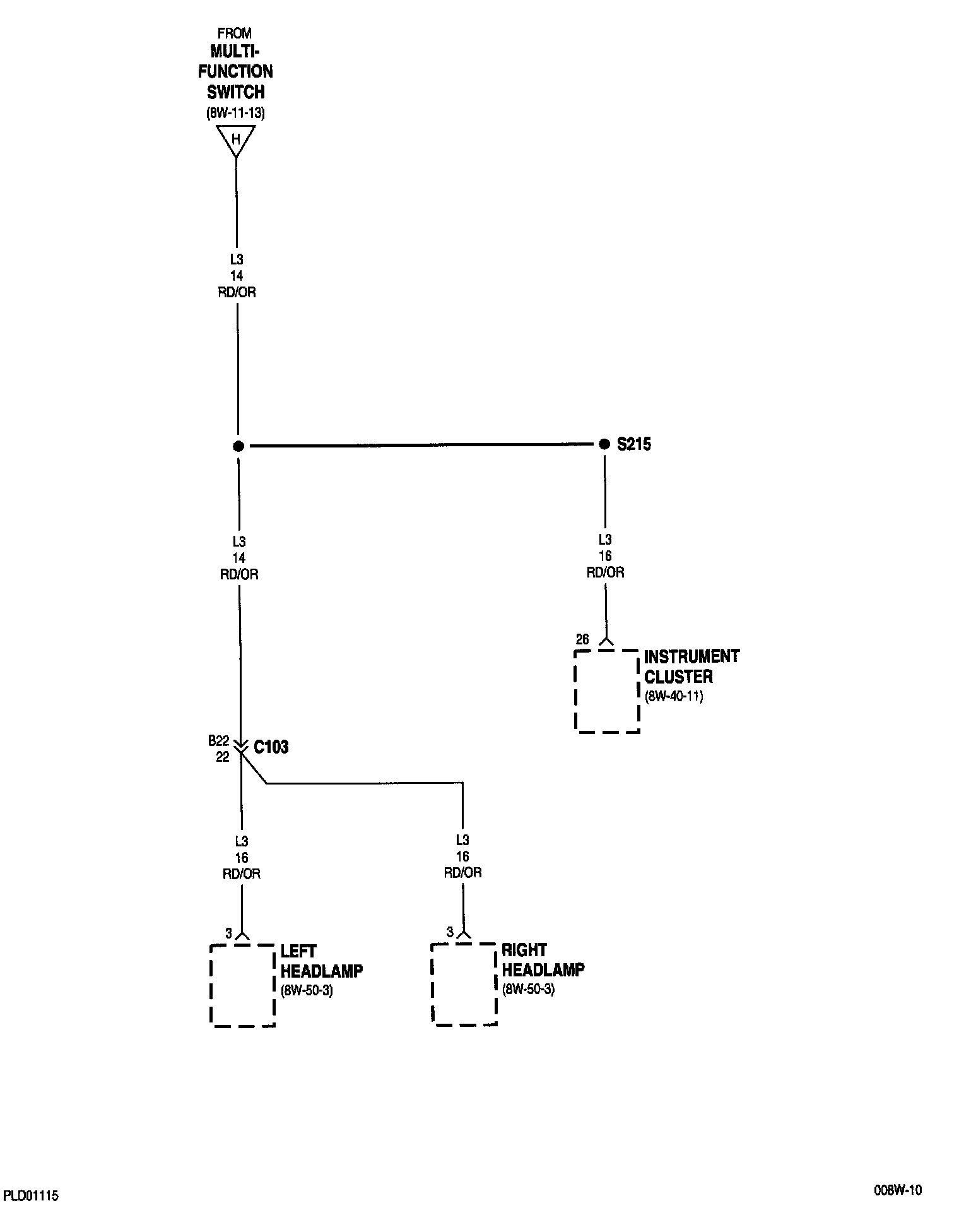

Fuse Block 8w-11-15:
Instrument Cluster
Left Headlamp
Right Headlamp
NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
