Interior Lighting

Interior Lighting 8w-44-2:

Dome Lamp
Fuse 13 (PDC)
Map/Reading Lamps
Power Distribution Center

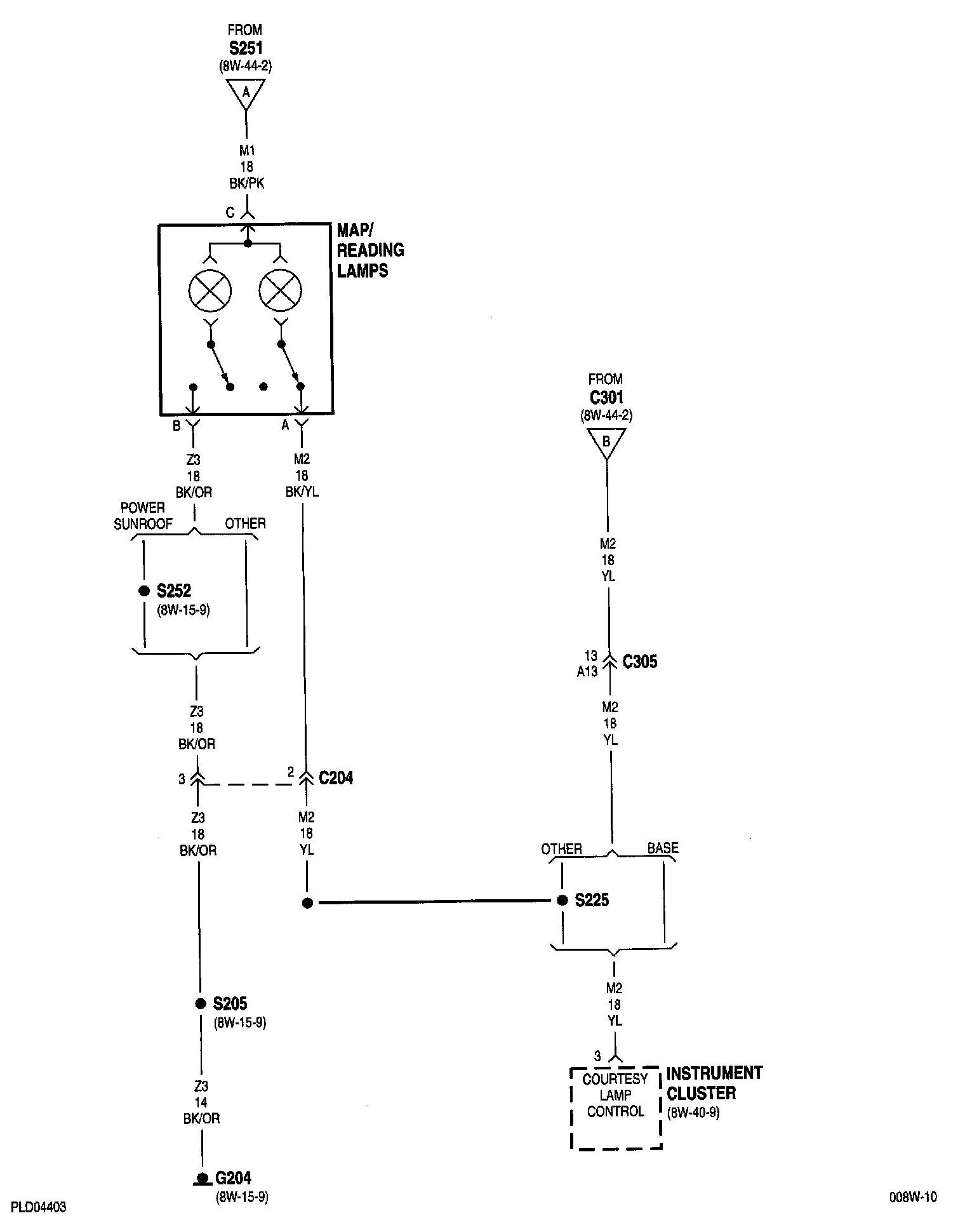

Interior Lighting 8w-44-3:

G204
Instrument Cluster
Map/Reading Lamps

Interior Lighting 8w-44-4:

Cargo Lamp
Decklid Release Switch
G101
G204
Glove Box Lamp/Switch
Left Visor/Vanity Lamp
Power Distribution Center
Right Visor/Vanity Lamp
Underhood Lamp

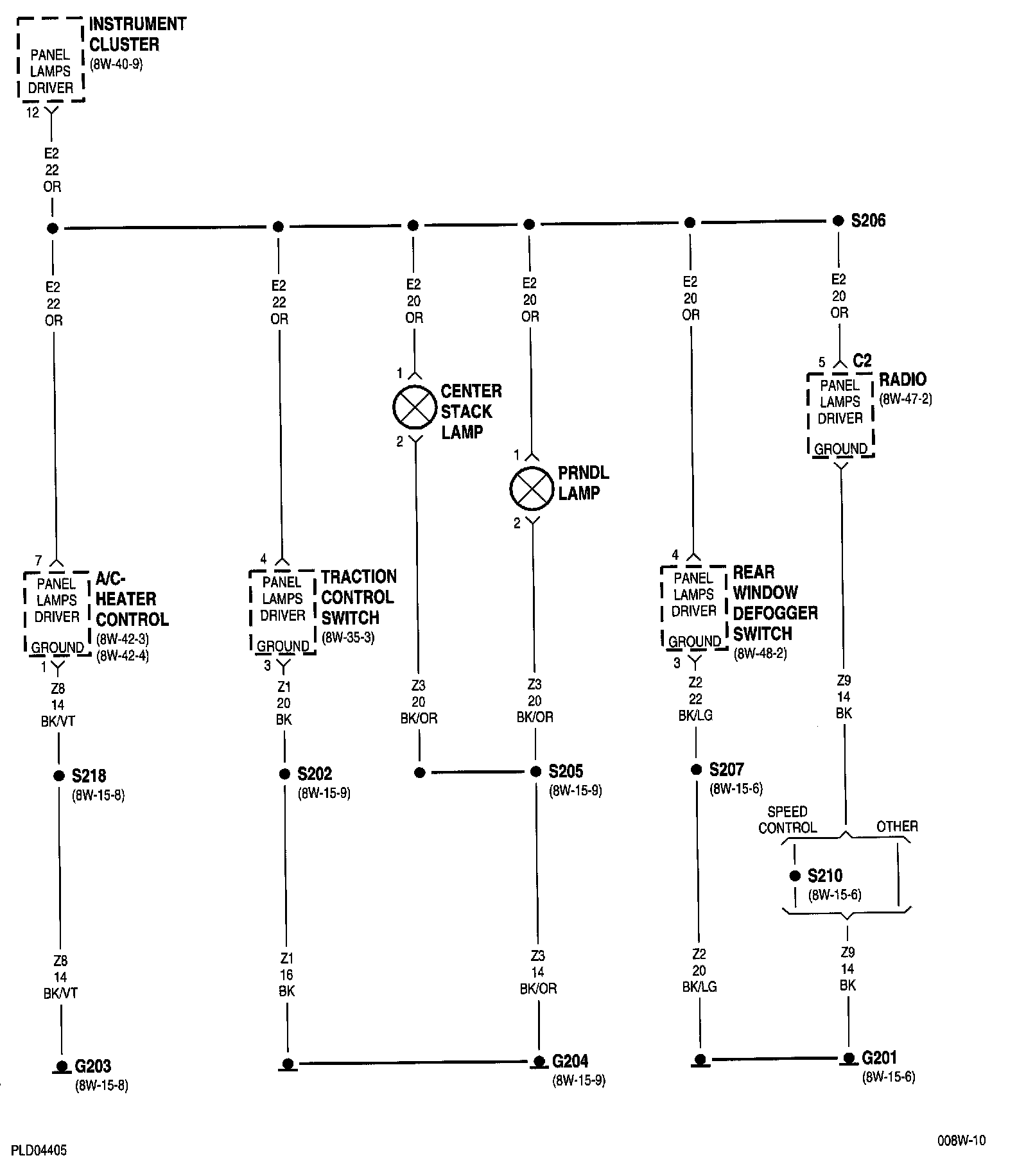

Interior Lighting 8w-44-5:

A/C-Heater Control
Center Stack Lamp
G201
G203
G204
Instrument Cluster
PRNDL Lamp
Radio
Rear Window Defogger Switch
Traction Control Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
