Front Lighting

Front Lighting 8w-50-2:

Circuit Breaker No.2 (FB)
Front Fog Lamp Switch
Fuse 15 (FB)
Fuse Block
Headlamp Beam Select
Headlamp Switch
Instrument Cluster
Multi-Function Switch

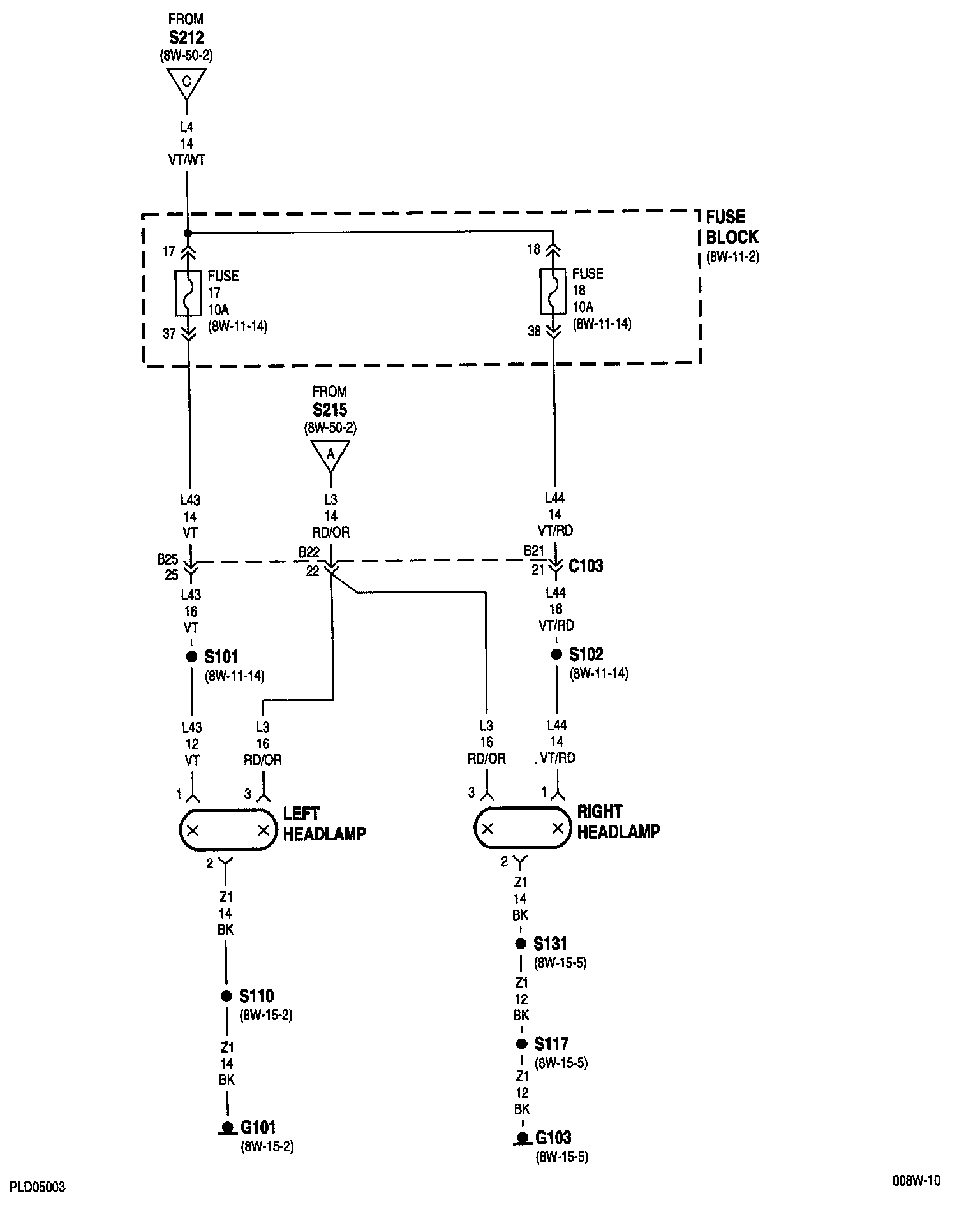

Front Lighting 8w-50-3:

Fuse 17 (FB)
Fuse 18 (FB)
Fuse Block
G101
G103
Left Headlamp
Right Headlamp

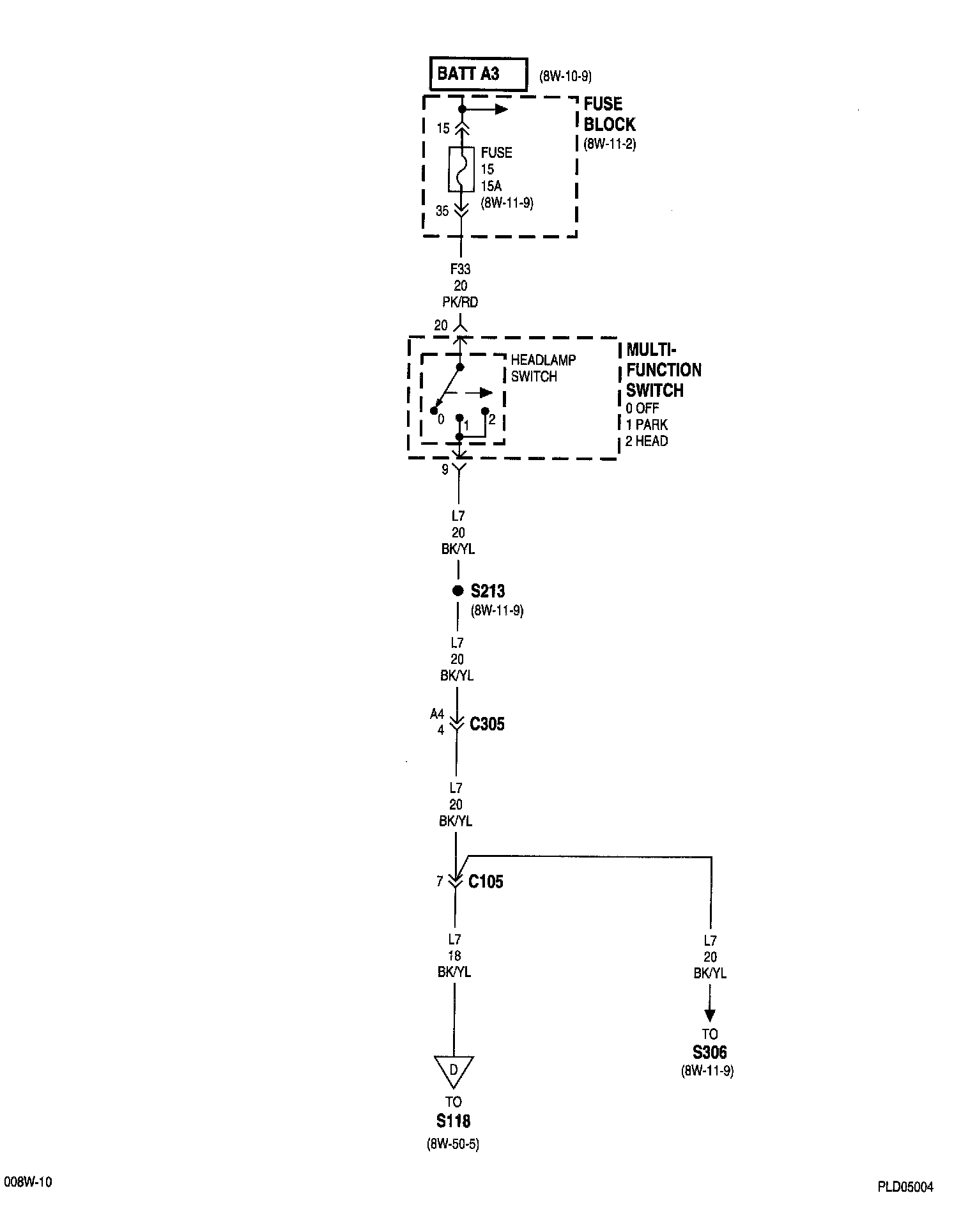

Front Lighting 8w-50-4:

Fuse 15 (FB)
Fuse Block
Multi-Function Switch

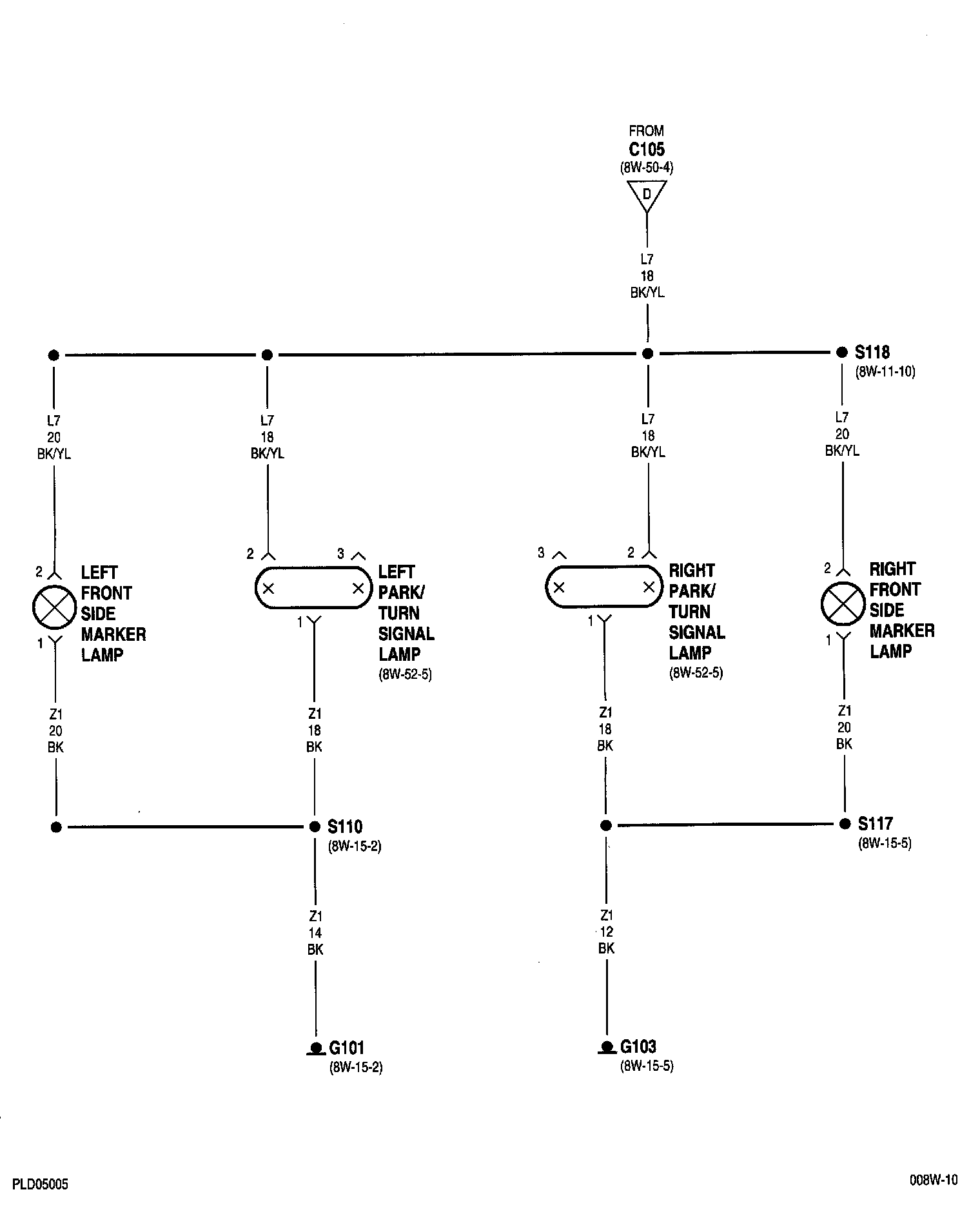

Front Lighting 8w-50-5:

G101
G103
Left Front Side Marker Lamp
Left Park/Turn Signal Lamp
Right Front Side Marker Lamp
Right Park/Turn Signal Lamp

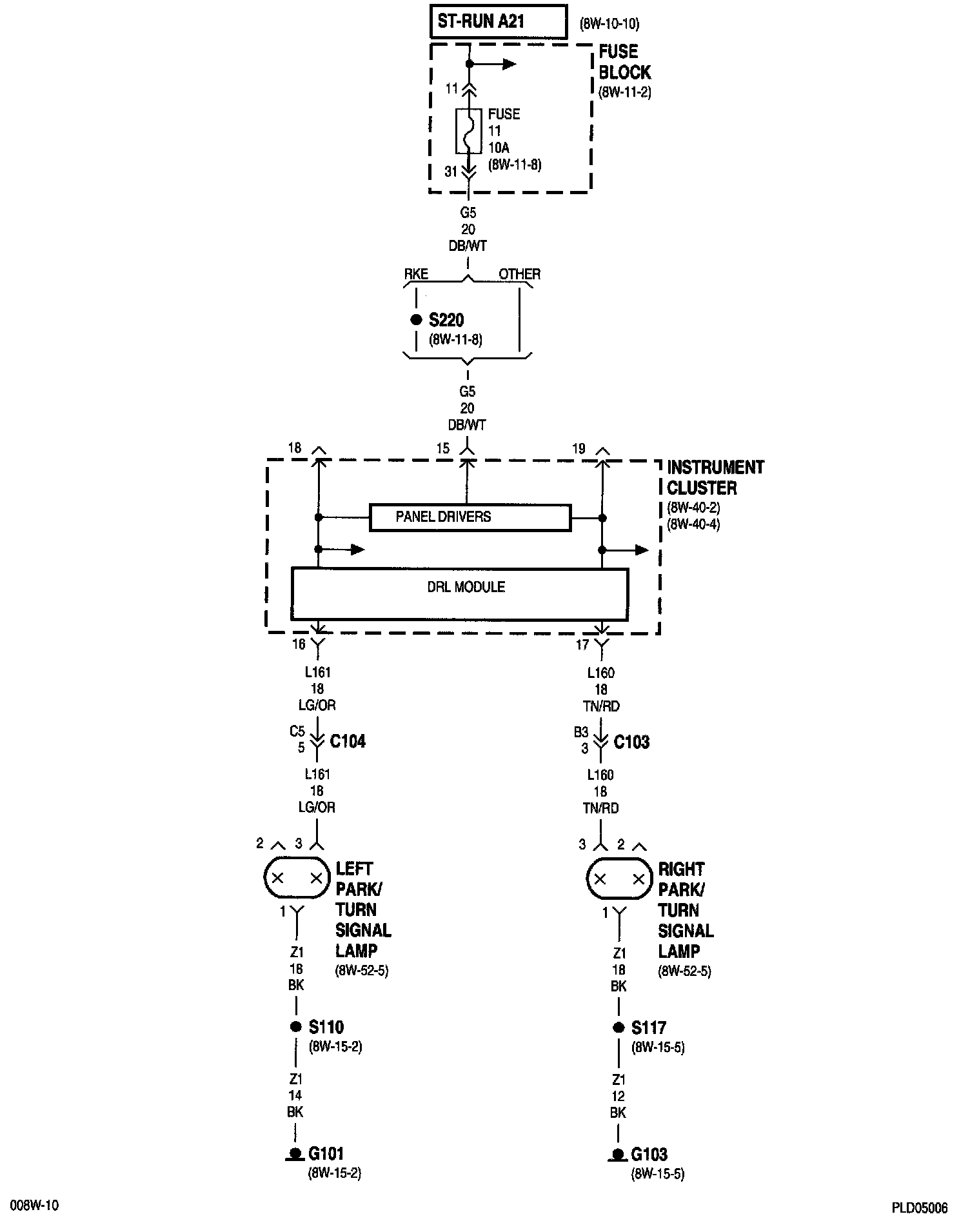

Front Lighting 8w-50-6 (DRL):

Fuse 11 (FB)
Fuse Block
G101
G103
Instrument Cluster
Left Park/Turn Signal Lamp
Right Park/Turn Signal Lamp

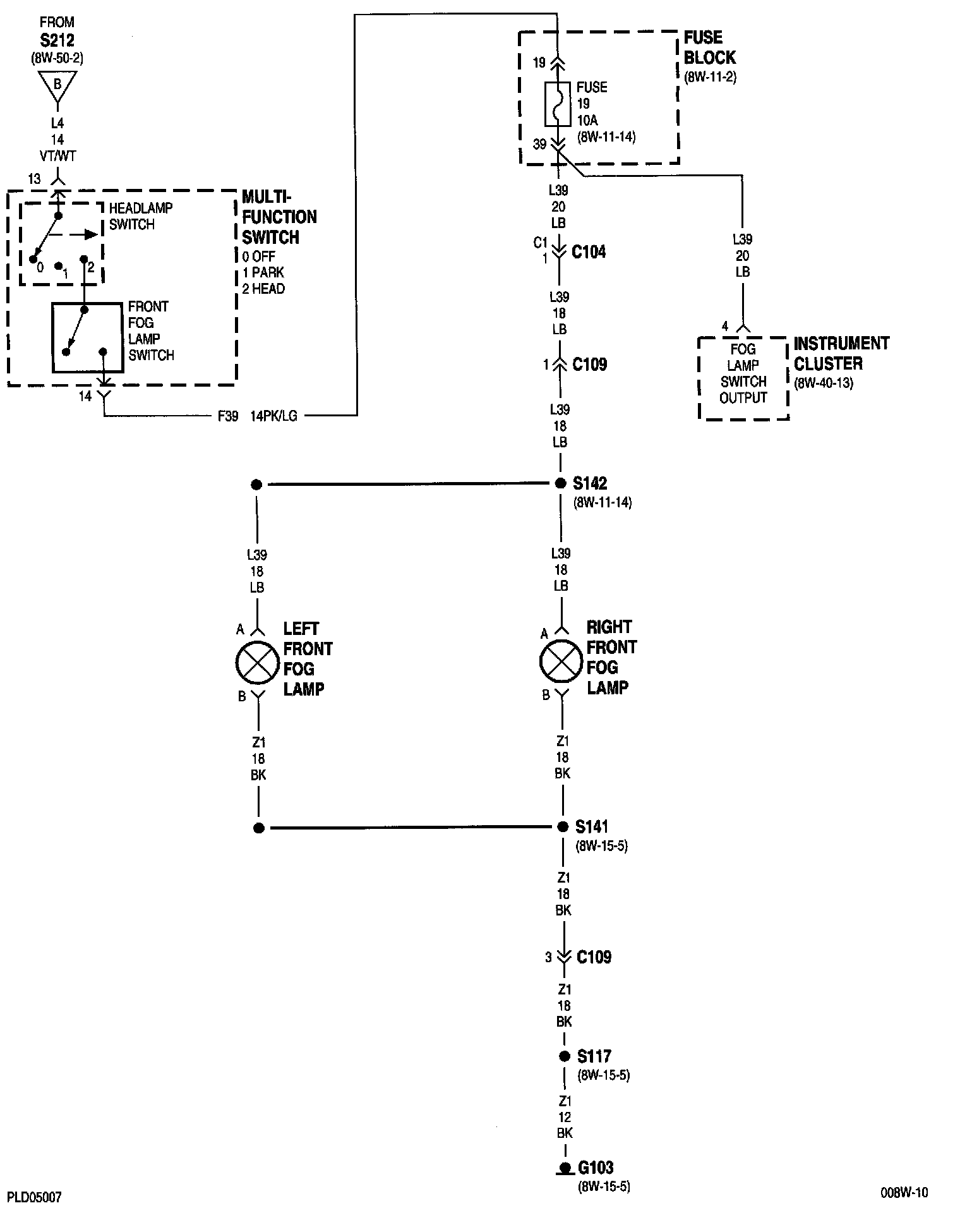

Front Lighting 8w-50-7:

Front Fog Lamp Switch
Fuse 19 (FB)
Fuse Block
G103
Headlamp Switch
Instrument Cluster
Left Front Fog Lamp
Multi-Function Switch
Right Front Fog Lamp


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
