Wiring Diagrams

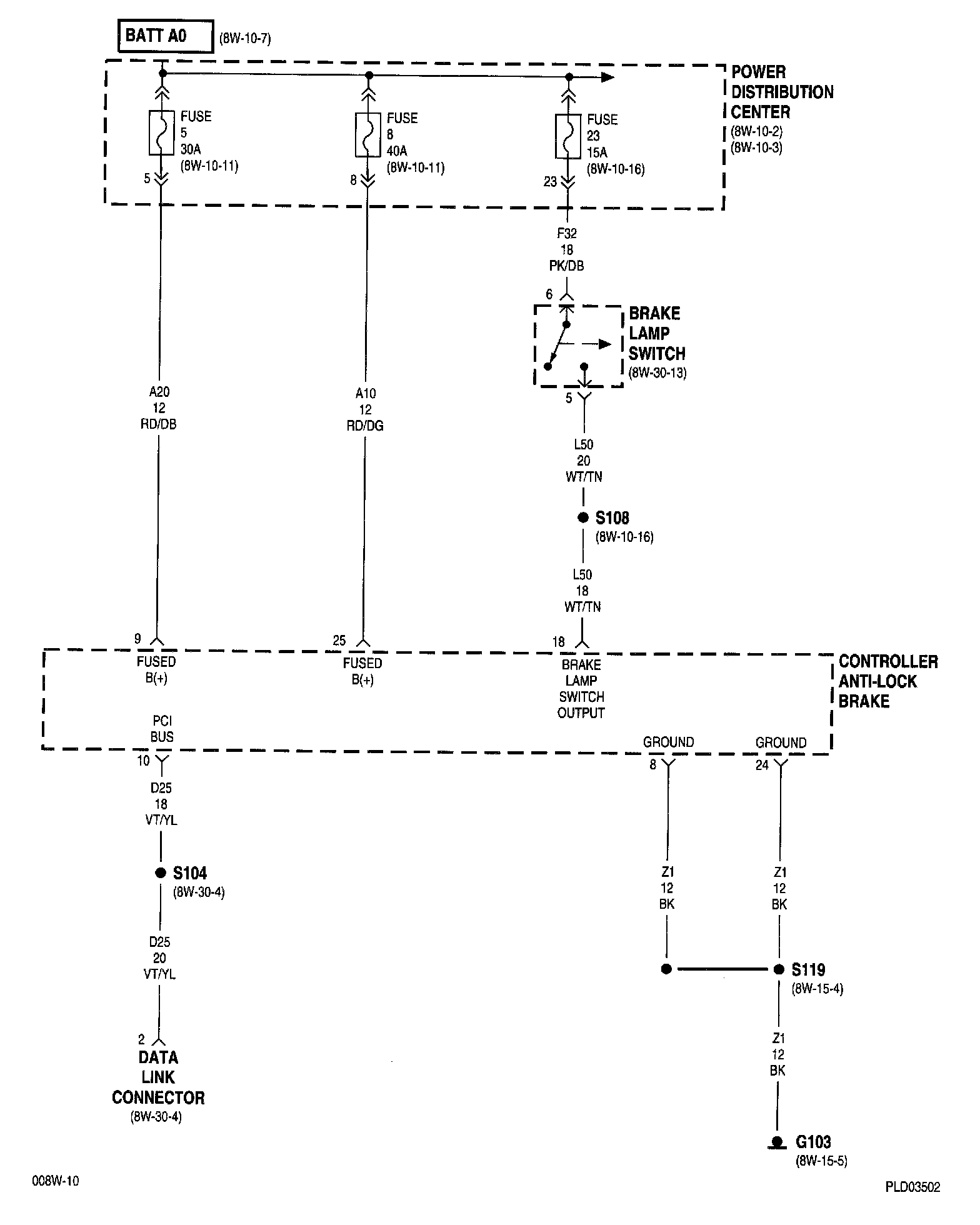

Anti-Lock Brakes 8w-35-2:

Brake Lamp Switch
Controller Anti-Lock Brake
Data Link Connector
Fuse 5 (PDC)
Fuse 8 (PDC)
Fuse 23 (PDC)
G103
Power Distribution Center

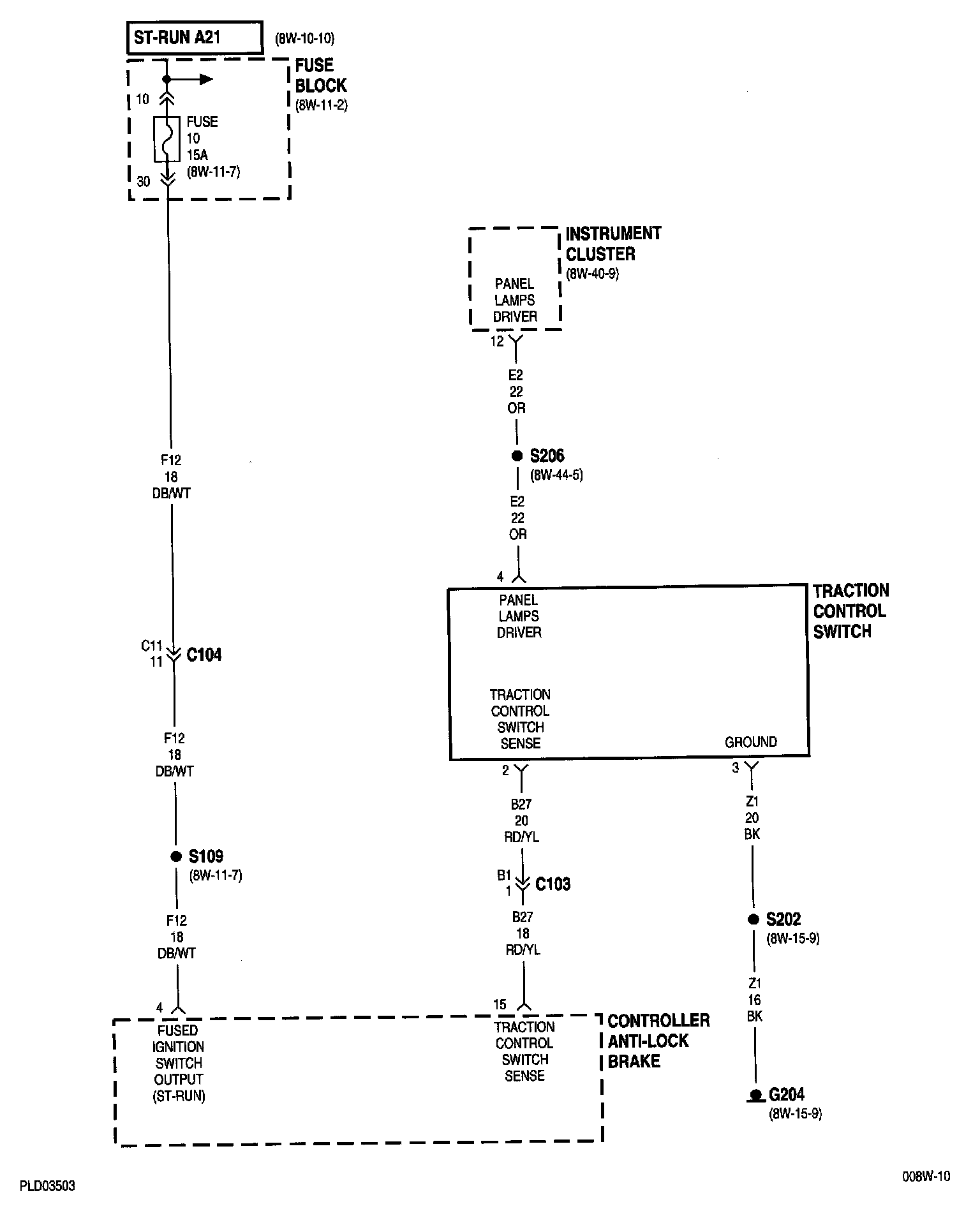

Anti-Lock Brakes 8w-35-3:

Controller Anti-Lock Brake
Fuse 10 (FB)
Fuse Block
G204
Instrument Cluster
Traction Control Switch

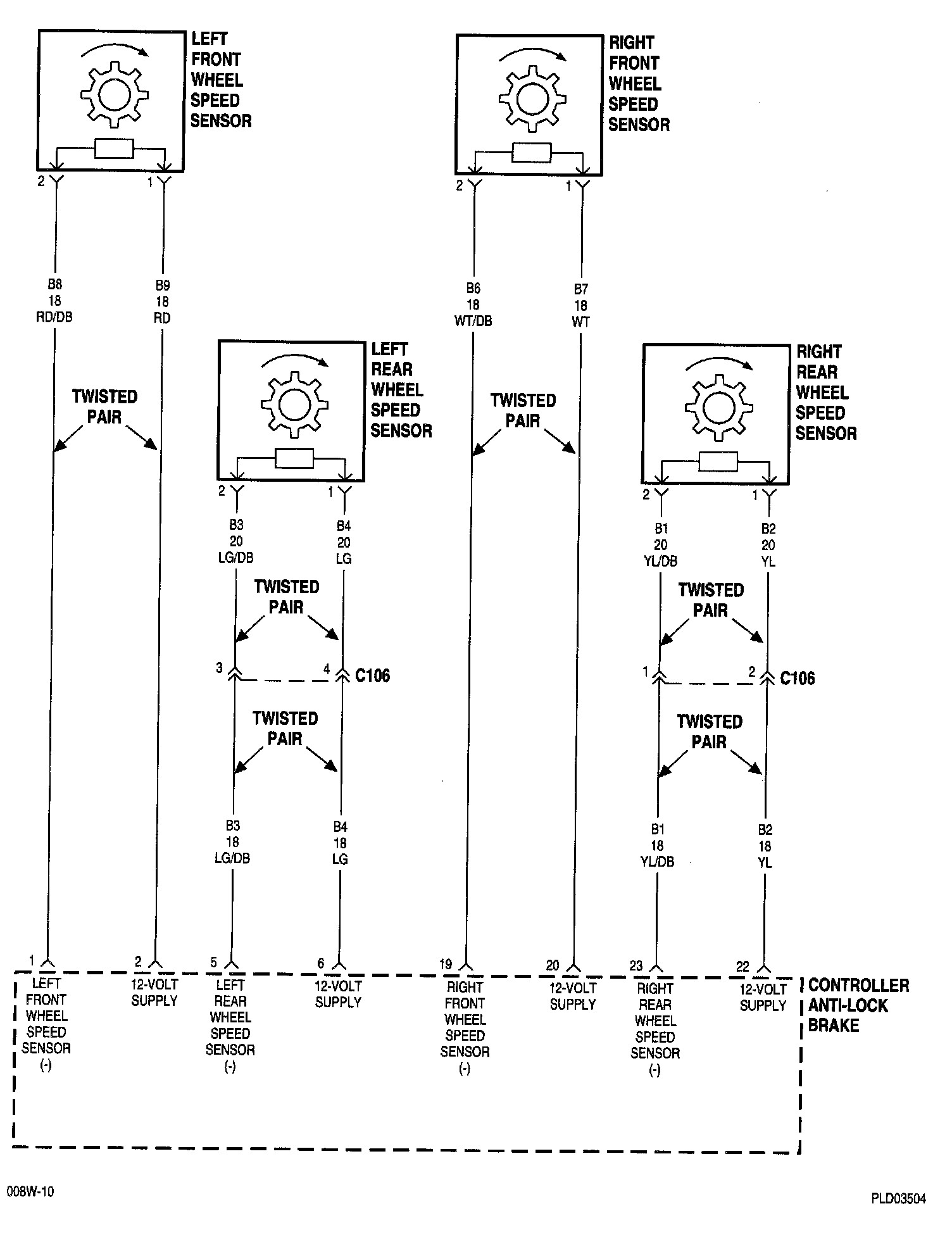

Anti-Lock Brakes 8w-35-4:

Controller Anti-Lock Brake
Left Front Wheel Speed Sensor
Left Rear Wheel Speed Sensor
Right Front Wheel Speed Sensor
Right Rear Wheel Speed Sensor


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
