Cruise Control Servo Cable: Service and Repair

REMOVAL
1. Disconnect the negative battery cable.
2. Remove the throttle cable cover.

Speed Control Cable:

3. Remove speed control cable from throttle lever by sliding clasp out of the hole.
4. Lift the retaining tab on the throttle cable and slide cable out of bracket. Lift the retaining tab on the speed control cable and slide cable out of bracket.
5. Disconnect electrical connector from servo.
6. Disconnect vacuum hose from servo

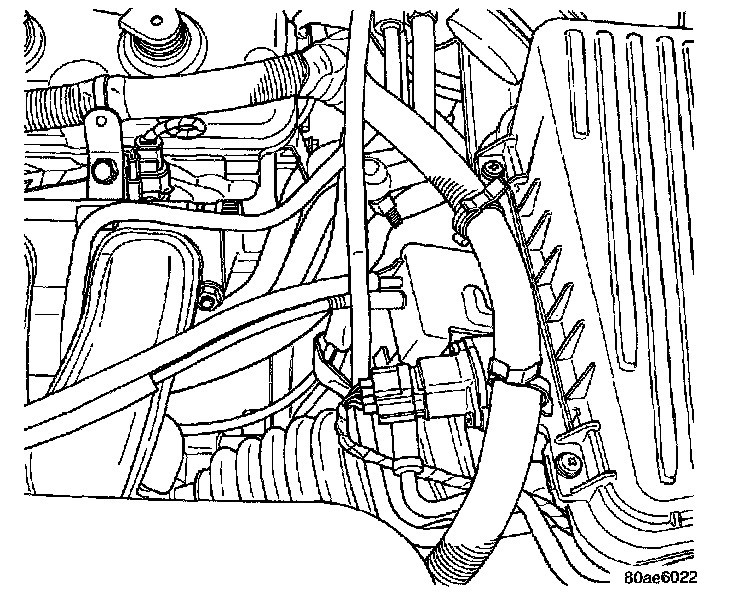

Speed Control Servo:

7. Remove 2 nuts retaining bracket to servo.
8. Remove push nuts holding cable housing to servo.
9. Remove retaining clip holding cable to servo.

INSTALLATION
1. Install retaining clip to cable at servo.
2. Slide cable bell housing over servo mounting studs.
3. Install servo mounting studs into bracket.
4. Install 2 nuts at cable to servo and servo bracket, tighten to 7 Nm (60 ins. lbs.).
5. Connect electrical connector to servo.
6. Connect vacuum hose to servo
7. Rotate the throttle lever forward to the wide open position and install speed control cable clasp.
8. Slide speed control cable into throttle cable bracket and engage retaining tab. Slide throttle cable into throttle cable bracket and engage retaining tab.
9. Install the Throttle cable cover.
10. Connect the negative battery cable.
