With ABS

MASTER CYLINDER






A vehicle equipped with ABS uses a different master cylinder than a vehicle that is not equipped with ABS. Vehicles equipped with ABS use a center port master cylinder with only two outlet ports.

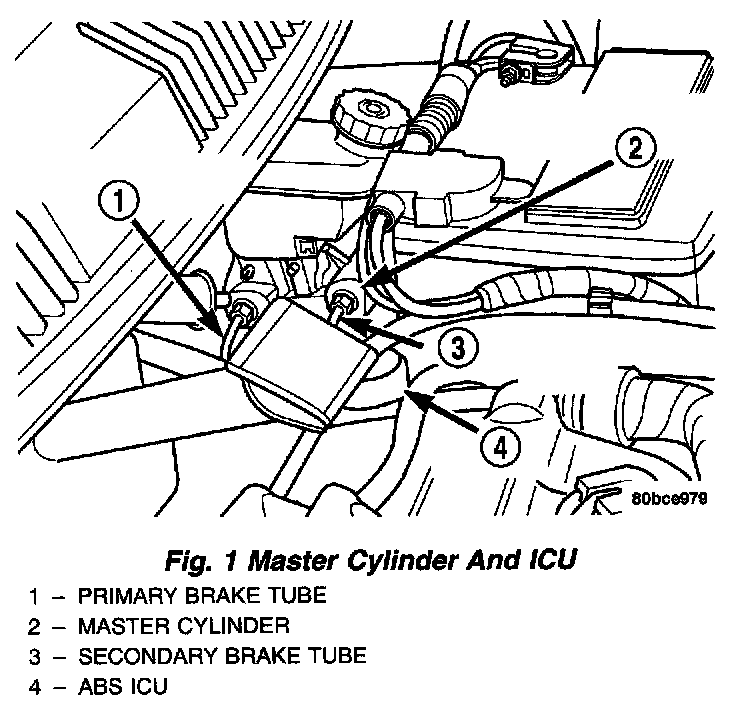

The brake tubes from the primary and secondary outlet ports on the master cylinder go directly to the integrated control unit (ICU).
The master cylinder mounts to the power brake booster in the same manner a non-ABS master cylinder does.
