Brake Shoe: Adjustments

1. Verify the parking brake lever is in the fully released position.
2. Raise the vehicle.






3. Remove the rear brake adjusting hole rubber plug from the rear brake shoe support plate.
4. Insert a brake adjustment tool, or a screwdriver, through the adjusting hole in support plate and against the star wheel of the adjuster screw. Move the handle of tool downward to adjust the brake drag. Rotate the tire and wheel assembly while adjusting the adjuster screw. Continue to adjust the shoes until a slight drag is noticed when the tire and wheel assembly is rotated.

NOTE: In the event the brake shoes are over-adjusted, the adjuster can be backed off using the following step. If not, proceed to step 6.

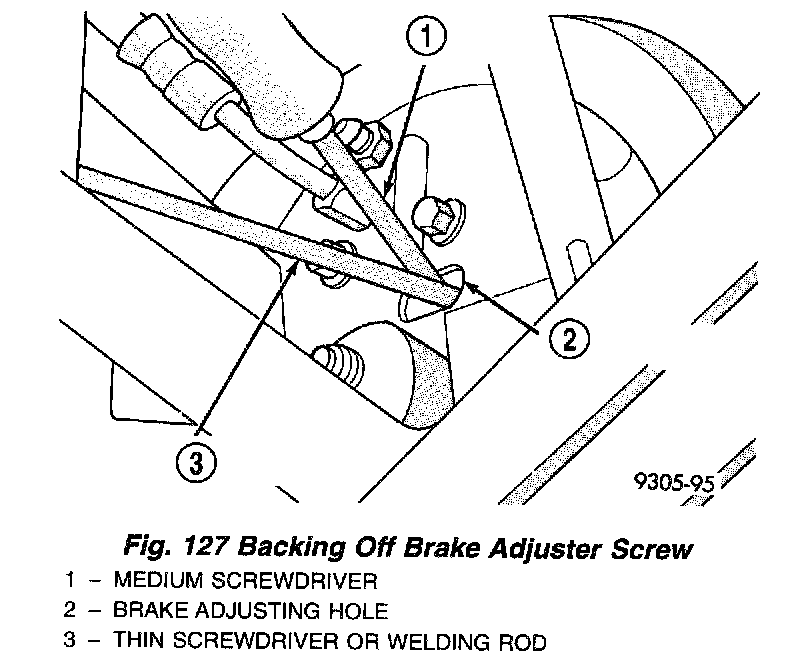

5. If the shoes are in the over-adjusted position, insert a thin screwdriver into brake adjusting hole and push back the adjusting lever out of engagement with star wheel. Take care not to bend the adjusting lever. While holding the adjusting lever out of engagement with star wheel, back off the star wheel until the tire and wheel assembly is free to turn without dragging. Repeat the adjustment procedure.
6. Install adjusting hole rubber plug.
7. Repeat the above adjustment procedure to the other side brakes.
8. Apply and release the park brake lever one time after the adjustment process is completed so the parking brakes can readjust themselves to the new brake shoe adjustment.
