Removal and Installation

REMOVAL

1. Raise the vehicle.
2. Remove the rear tire and wheel assembly from the vehicle.






3. Remove the brake drum retaining clips (if equipped).
4. Remove the brake drum.

NOTE: If the drum does not come off, further brake clearance can be obtained by backing off the brake automatic adjuster screw. Remove the rubber plug from the top of brake support plate. Rotate the automatic adjuster screw in an upward motion, using a screwdriver.

INSTALLATION

NOTE: Before installing the drum, inspect the brake shoe linings for wear, shoe alignment, and contamination.

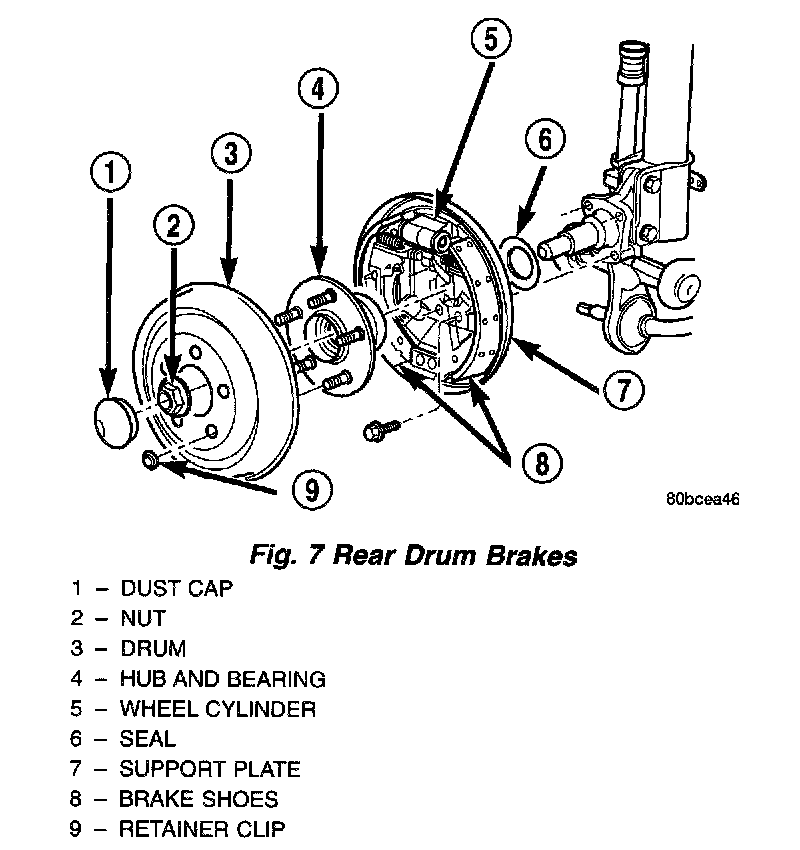

1. Install the rear brake drum on rear hub and bearing.
2. Install the tire and wheel assembly. Tighten the wheel mounting nuts to a torque of 135 Nm (100 ft. lbs.).
3. Adjust the rear brake shoes as necessary.
4. Lower the vehicle.
