Spoiler: Service and Repair

SPOILER

REMOVAL

1. Remove the decklid cover. Refer to Trim Panel.

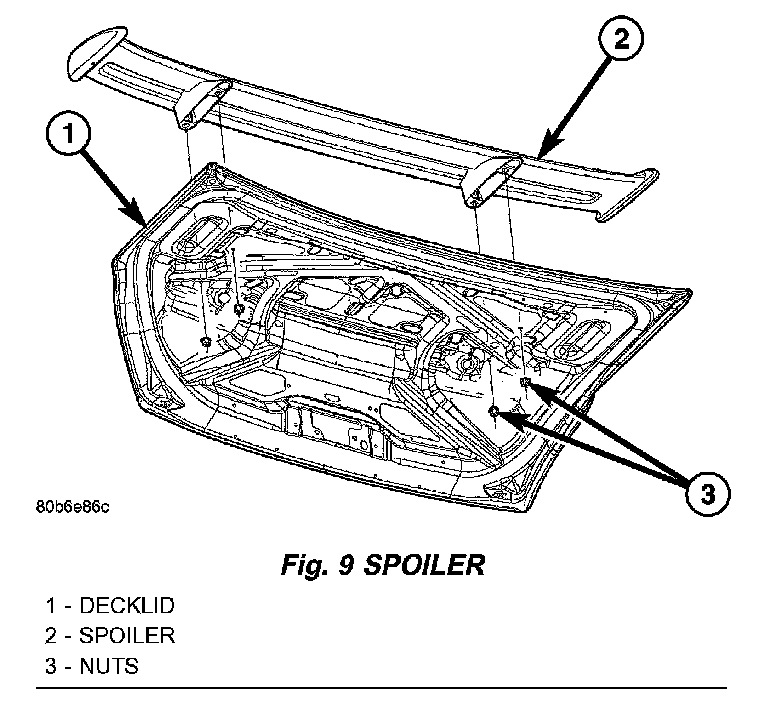

Fig. 9:

2. Remove the four nuts and remove the spoiler (Fig. 9).

INSTALLATION

1. Install the spoiler and nuts.
2. Tighten nuts to 3 N.m (30 in.lbs.).
3. Install the decklid cover.
