Rear Seat Cushion

REAR SEAT CUSHION

REMOVAL

1. Pull upward at each end of the rear seat cushion to disengage retainer loops from cups in floor.

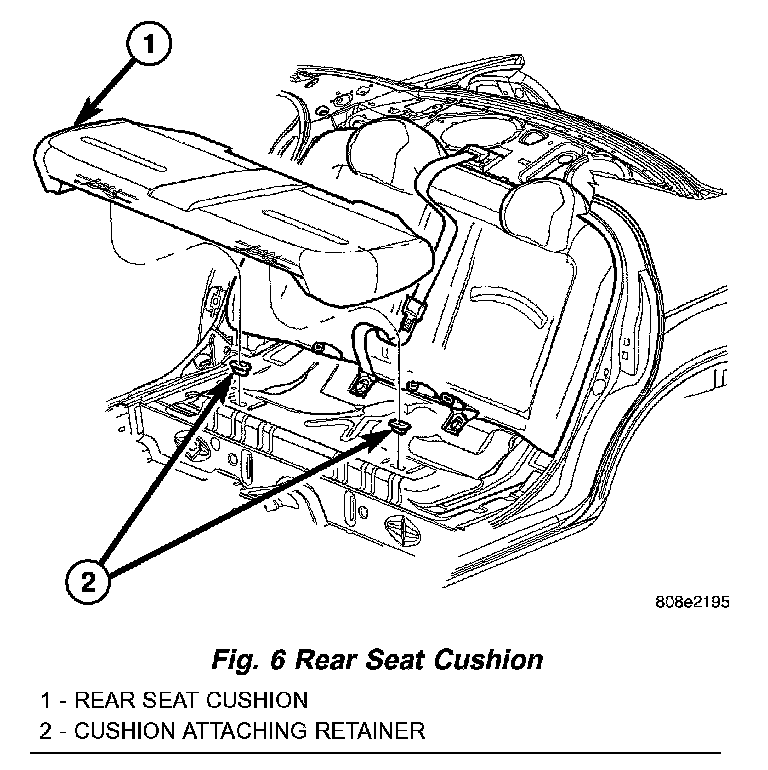

Fig. 6:

2. Remove rear seat cushion from vehicle (Fig. 6).

INSTALLATION

1. Place rear seat cushion in position under bottom of seat back.
2. Position inboard seat belts on top of seat cushion.
3. Guide seat cushion loops into retainer cups in floor pan.
4. Push downward on the front corners of the seat cushion to engage retainers.
