Front Seat Cushion
FRONT SEAT CUSHIONREMOVAL
1. Remove seat from vehicle.
2. Remove front seat cushion side shield.
3. Remove seat back.
4. Remove track and recliner assembly.

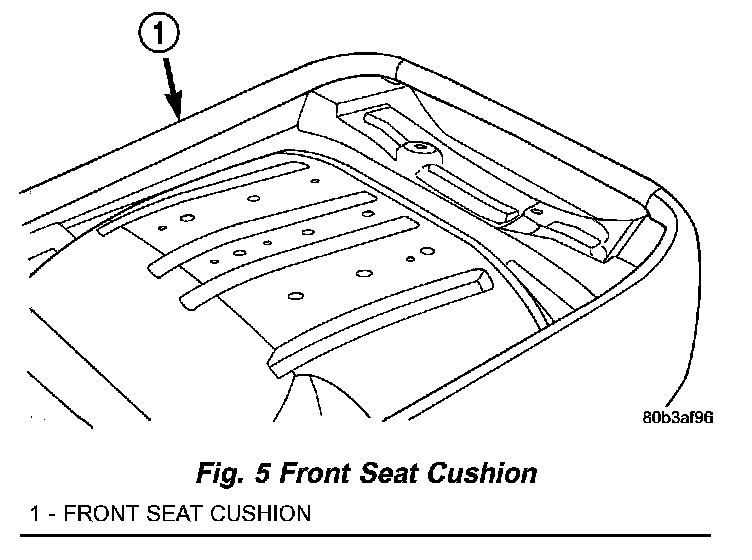

Fig. 5:
5. Remove seat cushion (Fig. 5).
INSTALLATION - FRONT SEAT CUSHION
1. Connect seat cushion heater element connector, if equipped.
2. Install track and recliner assembly. Tighten bolts to 12 N.m (9 ft.lbs.) torque.
3. Install seat back. Tighten bolts to 40 N.m (30 ft.lbs.) torque. (Fig. 5)
4. Install cushion side shields.
5. Install seat in vehicle.
