Sunroof / Moonroof Panel: Adjustments

ADJUSTMENTS

SUNROOF VENT POSITION

PLACING SUNROOF GLASS IN VENT POSITION

1. Remove the drive motor.
2. Remove sunroof glass panel.

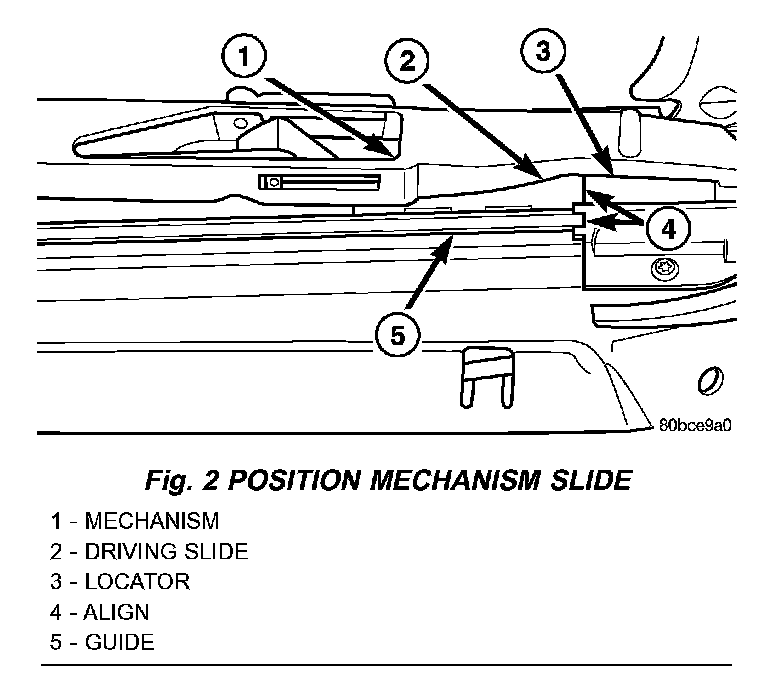

Fig. 2:

3. Slide the mechanism forward till the mechanism slide is parallel with the front edge of the guide (Fig. 2).

Fig. 3:

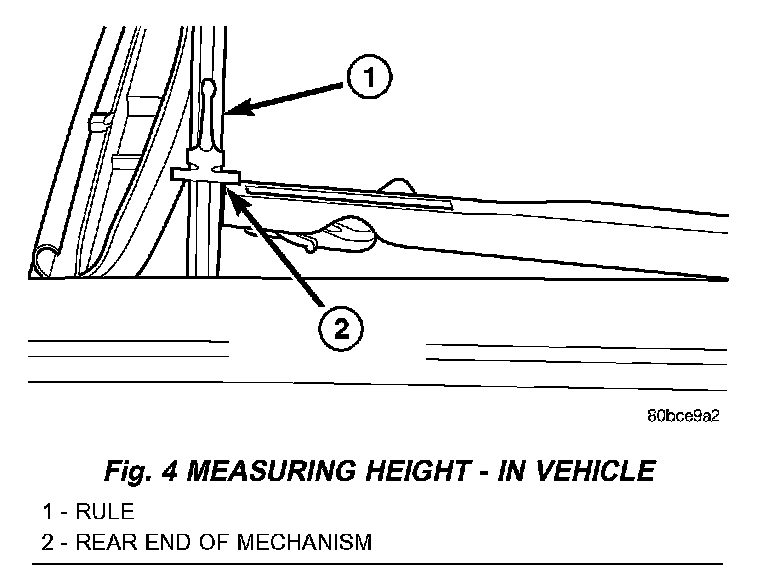

Fig. 4:

4. Using a rule, measure the rear end of the mechanism to the guide on each side of sun roof (Fig. 3) or (Fig. 4).
5. Initial height should be 44 to 48 mm. Adjust mechanism so that both sides are ± 1.0 mm of each other.
6. Install drive motor.
7. Install sunroof panel.
8. Ensure glass adjustment.

RE-POSITIONING DRIVE MOTOR

If the drive motor is not in the correct position it can be adjusted to the correct position when the sunroof glass is in the vent position. Remove the drive motor from the sunroof module, reconnect the wires to the motor and press the motor switch to the vent position. This should place the drive motor into the vent position. The motor may now be installed if the sunroof glass panel is in the vent position.

ADJUSTMENTS - SUNROOF GLASS

FLUSHNESS

1. Position sunshade in full rearward position. Place the glass panel in the full closed position.
2. To adjust front of glass:
a. Loosen front and middle glass attachment screws.
b. Adjust front of sunroof glass panel so that the corners are flush to 1.0 mm below the top surface of the roof panel.
c. Tighten all glass attachment screws.

3. To adjust rear of glass;
a. Loosen rear and middle glass attachment screws.
b. Adjust rear of sunroof glass panel so that the corners are flush to plus 1.0 mm off the top surface of the roof panel.
c. Tighten all glass attachment screws.

CENTERING SUNROOF GLASS ADJUSTMENT

Fig. 5:

Using a business card, check sunroof glass for center in opening (Fig. 5). Move business card around the glass seal, noting area where there is less pressure on the card. Loosen glass attaching screws adjust as necessary.
