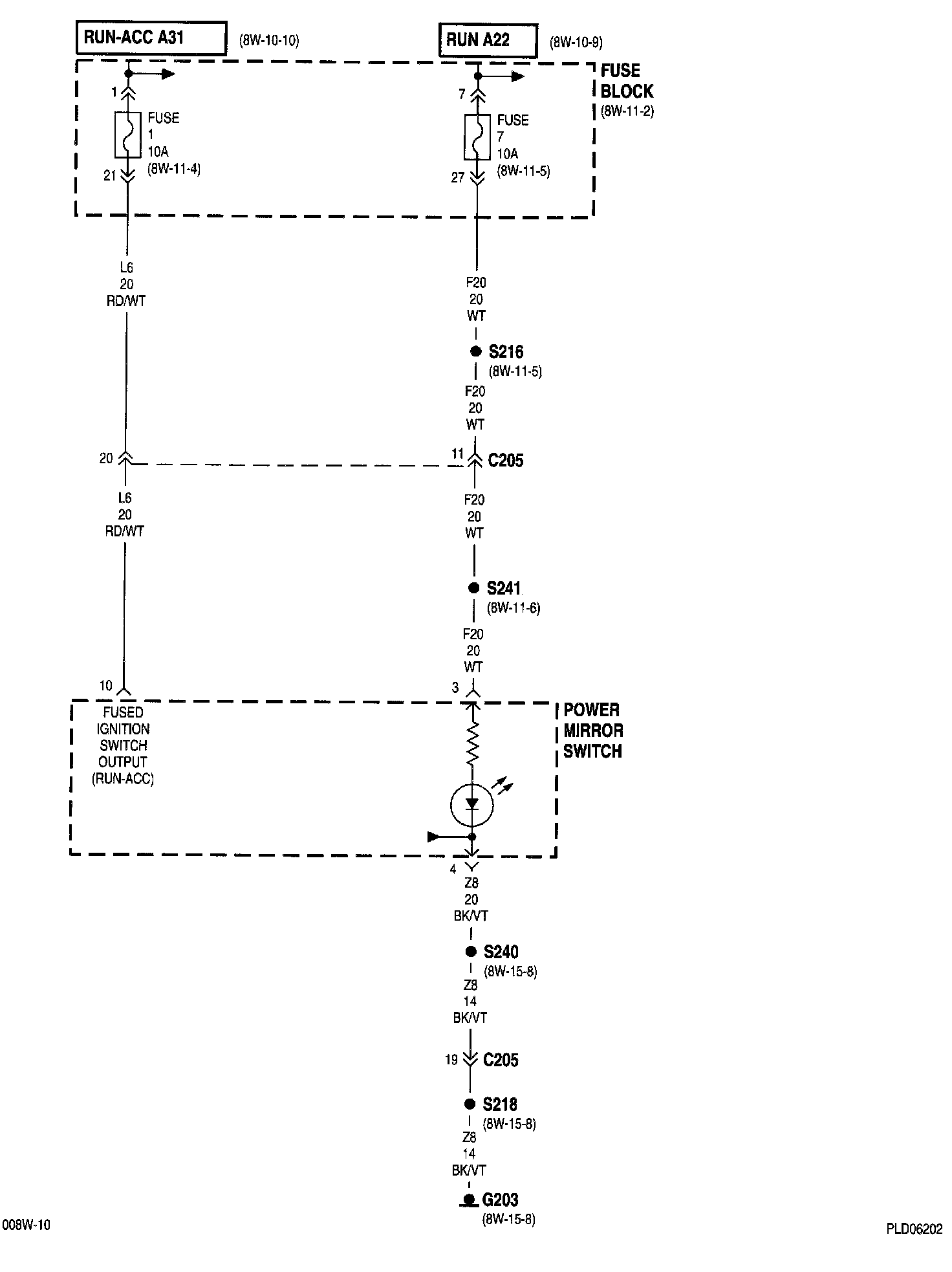

Power Mirrors 8w-62-2:

Fuse 1 (FB)
Fuse 7 (FB)
Fuse Block
G203
Power Mirror Switch

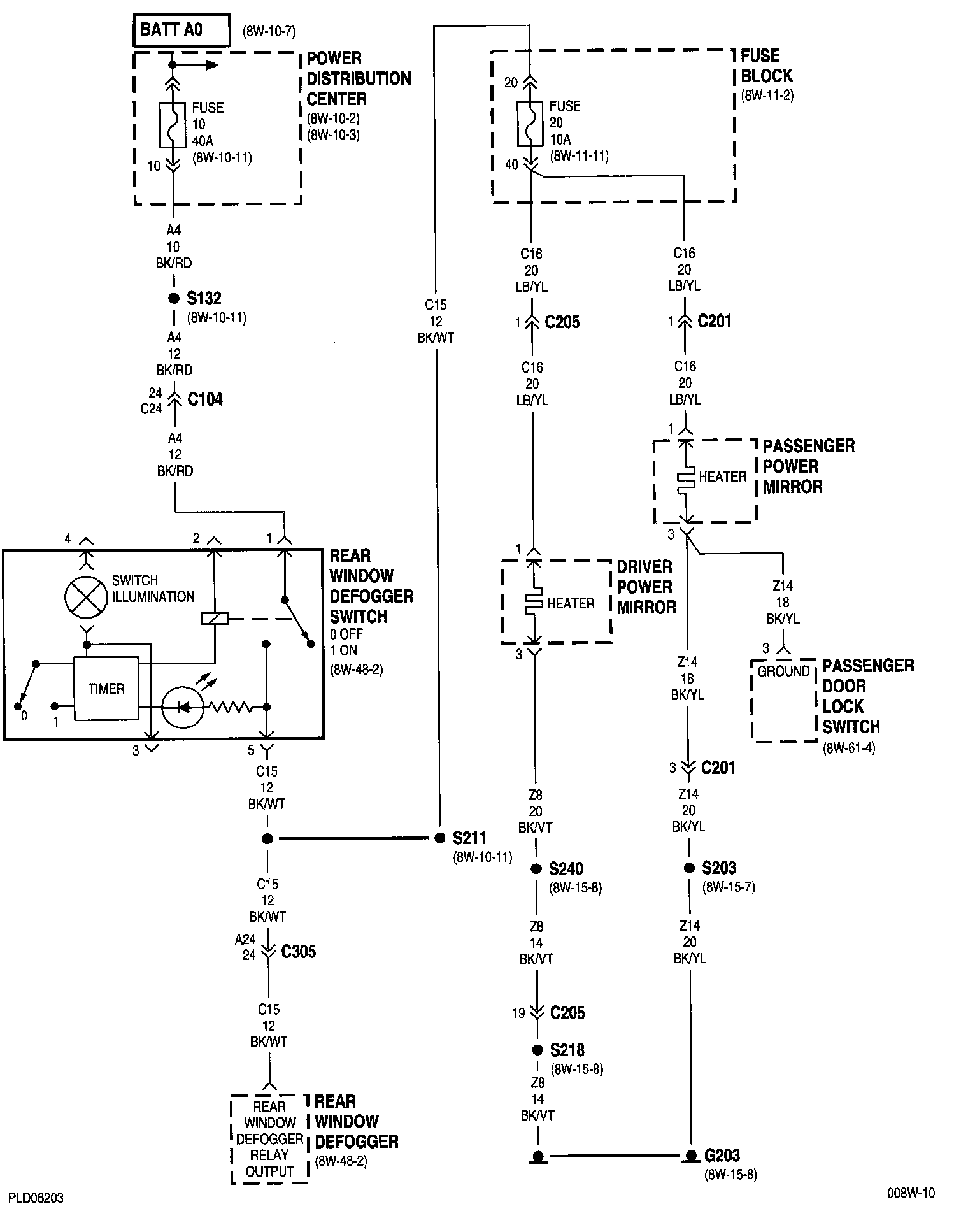

Power Mirrors 8w-62-3:

Driver Power Mirror
Fuse 10 (PDC)
Fuse 20 (FB)
Fuse Block
G203
Passenger Door Lock Switch
Passenger Power Mirror
Power Distribution Center
Rear Window Defogger
Rear Window Defogger Switch

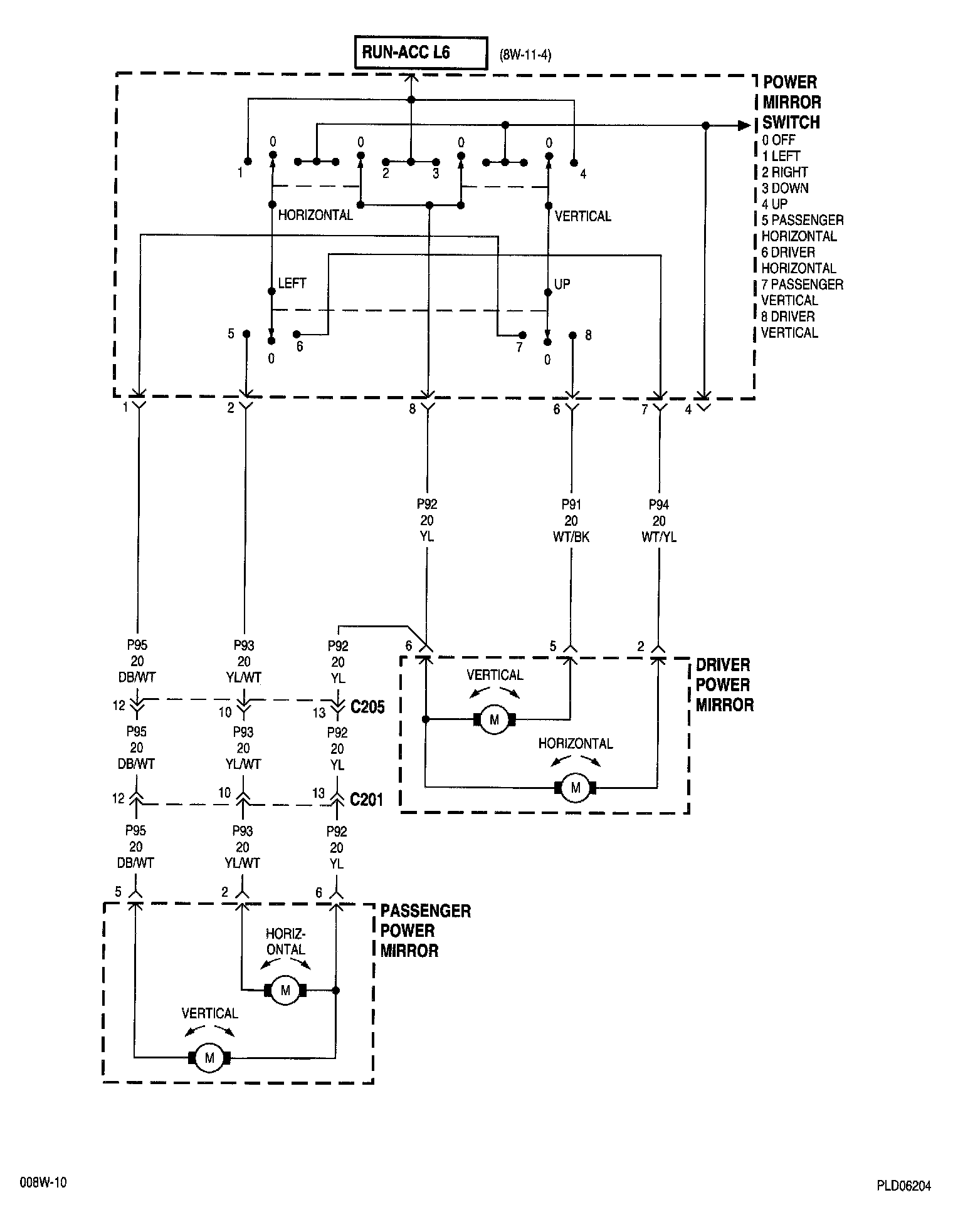

Power Mirrors 8w-62-4:

Driver Power Mirror
Passenger Power Mirror
Power Mirror Switch
