Electrical Diagrams

Vehicle Theft Security:

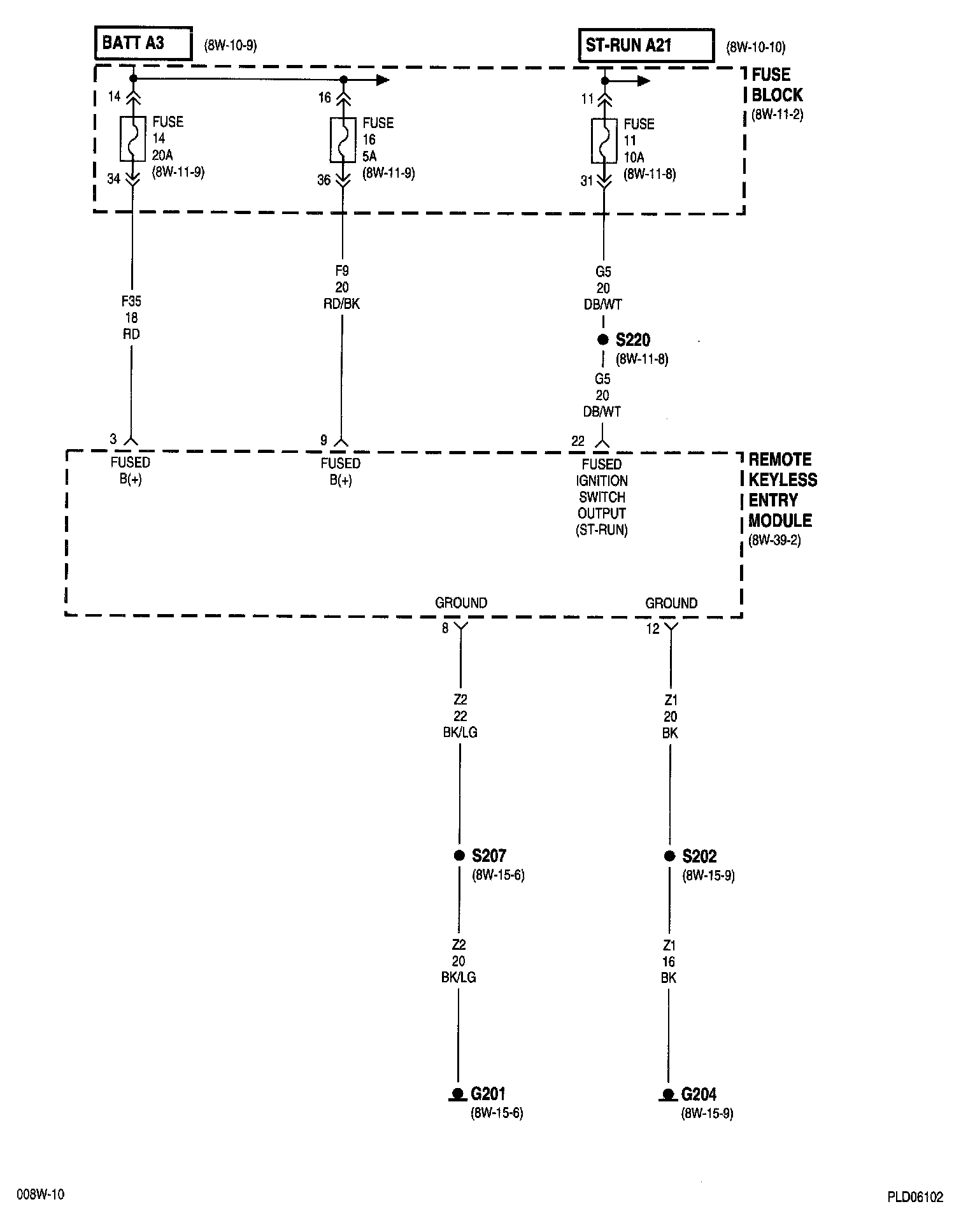

Power Door Locks 8w-61-2:

Fuse 11 (FB)
Fuse 14 (FB)
Fuse 16 (FB)
Fuse Block
G201
G204
Remote Keyless Entry Module

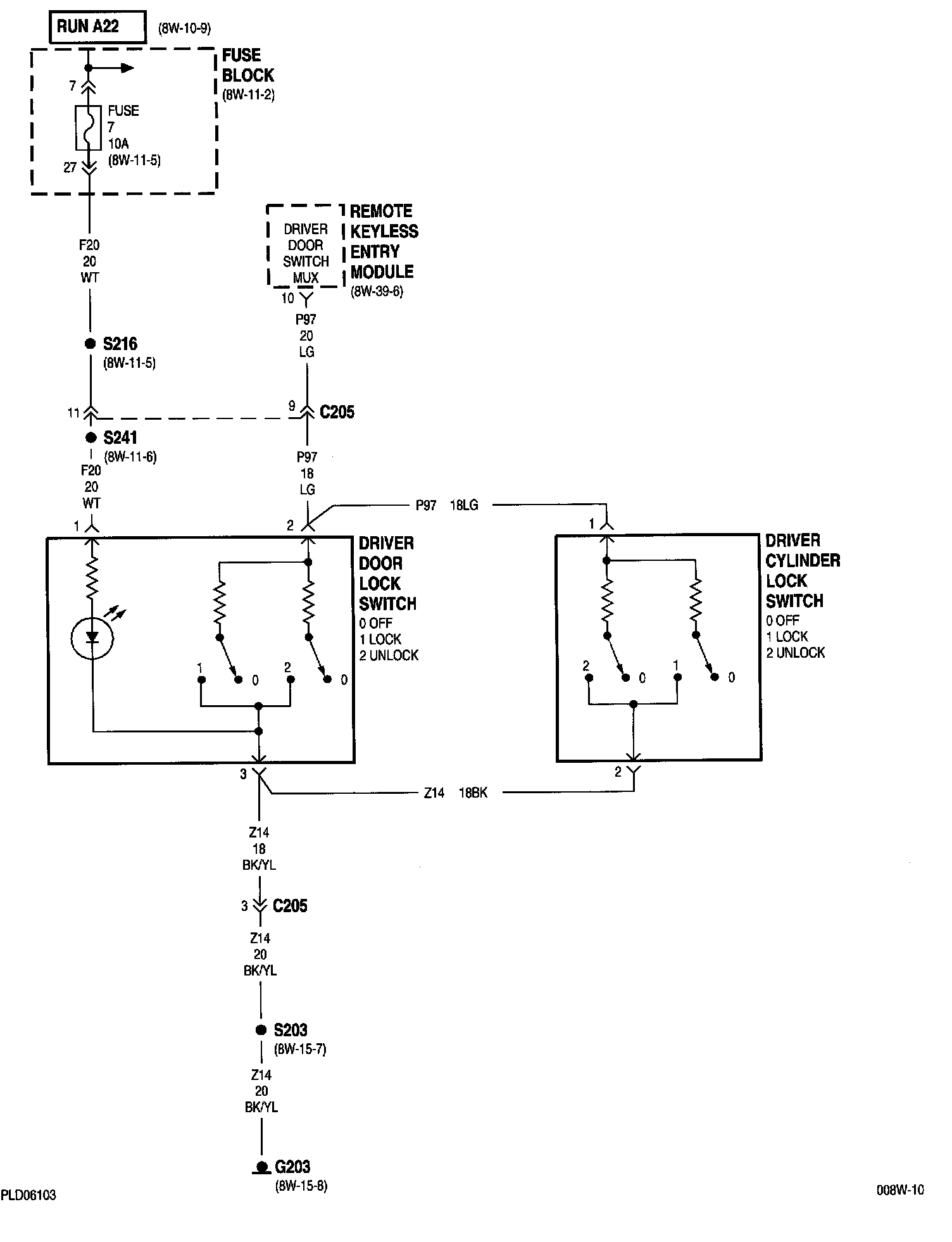

Power Door Locks 8w-61-3:

Driver Cylinder Lock Switch
Fuse 7 (FB)
Fuse Block
G203
Remote Keyless Entry Module

Power Door Locks 8w-61-4:

Fuse 7 (FB)
Fuse Block
G203
Passenger Cylinder Lock Switch
Passenger Door Lock Switch
Passenger Power Mirror
Passenger Power Window Switch
Remote Keyless Entry Module

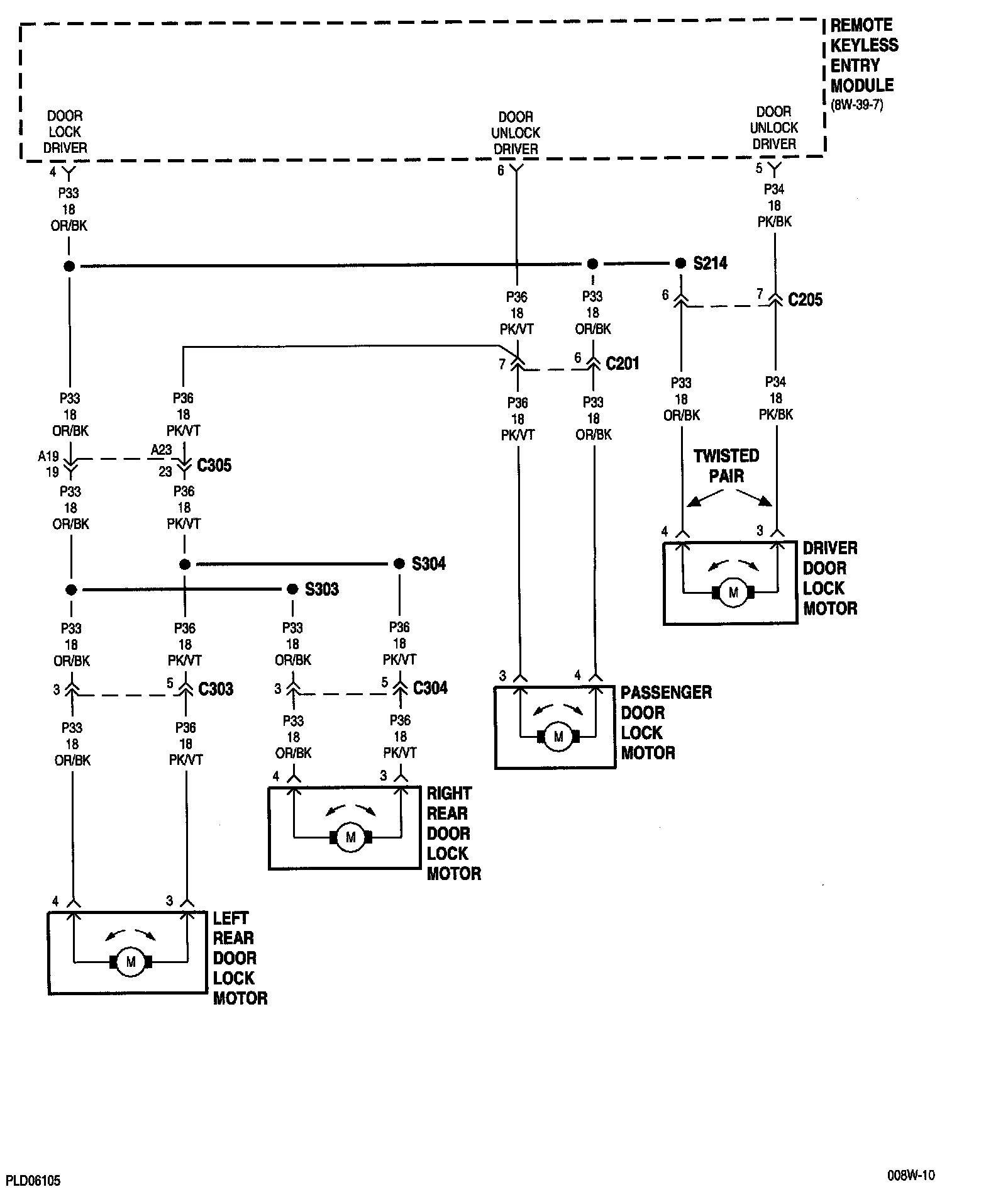

Power Door Locks 8w-61-5:

Driver Door Lock Motor
Left Rear Door Lock Motor
Remote Keyless Entry Module
S214
S303
S304

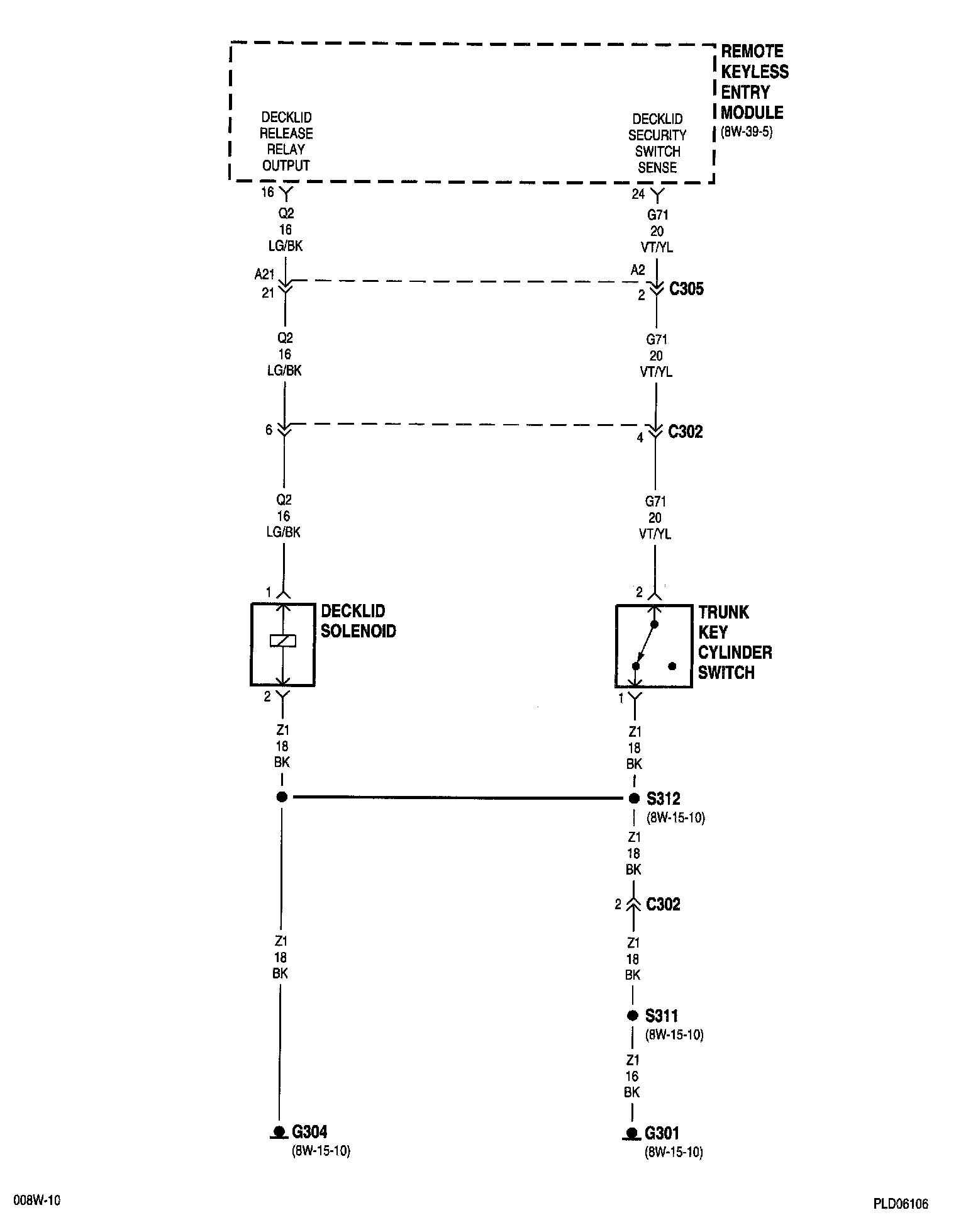

Power Door Locks 8w-61-6:

Decklid Solenoid
G301
G304
Remote Keyless Entry Module
Trunk Key Cylinder Switch


NOTE: To view sheets referred to in these diagrams, see Complete Body and Chassis Diagrams.
