Door Lock Cylinder: Service and Repair

LOCK CYLINDER

REMOVAL

1. Remove door trim panel and water dam.
2. Close door glass.
3. Disconnect door lock rod from latch.
4. Remove clip attaching lock cylinder to door handle.

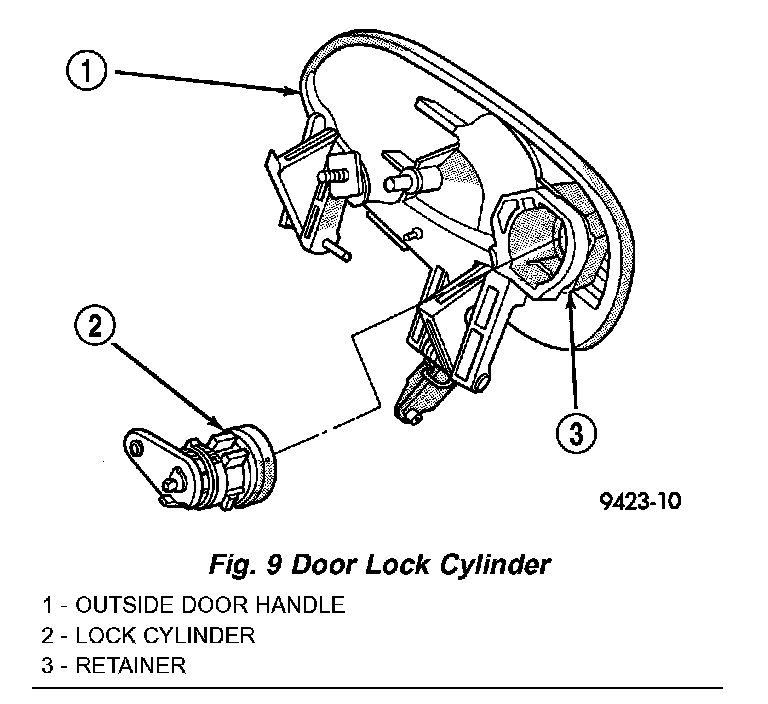

Fig. 9:

5. Pull lock cylinder from door handle (Fig. 9).

INSTALLATION

1. Push lock cylinder into door handle.
2. Install clip attaching lock cylinder to door handle.
3. Connect door lock rod from latch.
4. Install door trim panel and water dam.
