Lower Quarter Trim Panel

LOWER QUARTER TRIM

REMOVAL

1. Remove upper quarter trim panel.
2. Remove rear seat cushion and back.
3. Disengage clips attaching trim to lower quarter panel.
4. Remove seat belt from slot in trim panel.

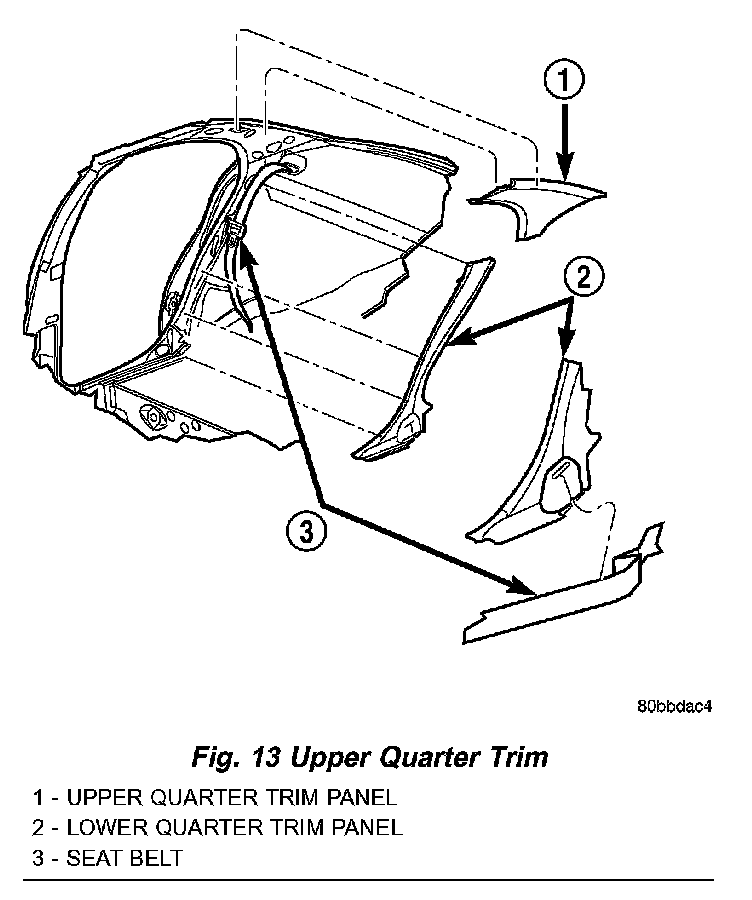

Fig. 13:

5. Remove lower quarter trim from vehicle (Fig.13).

INSTALLATION

1. Position lower quarter trim panel to vehicle.
2. Install seat belt to slot in trim panel.
3. Align locating pins on backside of trim panel to mating holes in inner quarter panel.
4. Press clips on trim panel into slots in inner quarter panel.
5. Install rear seat back and cushion.
6. Install upper quarter trim panel.
