B-Pillar Trim
B-PILLAR TRIMREMOVAL
Fig. 2:
1. Remove bolt attaching lower seat belt anchor to floor pan kick-up (Fig. 2).
2. Remove shoulder belt height control knob.
3. Remove turning loop cover.
4. Remove bolt and remove the turning loop.

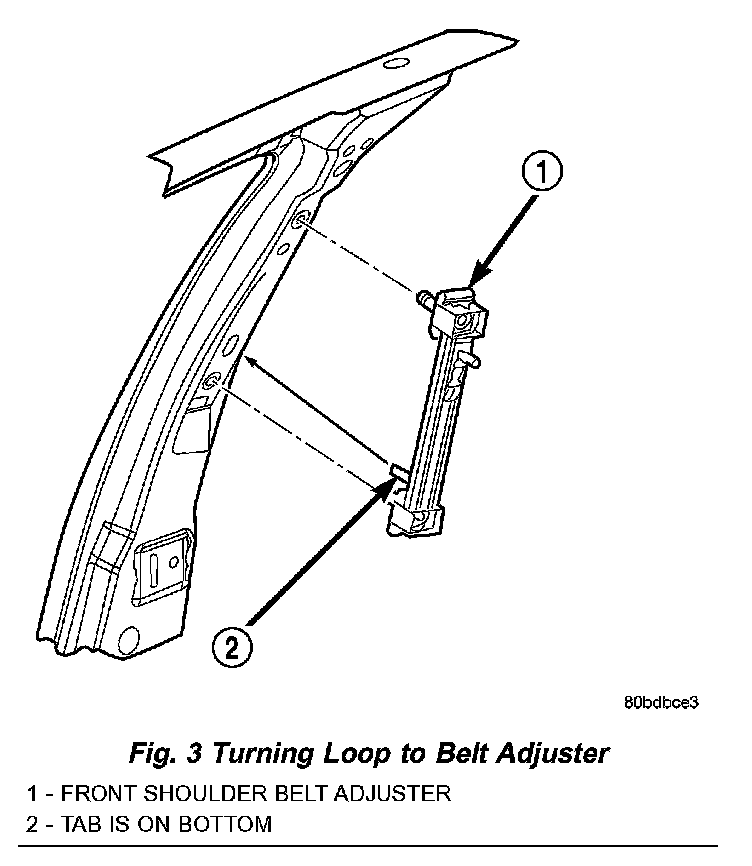

Fig. 3:
5. Remove bolt attaching turning loop to belt adjuster (Fig. 3).
6. Remove access cover from B-pillar trim.
7. Disengage clips attaching trim to B-pillar.
8. Feed seat belt turning loop and seat belt through trim panel.
9. Remove B-pillar trim from vehicle.
INSTALLATION
NOTE: Tighten all seat belt bolts to 40 N.m (30 ft.lbs.) torque.
1. Position B-pillar trim panel near B-pillar.
2. Feed seat belt turning loop and seat belt through trim panel.
3. Align locating pins on backside of trim panel to mating holes in B-pillar.
4. Push clips on trim panel into slots in B-pillar.
5. Install access cover to B-pillar trim.
6. Install bolt attaching turning loop to belt adjuster.
7. Install the turning loop cover.
8. Move adjuster in to the lowest position.
9. Install shoulder belt height control knob.
10. Install bolt attaching lower seat belt anchor to floor pan kick-up.
