A-Pillar Trim

A-PILLAR TRIM

REMOVAL

1. Disengage clips holding trim to A-pillar.

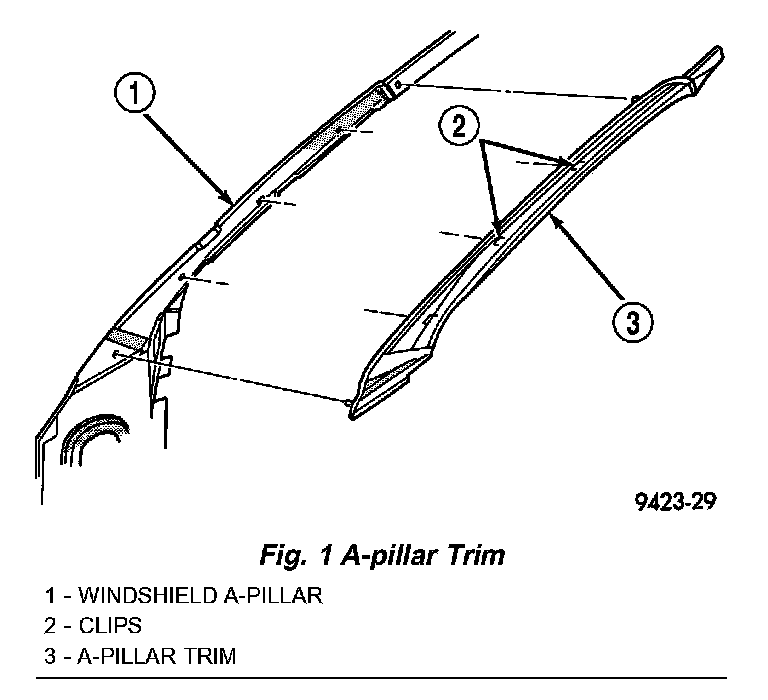

Fig. 1:

2. Separate A-pillar trim from vehicle (Fig. 1).

INSTALLATION

1. Position A-pillar trim panel to A-pillar.
2. Align locating pins on backside of trim panel to mating holes in A-pillar.
3. Push clips on trim panel into slots in A-pillar.
