Door Sill Trim Panel

DOOR SILL TRIM

REMOVAL

1. Open door to gain access to sill trim.
2. Disengage clips attaching sill trim to door sill and door opening flange.

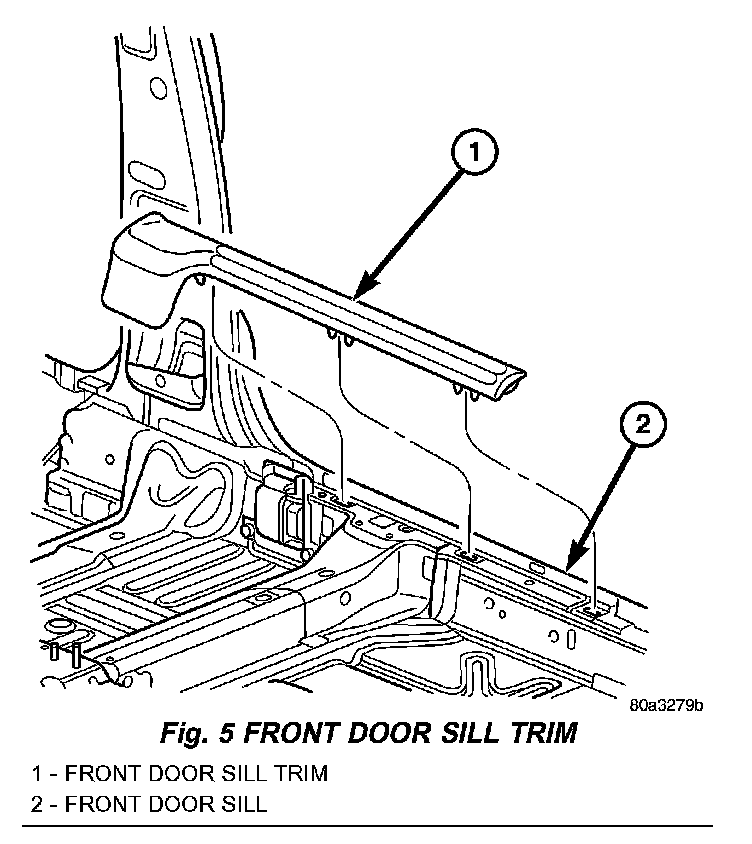

Fig. 5:

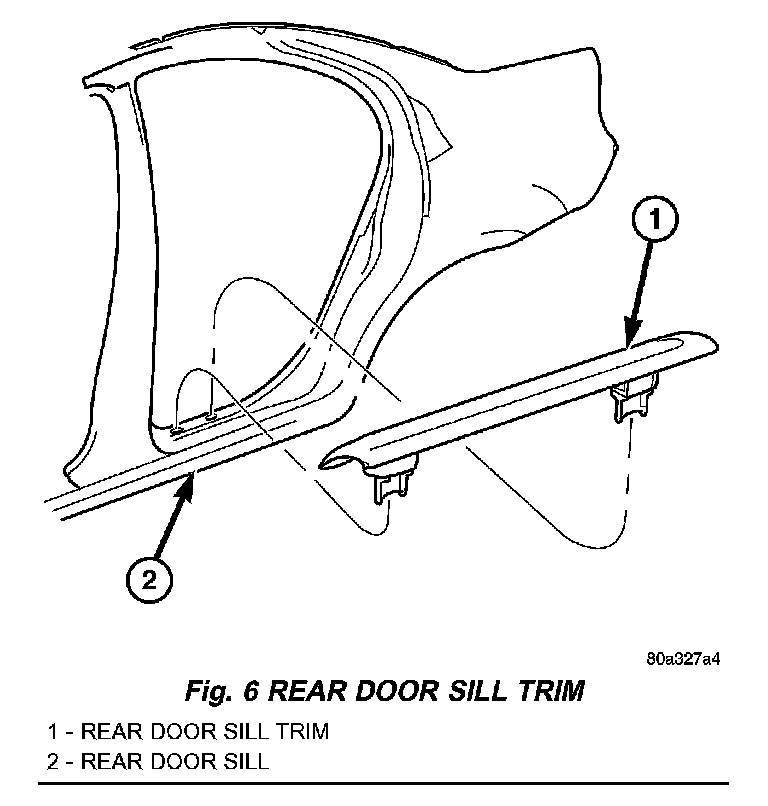

Fig. 6:

3. Remove door sill trim from vehicle (Fig. 5) and (Fig. 6).

INSTALLATION

1. Position door sill trim on door sill.
2. Align locating pins on backside of trim panel to holes in door sill.
3. Engage clips on trim panel into slots in door sill.
4. Engage clips on trim panel onto door opening flange.
5. Press downward on trim panel to fully engage all clips.
