Cowl Trim

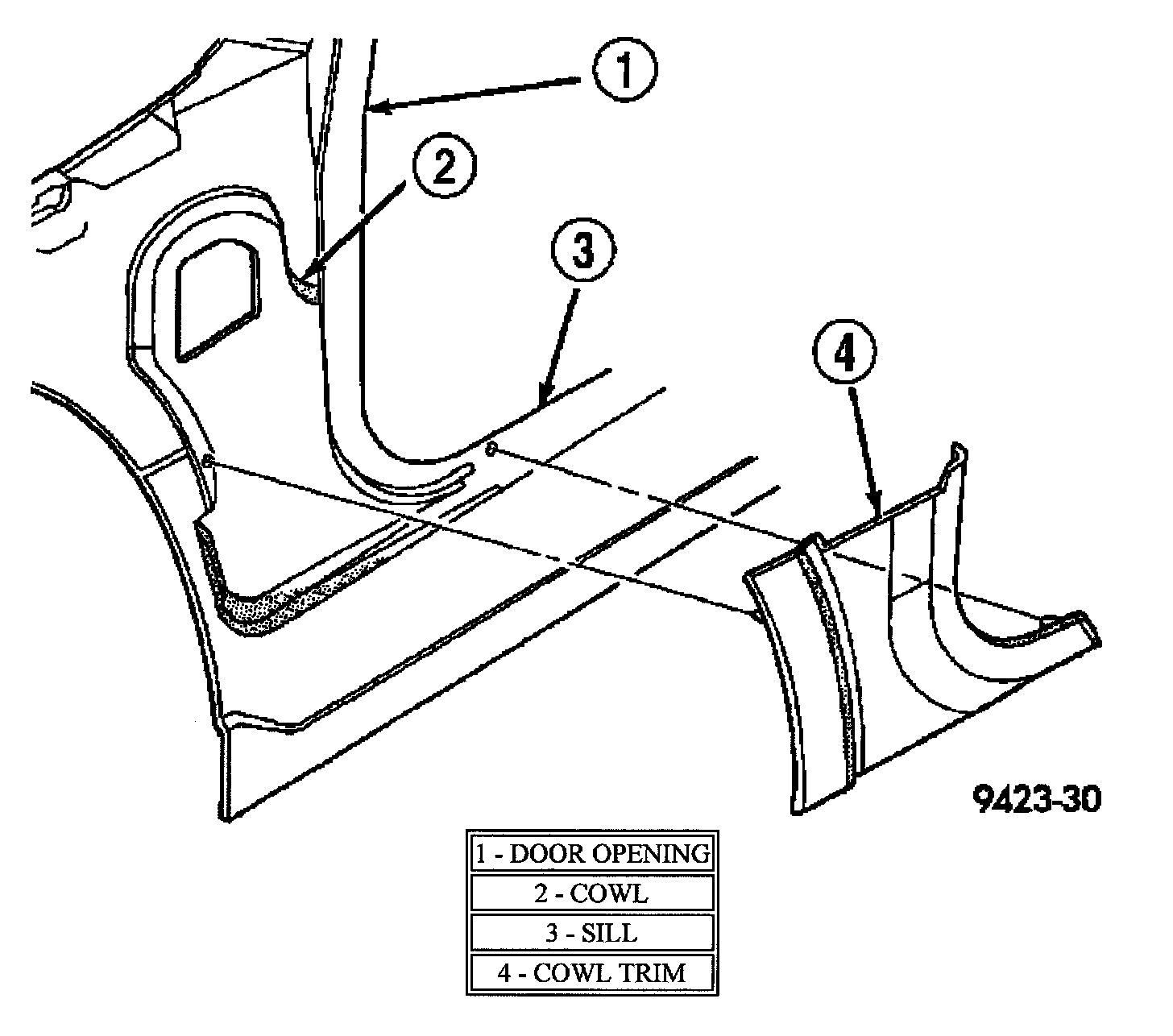

SIDE COWL TRIM

REMOVAL





1. Disengage clips attaching cowl trim to cowl side panel.
2. Remove cowl trim from vehicle.

INSTALLATION

1. Position cowl trim panel to inner cowl panel.
2. Align locating pins on backside of cowl trim panel to mating holes in inner cowl panel.
3. Push clips on trim panel into slots in inner cowl panel.
