Steering Column Trim/Bracket Replacement

REMOVAL
1. Remove lower instrument panel cover. Lower Instrument Panel Cover Replacement
2. Remove instrument cluster bezel. Instrument Cluster Bezel Replacement
3. Remove two column shroud retaining screws.

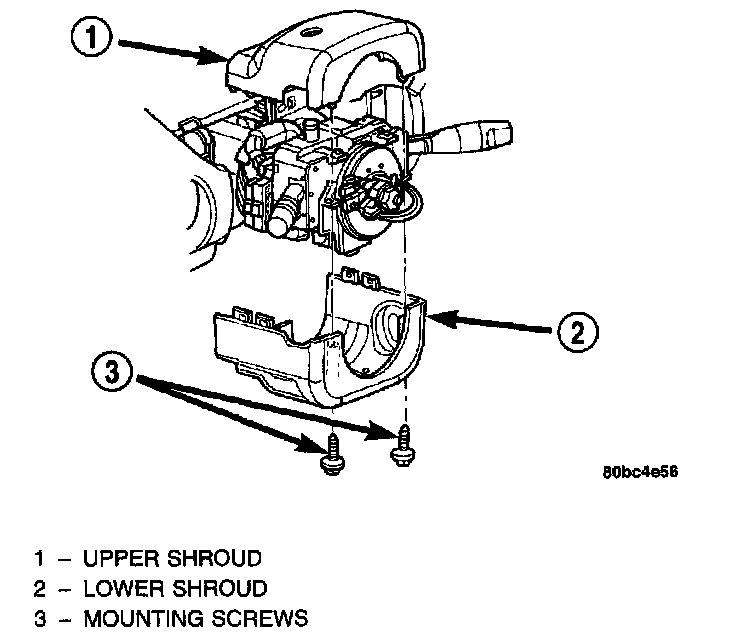

Steering Column Shrouds:

4. Separate upper and lower steering column shrouds and remove from vehicle.

INSTALLATION
For installation, reverse the above procedures.
