Removal and Replacement

FLOOR CONSOLE

REMOVAL

1. Fully apply parking brake.
2. Remove screw cover plugs over screws just rearward of cup holders.

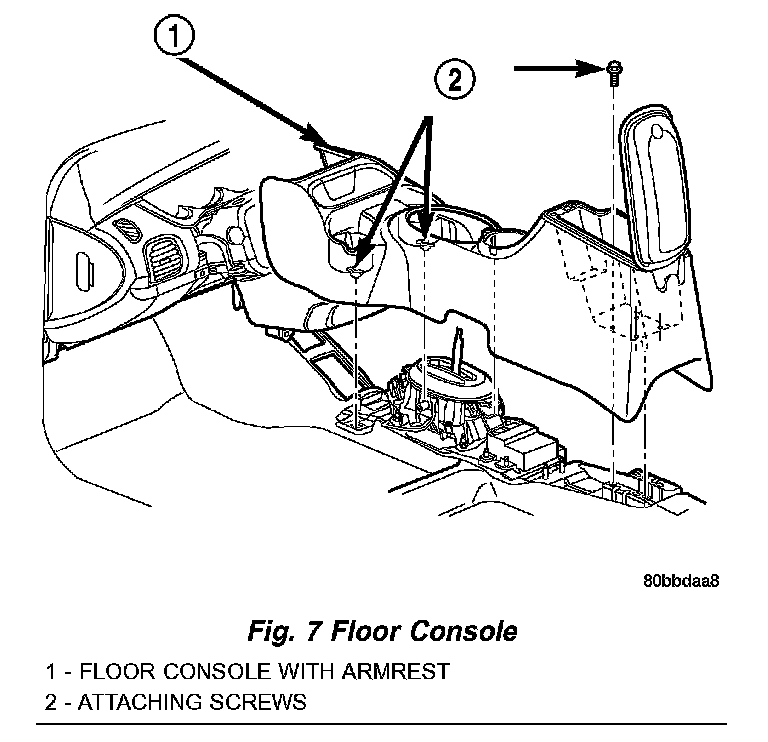

Fig. 7:

3. Remove screws in cup holders attaching console to floor bracket (Fig. 7).
4. Open console storage compartment lid, if so equipped.
5. Remove screws attaching console to floor bracket.
6. Remove shift lever knob, if vehicle is equipped with a manual transmission.
7. Lift console upward over gear selector and park brake handle.
8. Remove console from vehicle.

INSTALLATION

1. Place floor console into position in vehicle.
2. Install screws attaching console to floor brackets.
3. Install shift lever knob, if vehicle is equipped with a manual transmission.
4. Release parking brake.
