Trunk / Liftgate Latch Release Cable: Service and Repair

EMERGENCY RELEASE CABLE

REMOVAL

1. Remove the decklid cover. Refer to Trim Panel.

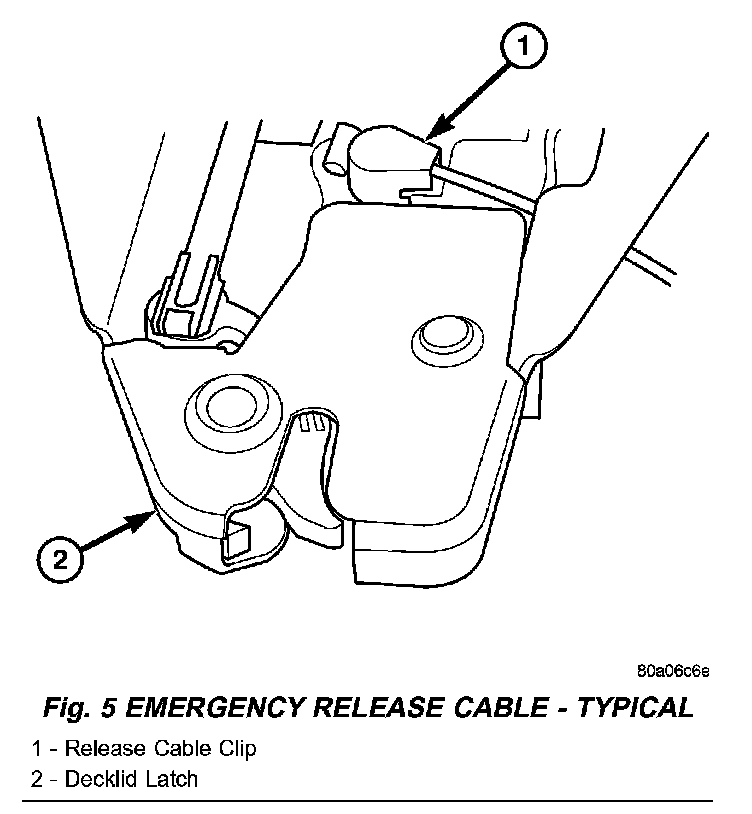

Fig. 5:

2. Unclip cable and handle assembly (Fig. 5).

INSTALLATION

1. Attach emergency release cable clip to the latch stud.
2. Install the decklid cover.
