Trunk / Liftgate: Service and Repair

DECKLID

REMOVAL

1. Open decklid.
2. Mark bolt locations on inside of decklid to aid installation.
3. Disengage clips attaching wire harness and decklid release cable to decklid.
4. Disconnect wire connector and release cable from decklid latch.

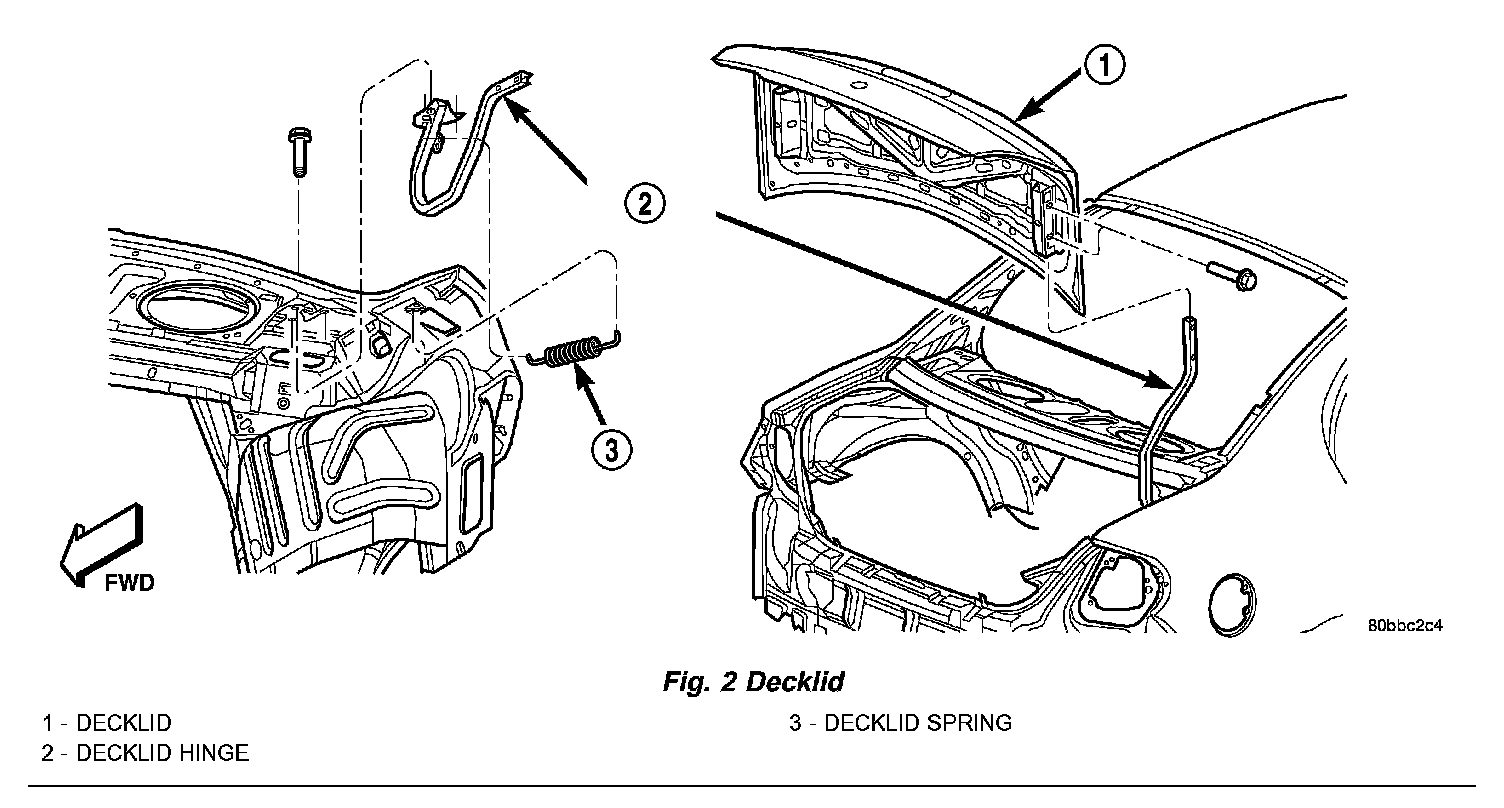

Fig. 2:

5. Remove bolts attaching top of hinge to decklid (Fig. 2).
6. With aid from a helper, remove bolts holding bottom of hinge to decklid.
7. Remove decklid from vehicle.

INSTALLATION

1. Place decklid in position on vehicle.
2. With aid from a helper, install bolts attaching bottom of hinge to decklid.
3. Install bolts attaching top of hinge to decklid.
4. Align decklid to achieve equal spacing on all sides and flush across gaps.
5. Verify decklid operation and sealing.
6. Connect wire connector and release cable on latch.
7. Install clips attaching wire harness and cable to decklid.
