Rear Door Limiter: Service and Repair

CHECK STRAP

REMOVAL

1. Remove door trim panel.
2. Remove bolts attaching check strap to hinge pillar.
3. Remove check strap seal from door end frame.

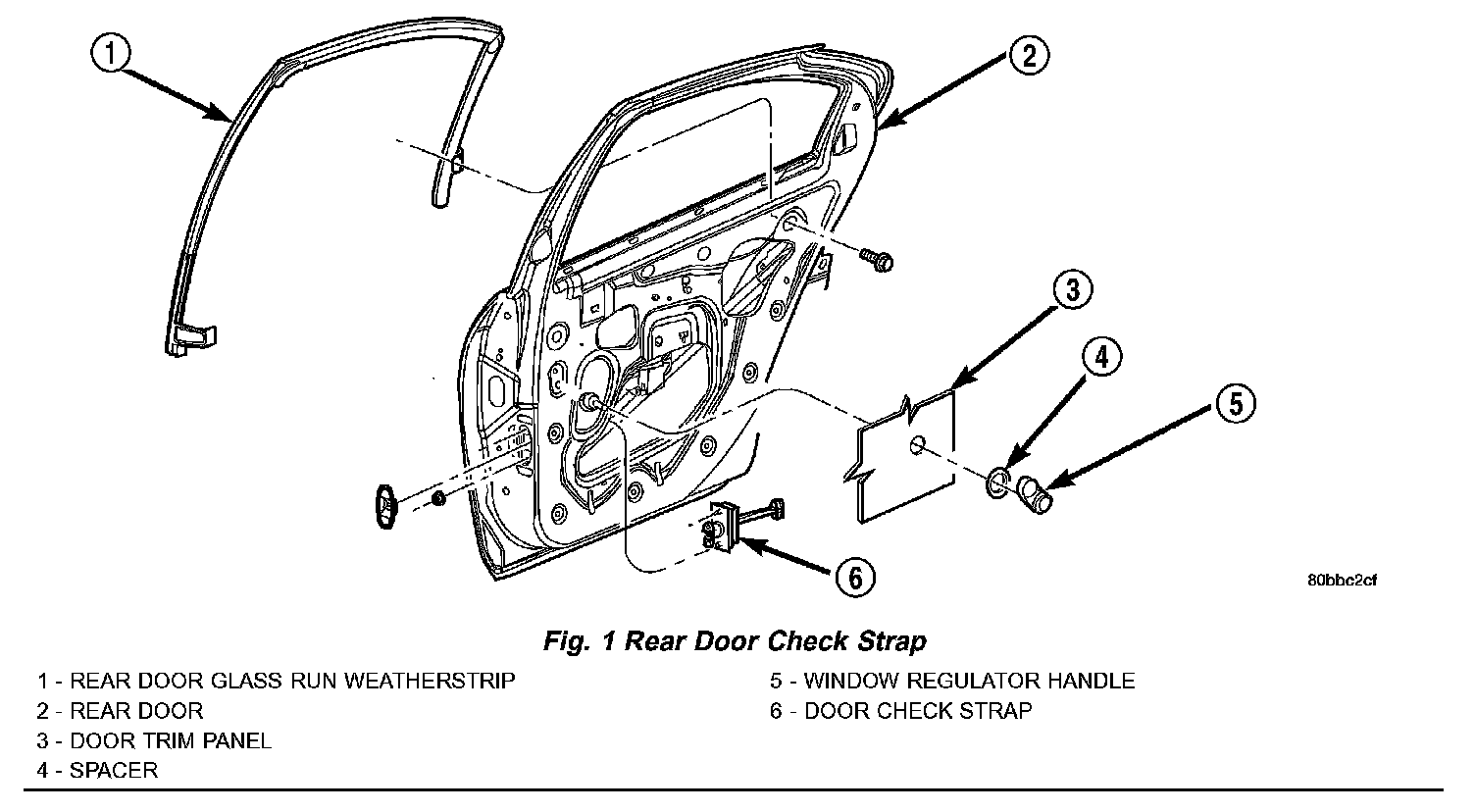

Fig. 1:

4. Remove bolts attaching check strap to door end frame (Fig. 1).
5. Remove check strap from vehicle.

INSTALLATION

CAUTION: Do not close door before adjusting the door latch. Door may fail to open.

1. Position door check strap on vehicle.
2. Install check strap attaching bolts to the door end frame.
3. Install check strap seal. If seal is damaged or worn replace seal.
4. Install check strap attaching bolts to the hinge pillar.
5. Install door trim panel.
