Front Door Limiter: Service and Repair

CHECK STRAP

REMOVAL

1. Remove door trim panel and water dam.
2. Remove bolt attaching check strap to hinge pillar.
3. Remove door speaker.
4. Remove glass run.

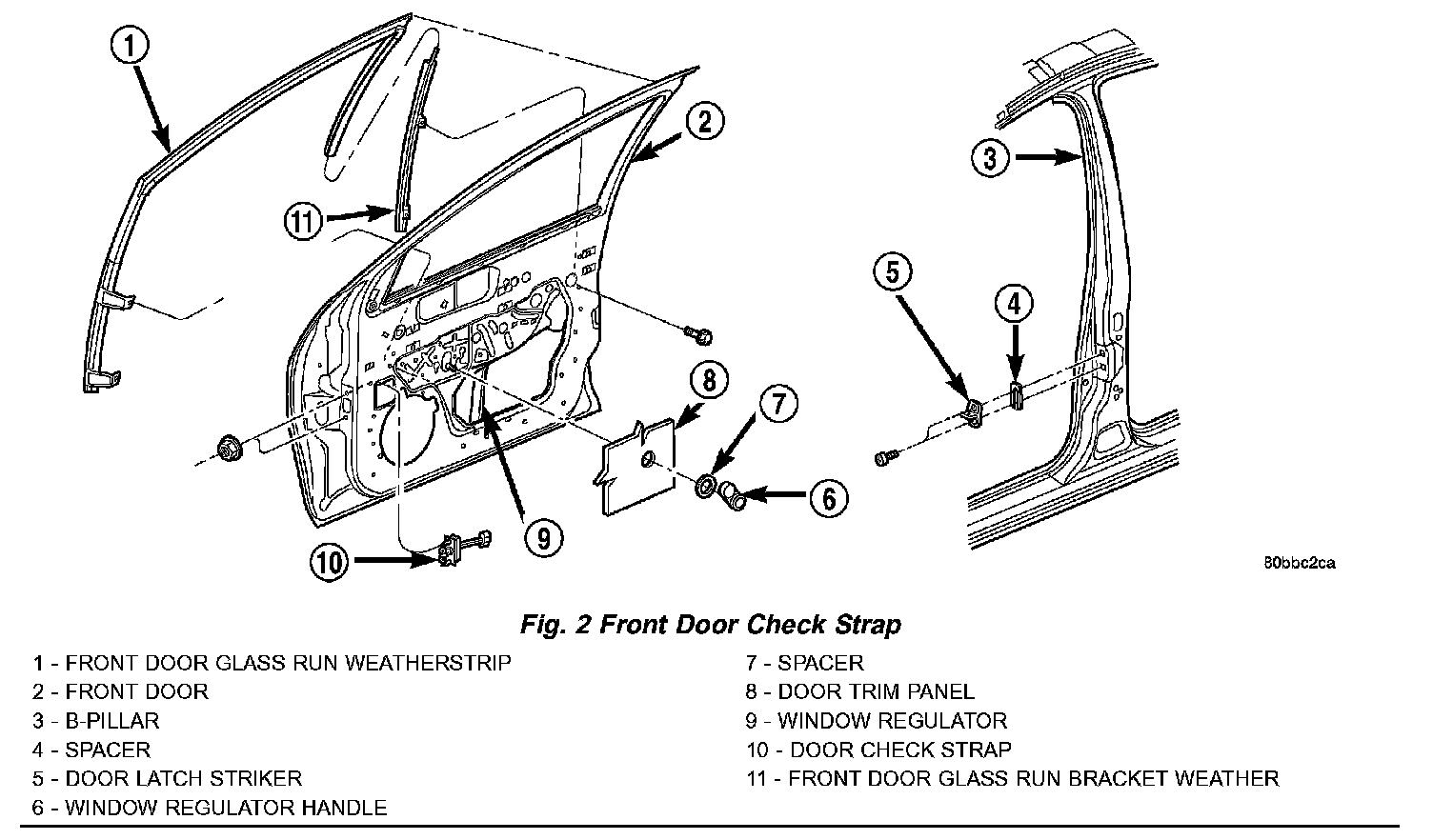

Fig. 2:

5. Remove bolts attaching check strap to door end frame (Fig. 2).
6. Remove check strap from vehicle.

INSTALLATION

NOTE: Do not grease check strap.

1. Position door check on vehicle and install bolts attaching strap to door end frame.
2. Install glass run.
3. Install door speaker, if so equipped.
4. Install bolt attaching door check strap to hinge pillar.
5. Install door trim panel and water dam.
