Front Door Latch: Service and Repair

LATCH

REMOVAL

1. Remove door trim panel and water shield.
2. Close door glass.

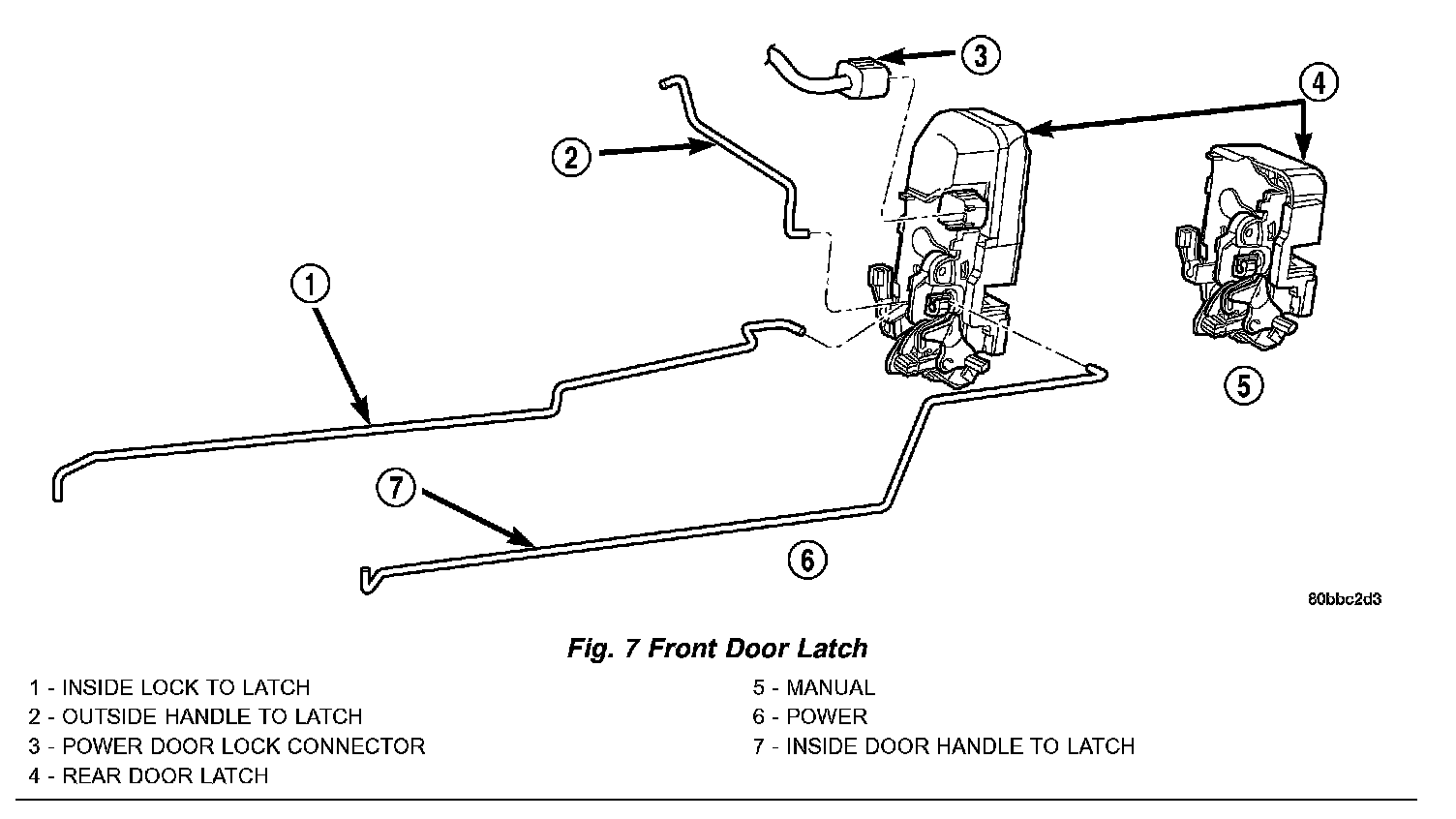

Fig. 7:

3. Disconnect lock and latch rods from door latch (Fig. 7).
4. Disengage wire connector from power door lock motor, if equipped.
5. Remove screws holding latch to door end frame.
6. Remove door latch from vehicle.

INSTALLATION

CAUTION: Do not close door before adjusting the door latch. Door may fail to open.

1. Position door latch inside door and install screws holding latch to door end frame.
2. Engage wire connector into power door lock motor, if so equipped.
3. Connect latch and lock rods to door latch.
4. Install door trim panel and water shield.
5. Adjust door latch using procedure in this section.
