Rear Bumper Reinforcement: Service and Repair

REAR BUMPER REINFORCEMENT

REMOVAL

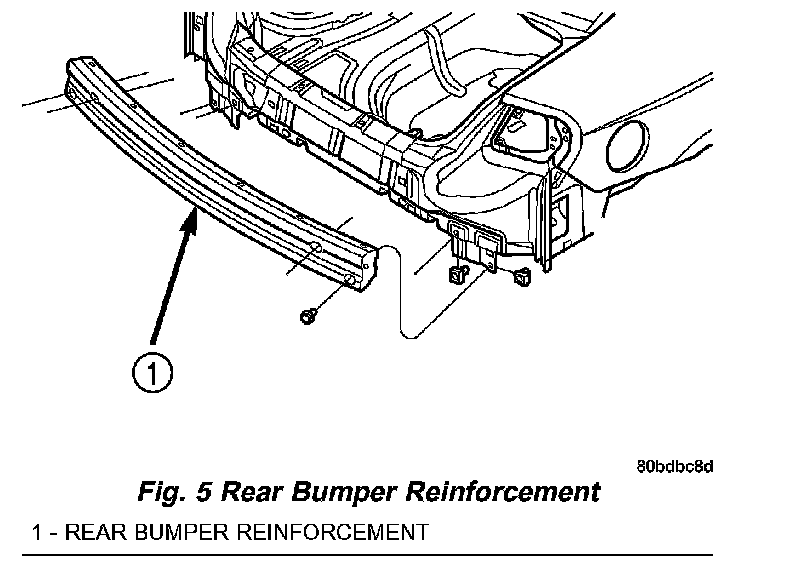

Fig. 5:

1. Remove rear fascia (Fig. 5).
2. Support bumper reinforcement on a suitable lifting device.
3. Remove screws attaching reinforcement to rear closure panel.
4. Remove bumper reinforcement from vehicle.

INSTALLATION

1. Position bumper reinforcement to vehicle.
2. Install screws attaching reinforcement to rear closure panel.
3. Install rear fascia.
