Front Bumper Cover / Fascia: Service and Repair

FRONT FASCIA

REMOVAL

1. Remove splash shield attaching screws.

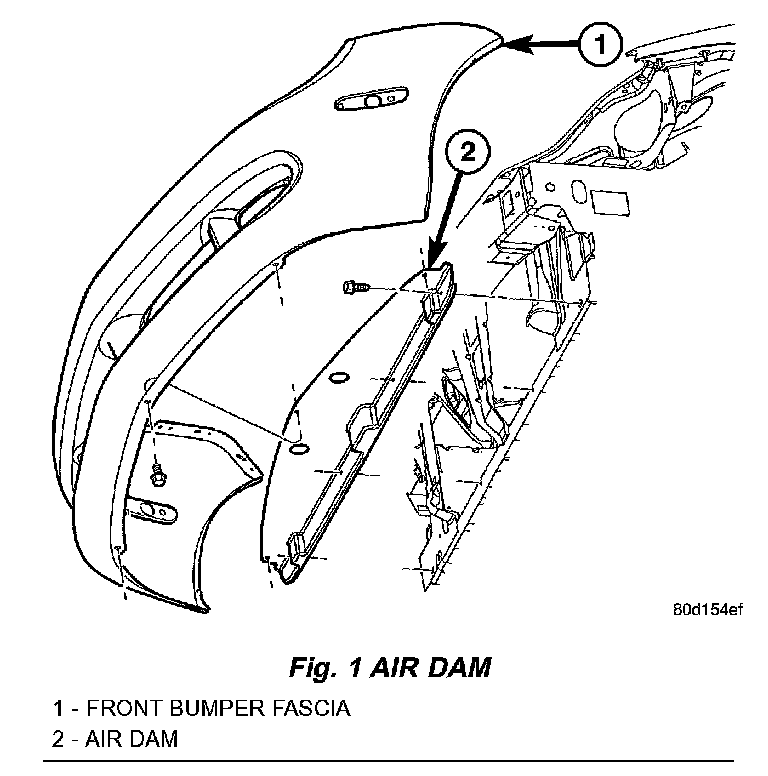

Fig. 1:

2. Remove fasteners attaching air dam to cross-member (Fig. 1).
3. Disconnect fog lamp wiring harness, if equipped.

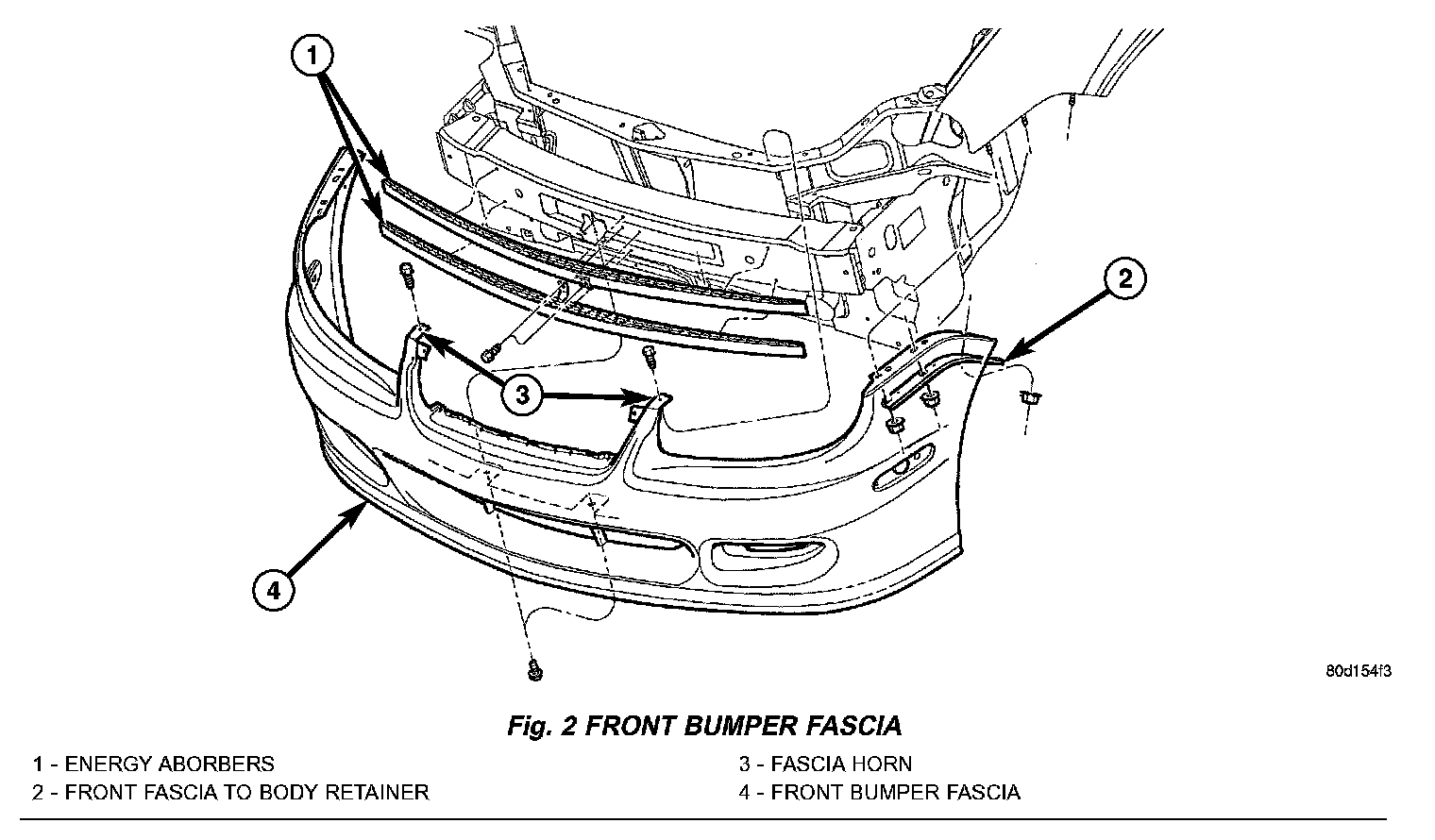

Fig. 2:

4. Remove nuts attaching front bumper fascia to bottom of fender flange (Fig. 2).
5. Remove fascia from vehicle.

INSTALLATION

1. Position fascia on vehicle (Fig. 2).
2. Install nuts attaching front bumper fascia to bottom of fender flange.
3. Attach fascia horns to radiator crossmember.
4. Install air dam to crossmember fasteners (Fig.1).
5. Install splash shield attaching screws.
6. Connect fog lamp wiring harness.
