Rear Shelf Speaker(s) Replacement

REMOVAL

Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable.
2. Remove Rear Seat Cushion, Seat Back, and Rear Shelf Panel.

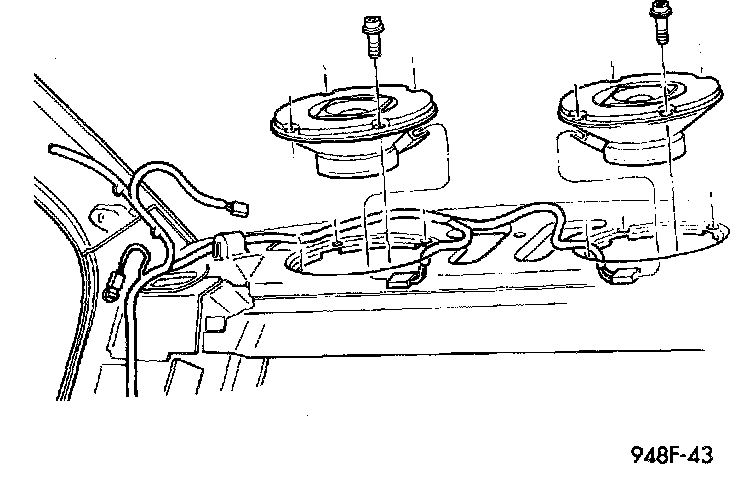

Rear Shelf Speaker(s) Remove/Install:

3. Remove four speaker retaining screws.
4. Remove speaker and disconnect wire connector.
5. Remove speaker(s) from vehicle.

INSTALLATION
For installation reverse the above procedures. Position speakers so that the wire connectors are pointing to the center of vehicle.
