Front Door Speaker Replacement

REMOVAL

Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable.
2. Remove front door trim panel.

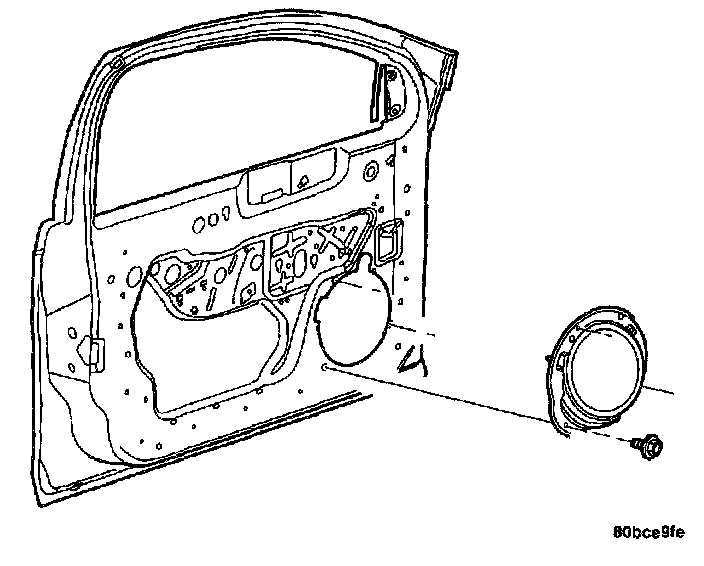

Front Door Speaker Remove/Install:

3. Remove three speaker retaining screws.
4. Remove speaker assembly and disconnect wire connector from rear of speaker.
5. Remove speaker from vehicle.

INSTALLATION
For installation reverse the above procedures.
