Radio/Stereo: Service and Repair

REMOVAL

Battery Negative Cable Remove/Install:

1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel center bezel.

Radio Remove/Install:

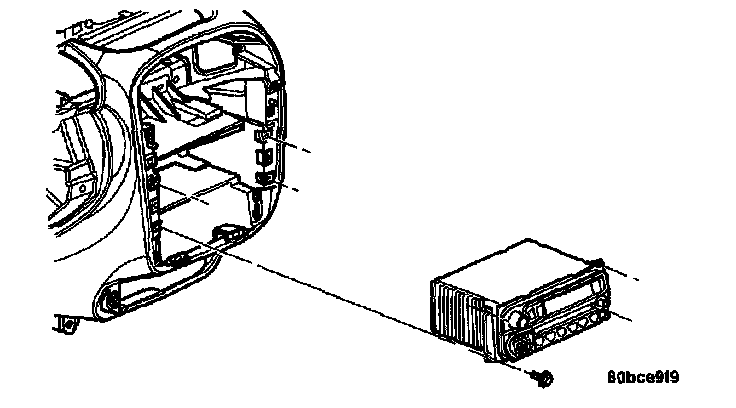

3. Remove four mounting screws on the radio and pull out of instrument panel.
4. Disconnect wiring and antenna cable and remove ground wire from radio.
5. Remove radio from vehicle.

INSTALLATION
For installation reverse the above procedures.
