Antenna: Service and Repair

REMOVAL

Antenna Mast Removal - Typical:

1. Remove antenna mast by unscrewing mast from antenna body.
2. Locate the antenna lead disconnect in the instrument panel wire harness above the right cowl trim panel. Disconnect the antenna cable from the instrument panel cable lead.

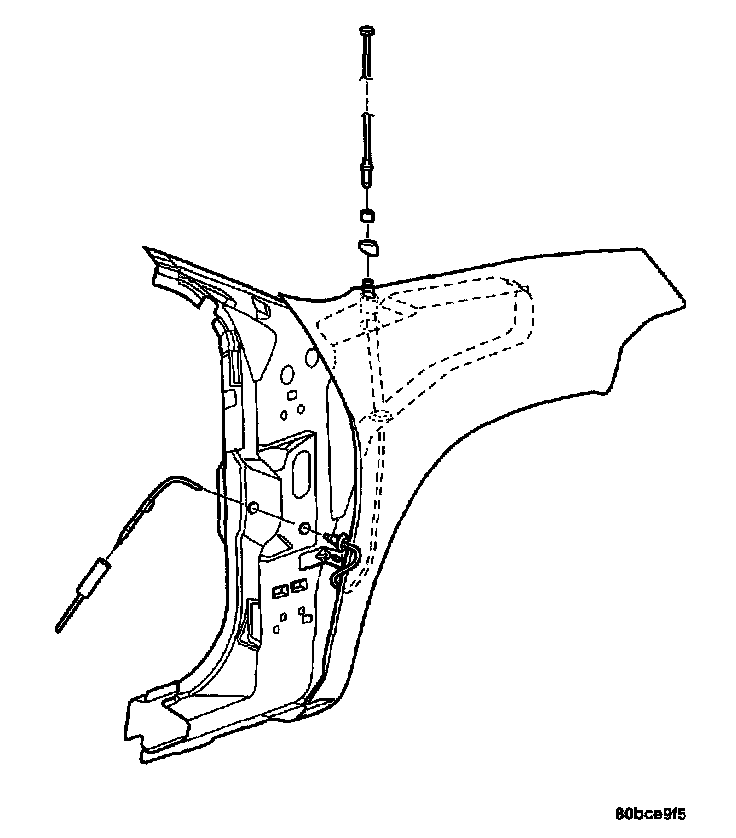

Mast And Antenna Assembly Mounting:

3. Unfasten push pins from the rear of the plastic inner fender shield and move shield to gain access to mounting screws.
4. Remove mounting screws and remove antenna base and cable assembly from under the fender.

INSTALLATION
1. Align antenna adapter tongue with grove in the fender hole and push adapter into fender.
2. From under the fender, push the antenna base and cable assembly through the adapter in the fender. Tighten mounting screws to 7 Nm (75 in. lbs.).
3. Seat the grommet in the side panel and connect the cable to the instrument panel harness connector.
4. Install the plastic inner fender shield.
5. Connect the antenna cable to the instrument panel cable lead.
6. Install right cowl side trim panel.
